Connector Locations

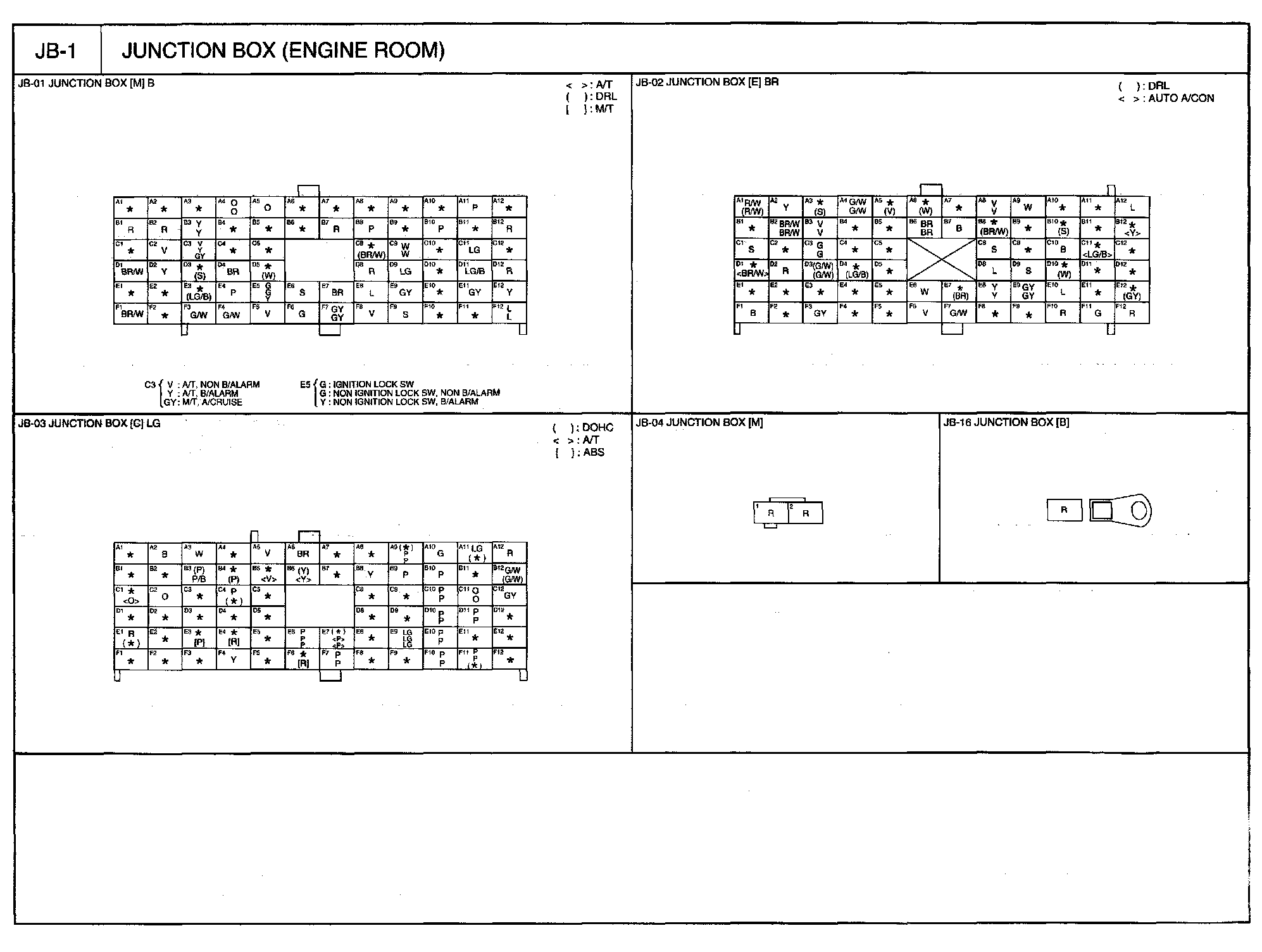

JB-1 - Junction Box (Engine Room) Connectors:
JB-2 - Junction Box (Engine Room) Connectors:
