Engine Control Module: Diagrams

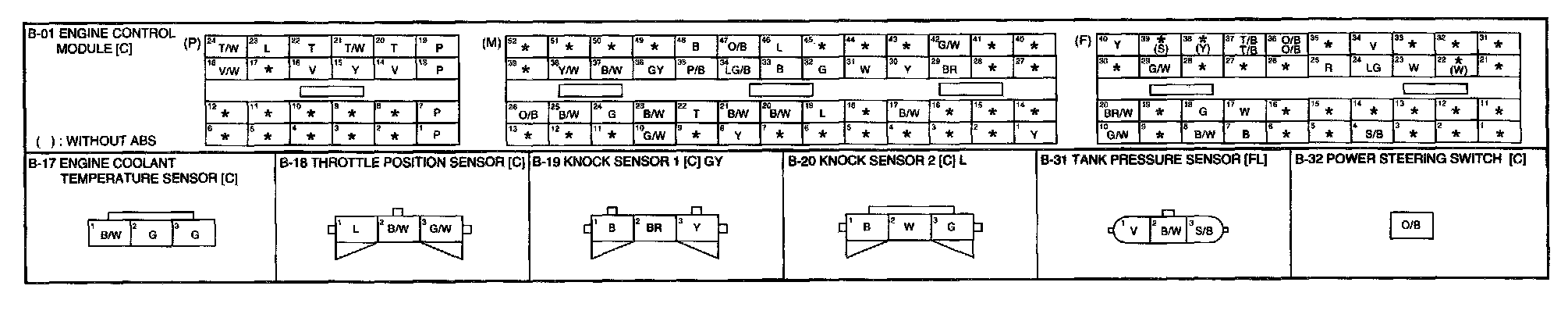

B-1a - Engine Control System (ECM) Connectors:

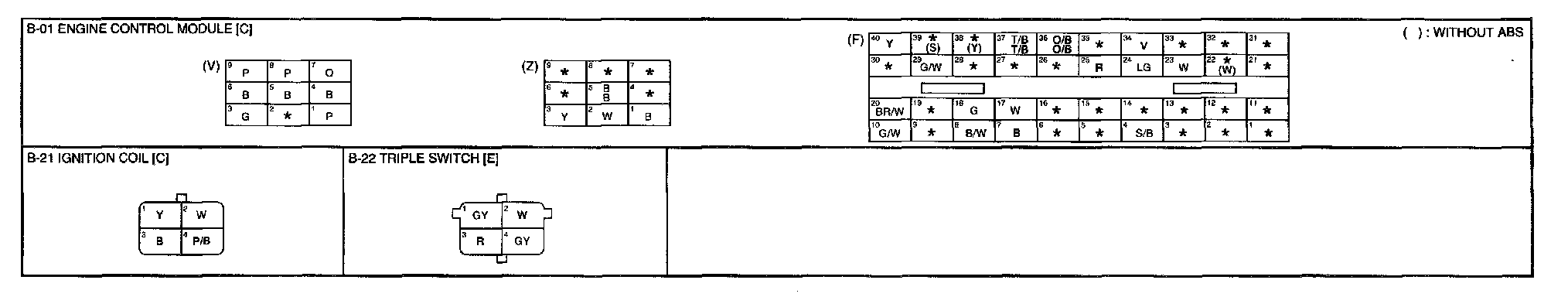

B-1b - Engine Control System (ECM) Connectors:

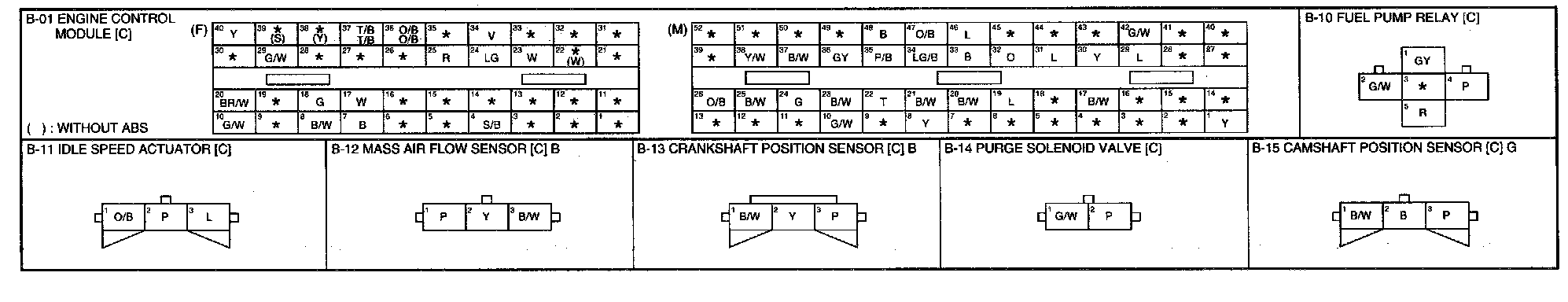

B-1c - Engine Control System (ECM) Connectors:

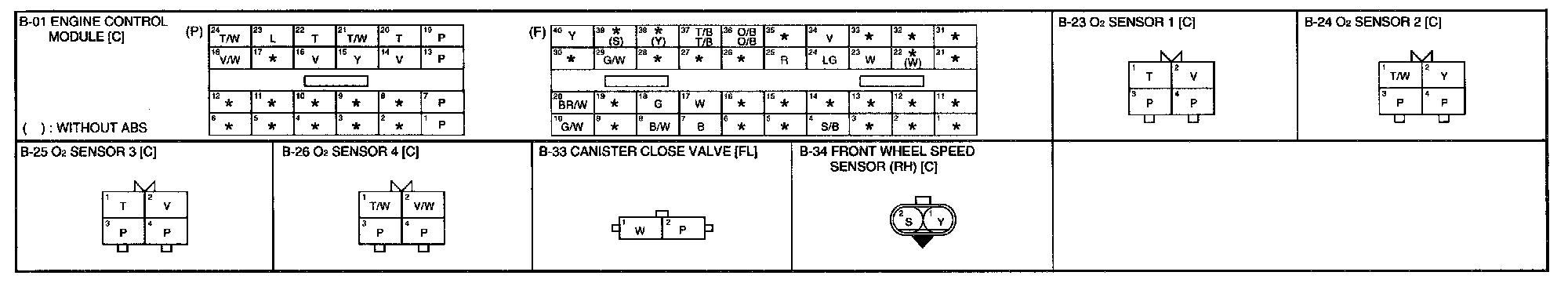

B-1d - Engine Control System (ECM) Connectors:

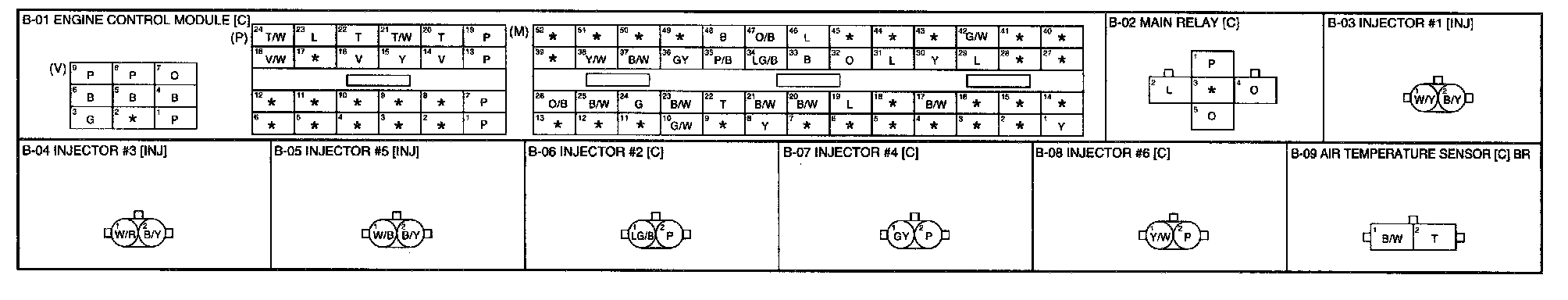

B-1e - Engine Control System (ECM) Connectors:
