Connector Identification

NOTE: Connector views outlined with double lines indicate male connector view. A single line outline indicates female connector view. See Fig 1 -Fig 16 .

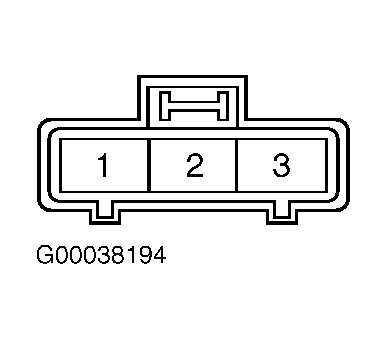

Fig 1: Identifying Air Temperature Sensor Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

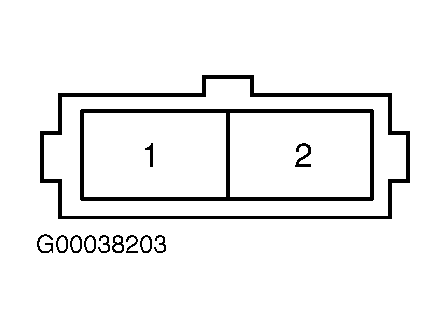

Fig 2: Identifying Cam & Crank Sensor Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

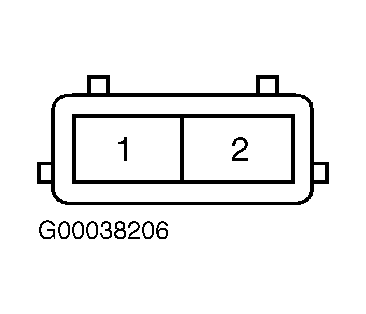

Fig 3: Identifying Canister Close Valve Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

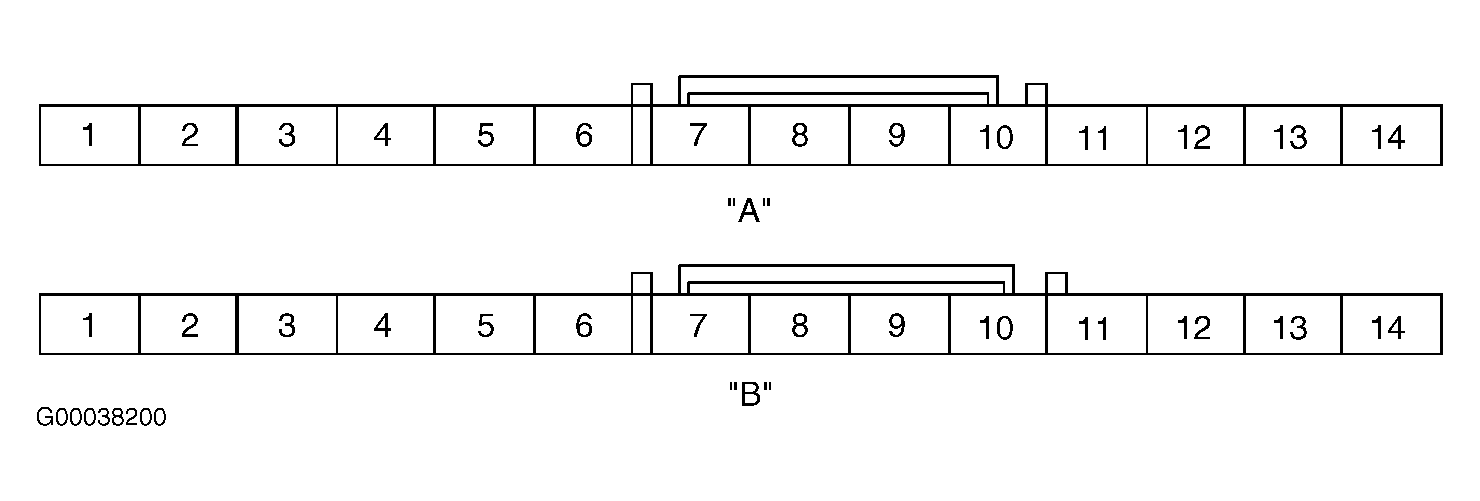

Fig 4: Identifying Engine Control Module Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Identifying Engine Coolant Temperature Sensor

Courtesy of KIA MOTORS AMERICA, INC.

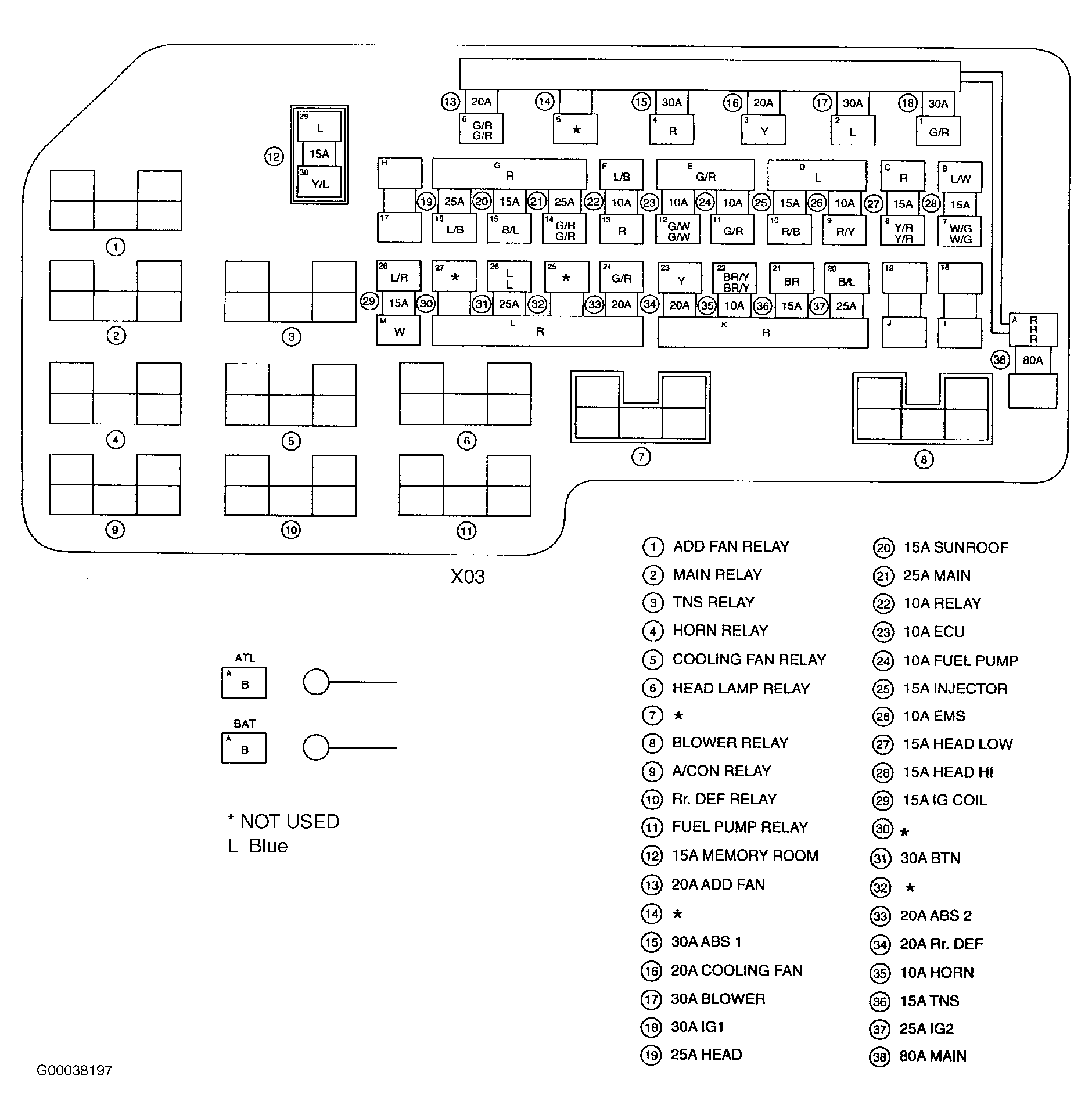

Fig 6: Identifying Engine Compartment Fuse/Relay Box Connector X03 Terminals

Courtesy of KIA MOTORS AMERICA, INC.

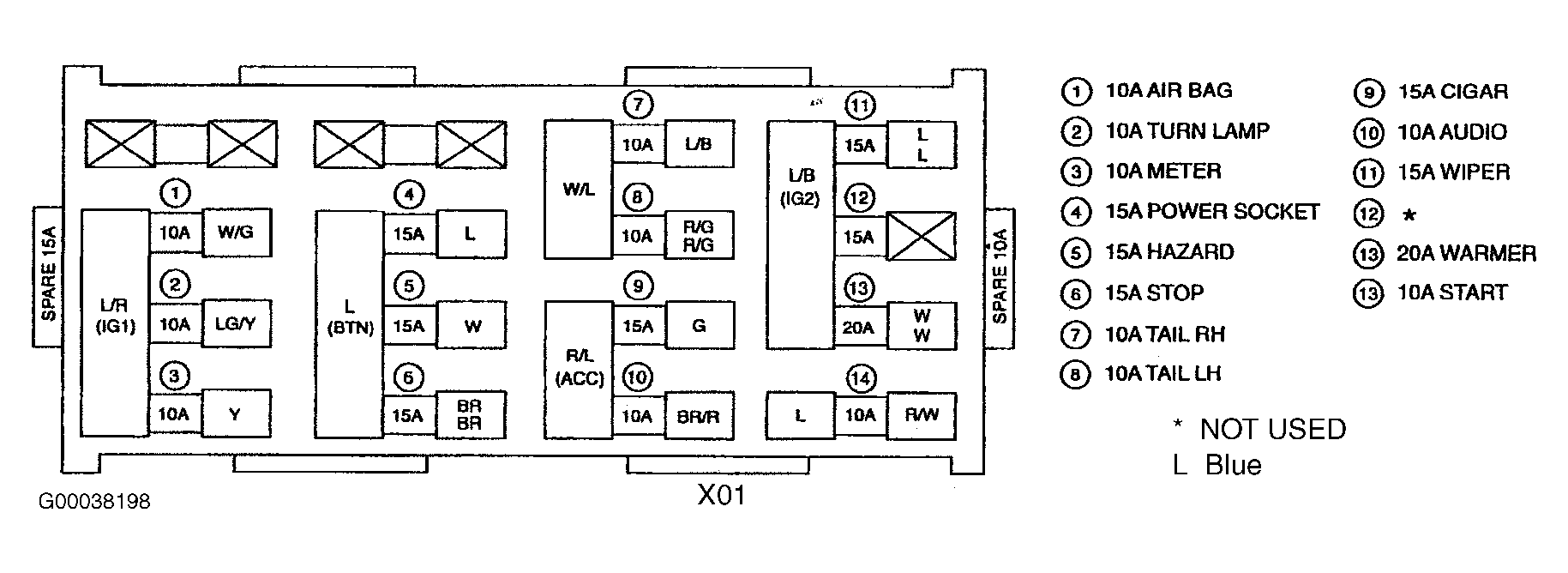

Fig 7: Identifying Passenger Compartment Fuse Box Connector X01 Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Identifying Fuel Tank Pressure Sensor Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 9: Identifying Fuel Pump Unit Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 10: Identifying Fuel Injectors Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 11: Identifying Instrument Cluster Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Identifying Idle Speed Control, Connector Terminals (Mass Air Flow & Knock Sensor Are Similar)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 13: Identifying Purge Solenoid Connector Terminal

Courtesy of KIA MOTORS AMERICA, INC.

Fig 14: Identifying Heated Oxygen Sensor connector Terminals (Front & Rear)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 15: Identifying Throttle Position Sensor Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

Fig 16: Identifying Front Wheel Speed Sensor Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
