Automatic Trans: Overhaul: Accumulators: Disassembly

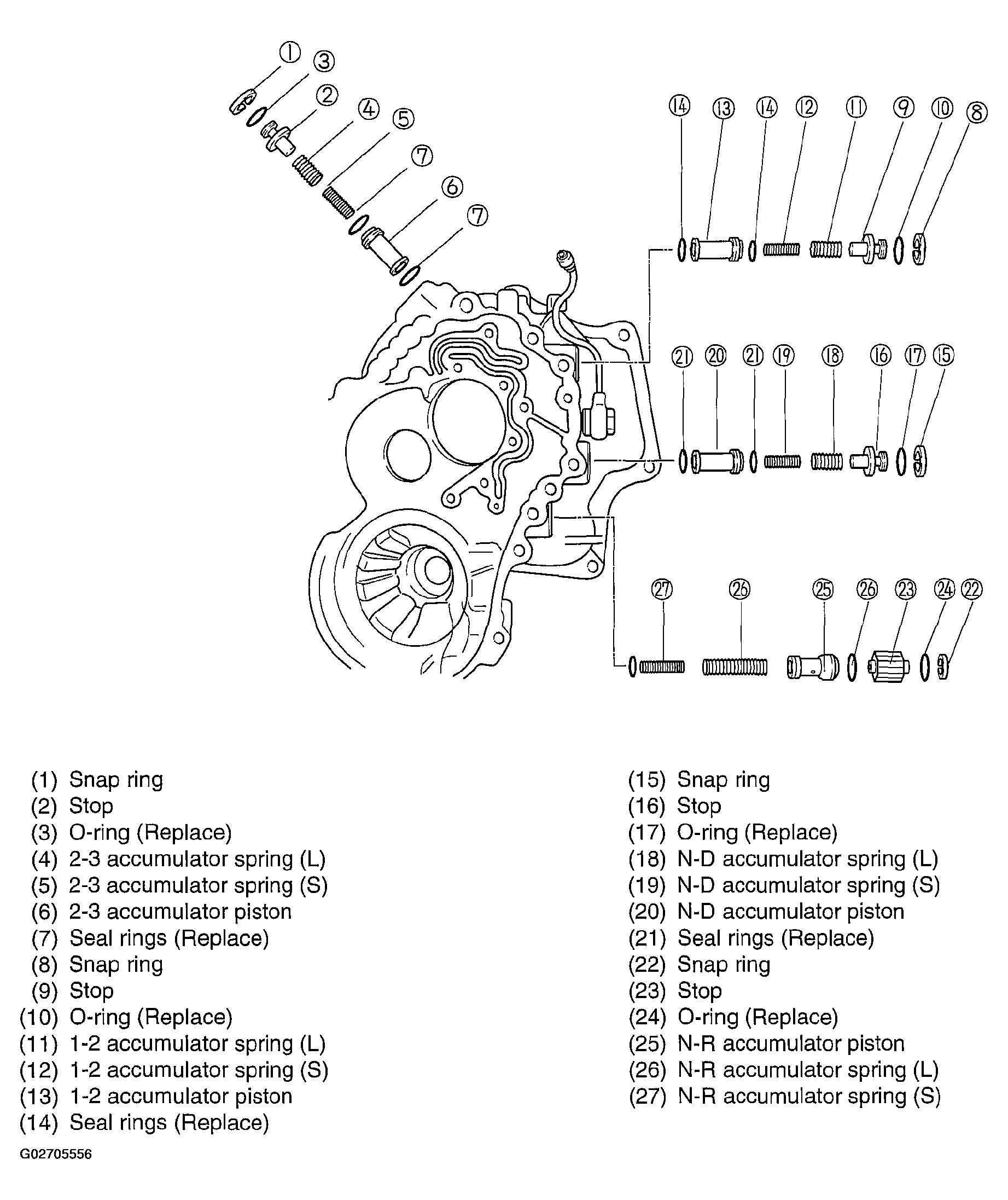

Fig 1: Exploded View Of Accumulators

Remove accumulator pistons and springs from clutch housing by applying compressed air through oil passage as shown in Fig 2 and Fig 3 .

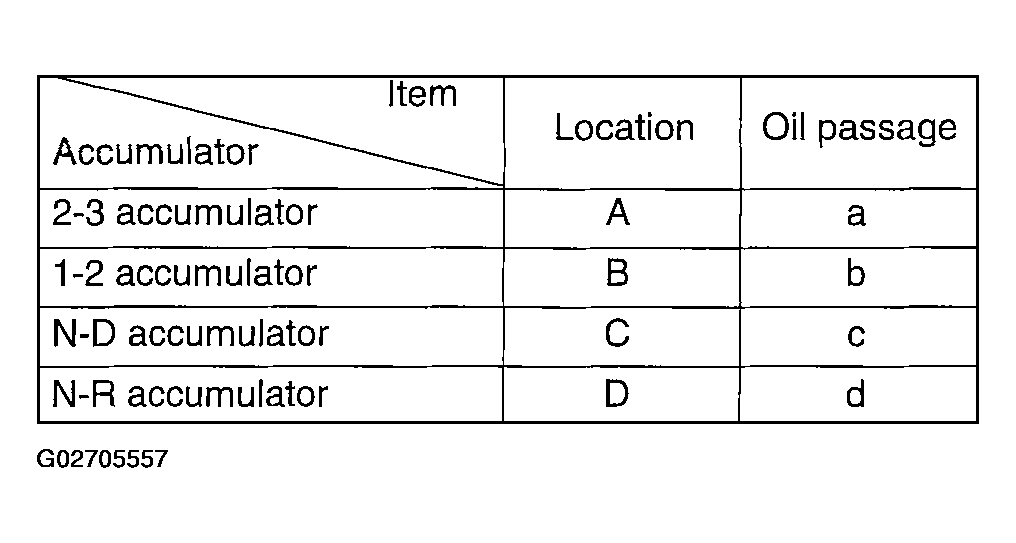

Fig 2: Identifying Accumulator Locations

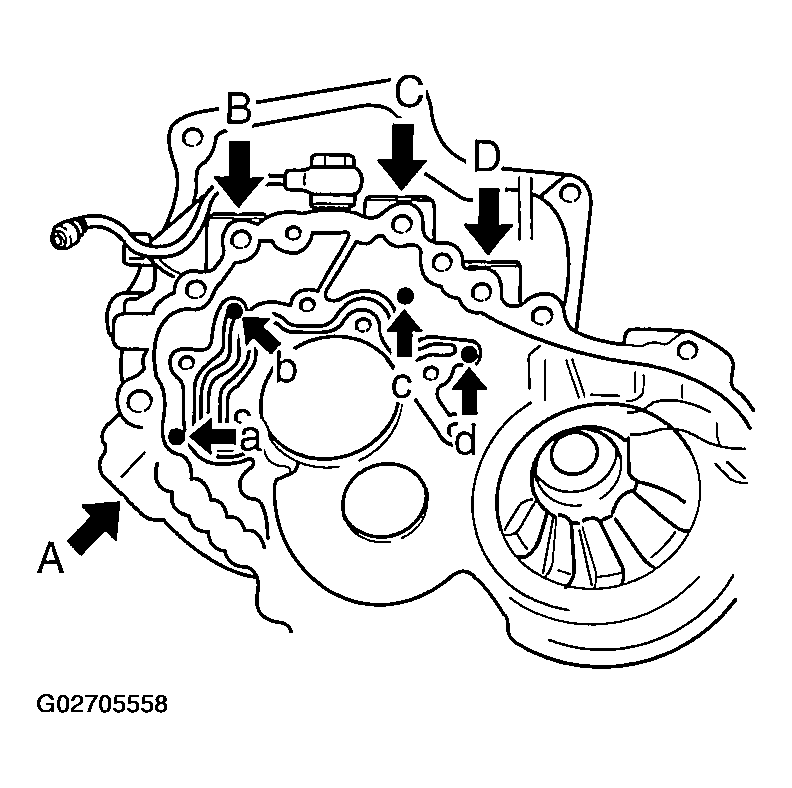

Fig 3: Applying Compressed Air Through Oil Passages
