Bearing Cover Assembly: Disassembly

  1. Remove oil seal.
  2. Remove bearing outer race with a pin punch and hammer as shown in Fig 1 .
  3. Remove O-ring.

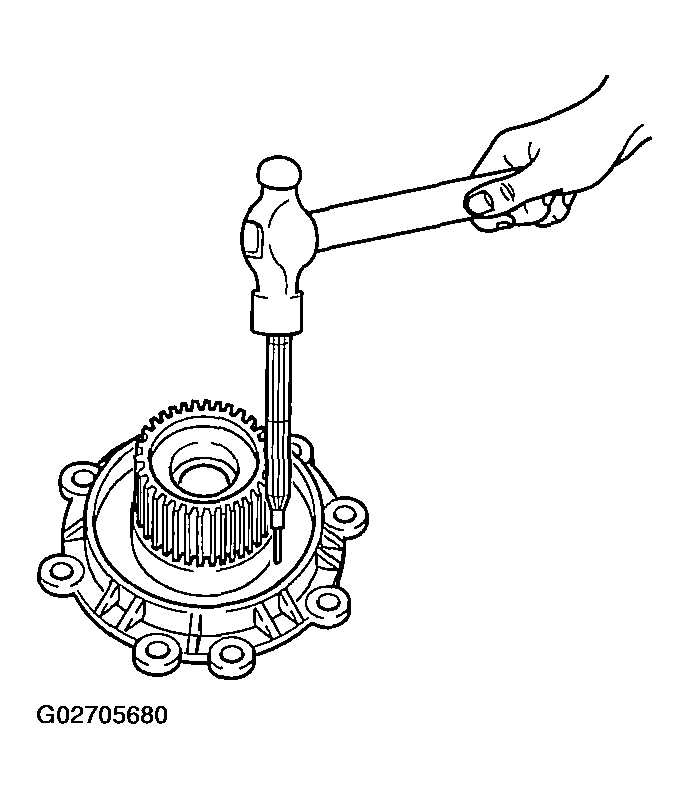

    Fig 1: Removing Bearing Outer Race
    G02705680
