Bearing Cover Assembly: Reassembly

  1. Apply ATF to new O-ring and install O-ring.
  2. Press bearing outer race into the cover.

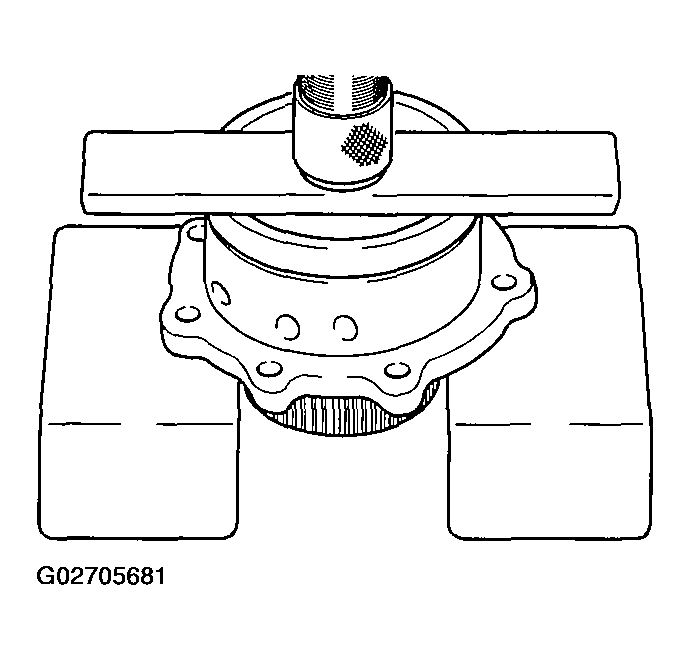

    Fig 1: Pressing Bearing Outer Race Into Cover
    G02705681
  3. Press new oil seal into bearing cover with SST(0K201 190017).

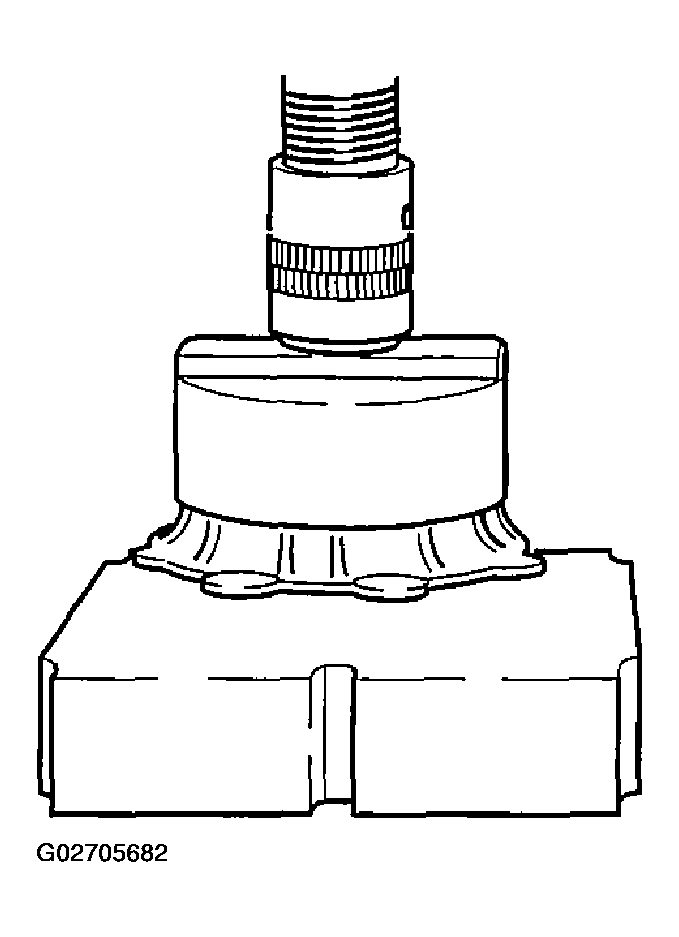

    Fig 2: Installing Oil Seal Into Bearing Cover
    G02705682
