Control Valve Body: Disassembly

NOTE:
  • Be especially careful when handling control valve because it consists of most precise and delicate parts of transaxle.
  • Neatly arrange removed parts to avoid confusing similar parts.
  • Clean removed parts with cleaning solvent, and dry them with compressed air. Clean out all holes and passages with compressed air.

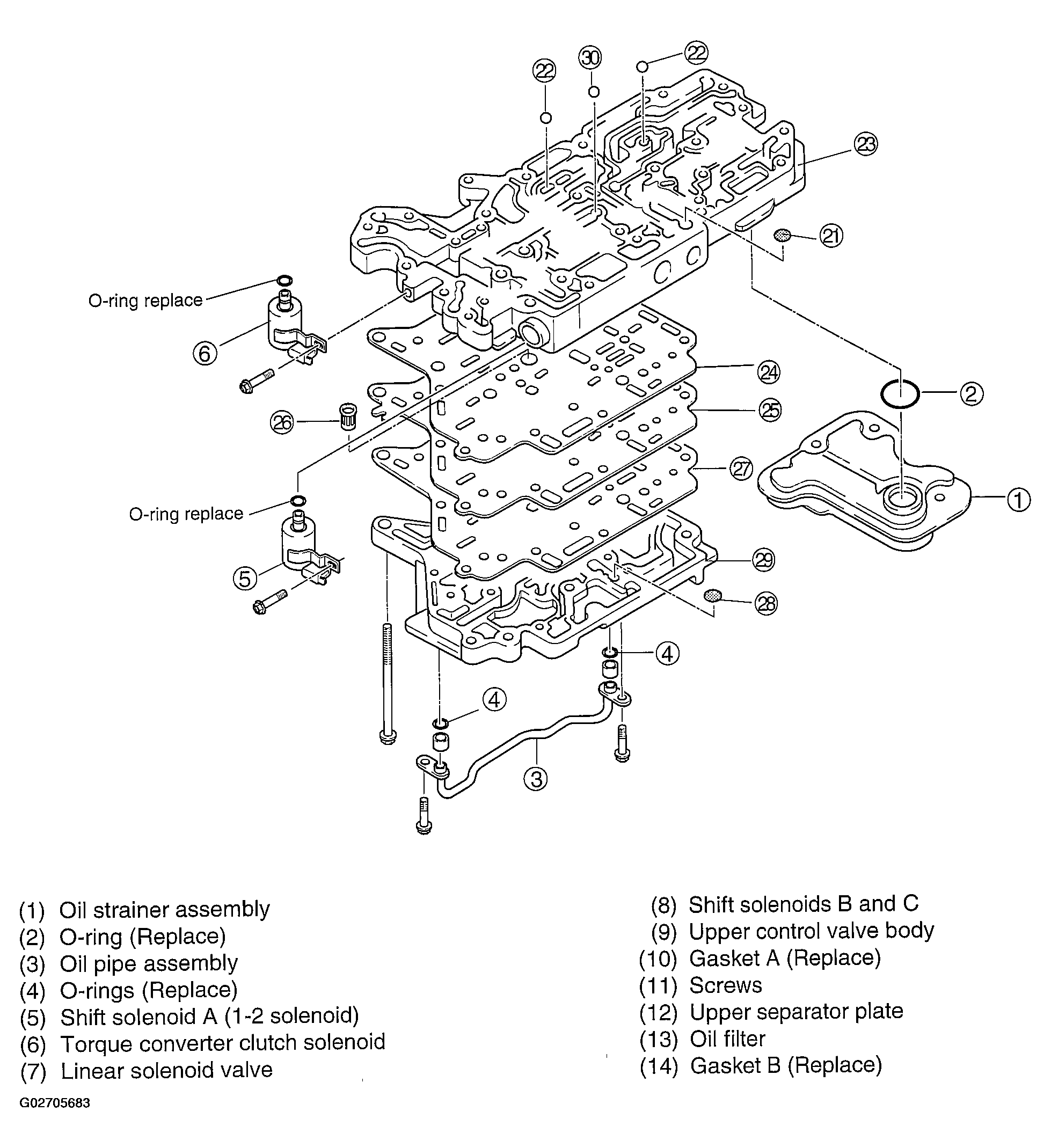

Fig 1: Exploded View Of Control Valve Assembly (1 Of 2)
G02705683

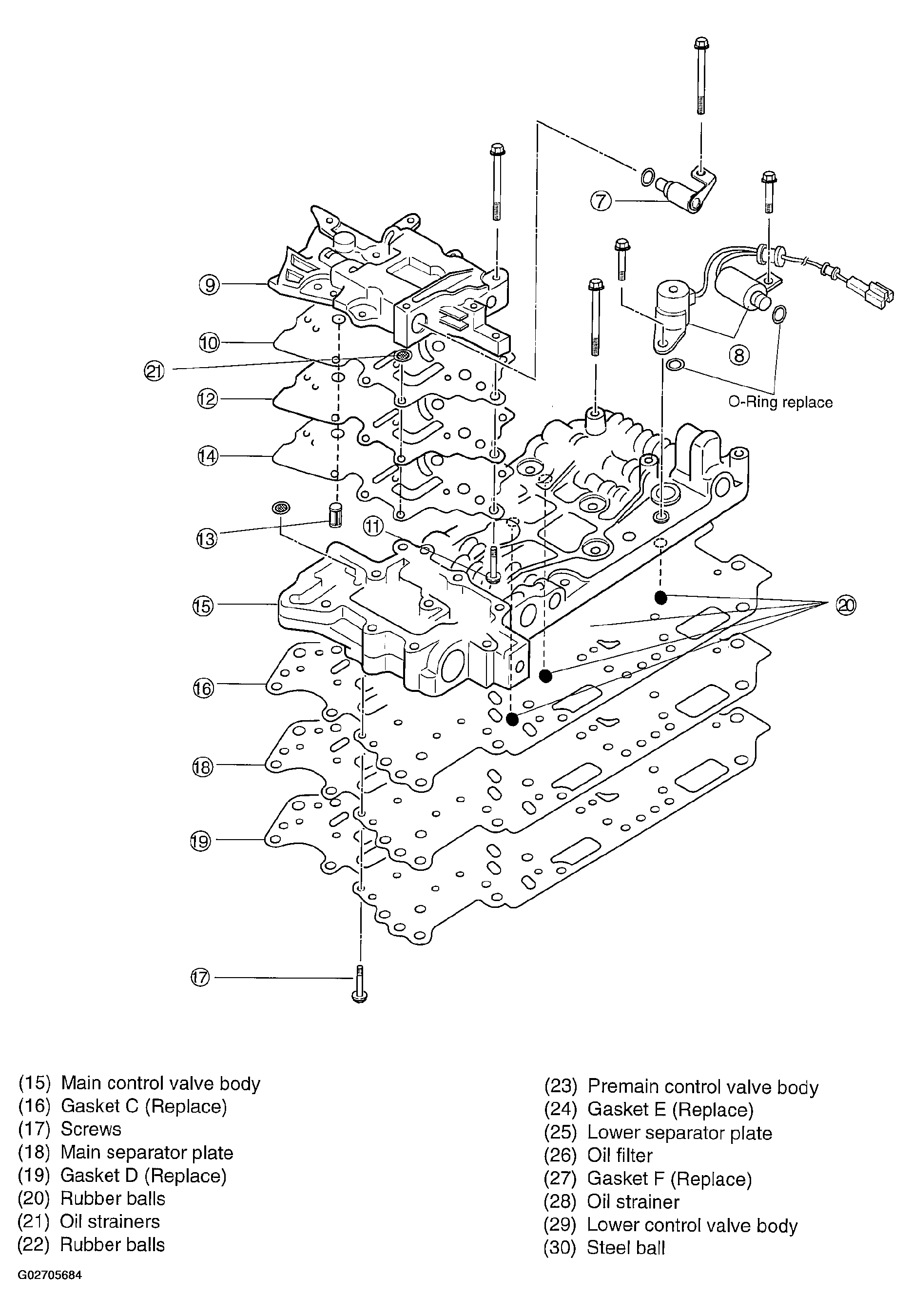

Fig 2: Exploded View Of Control Valve Assembly (2 Of 2)
G02705684
  1. Remove oil pipe assembly.

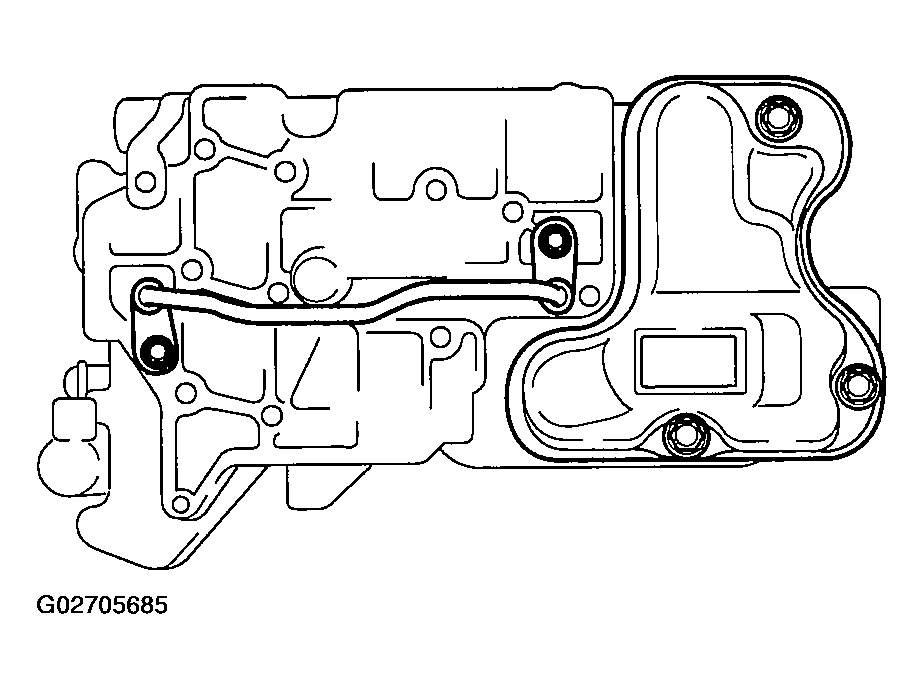

    Fig 3: Removing Oil Pipe Assembly
    G02705685
  2. Remove O-rings from oil pipe assembly.
  3. Remove shift solenoid "A".

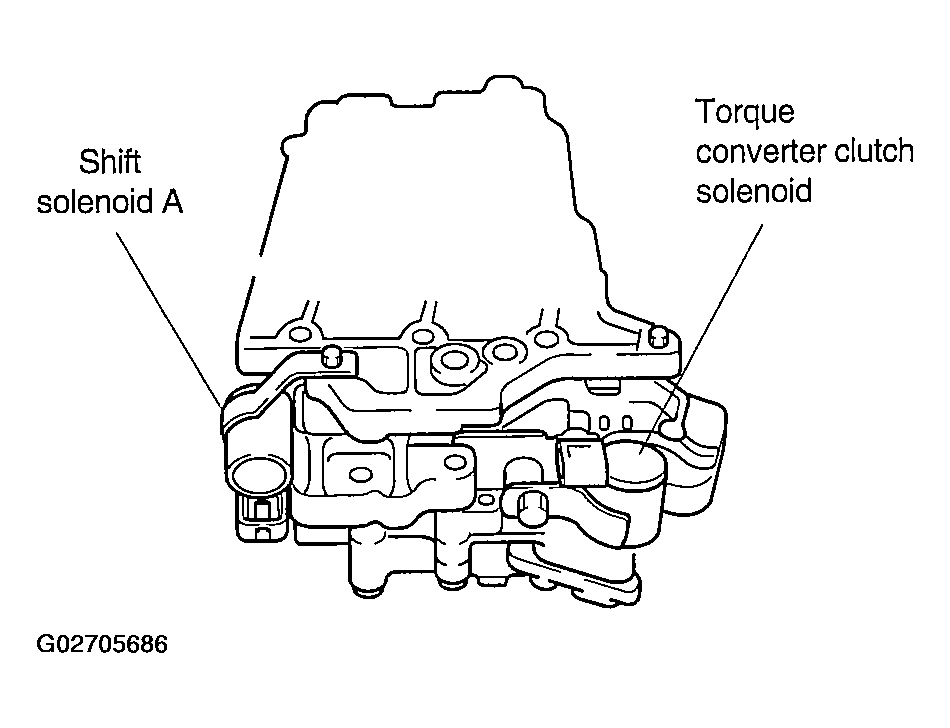

    Fig 4: Removing Torque Converter Clutch Solenoid & Shift Solenoid "A"
    G02705686
  4. Remove torque converter clutch solenoid valve and oil strainer.
  5. Remove shift solenoids "B" and "C".

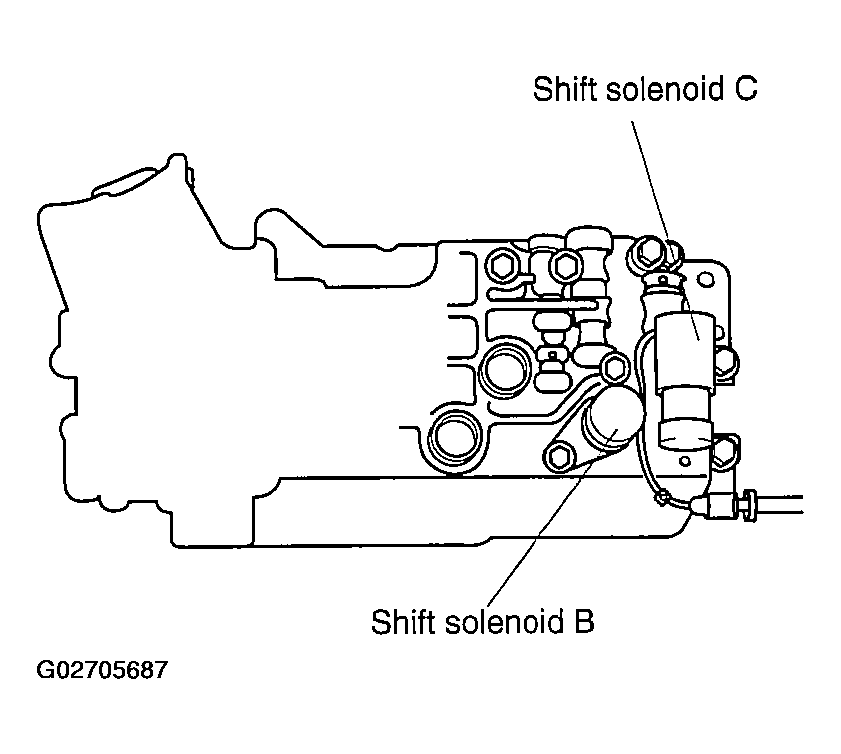

    Fig 5: Removing Shift Solenoids "B" & "C"
    G02705687
  6. Remove linear solenoid valve.
    Fig 6: Removing Linear Solenoid Valve
    G02705688
  7. Remove nine upper control valve body bolts.

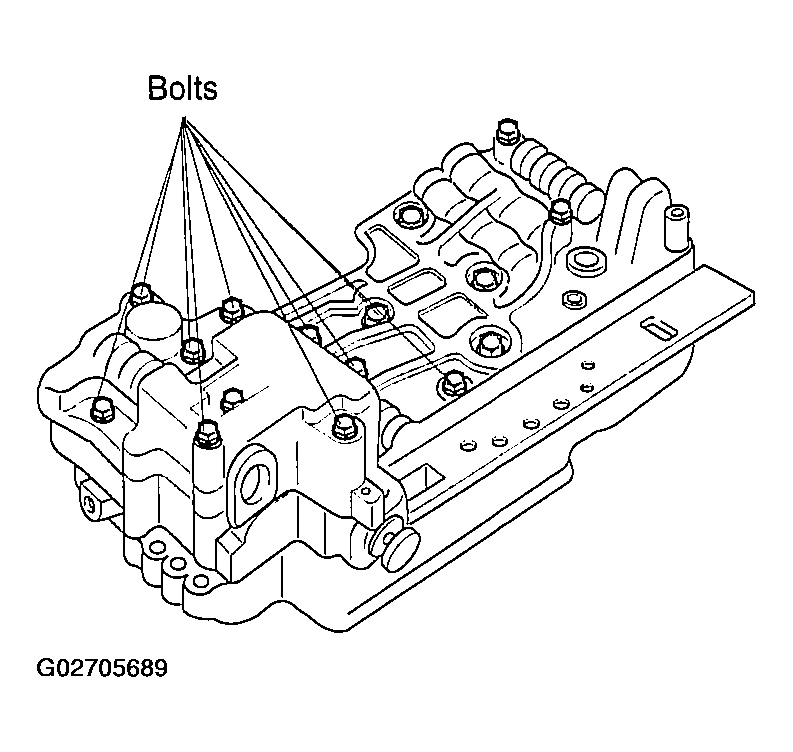

    Fig 7: Removing Upper Control Valve Body Bolts (9)
    G02705689
  8. Remove two screws from upper control valve body.
  9. Remove gasket "B", upper separator plate, oil filter, oil strainer and gasket "A".

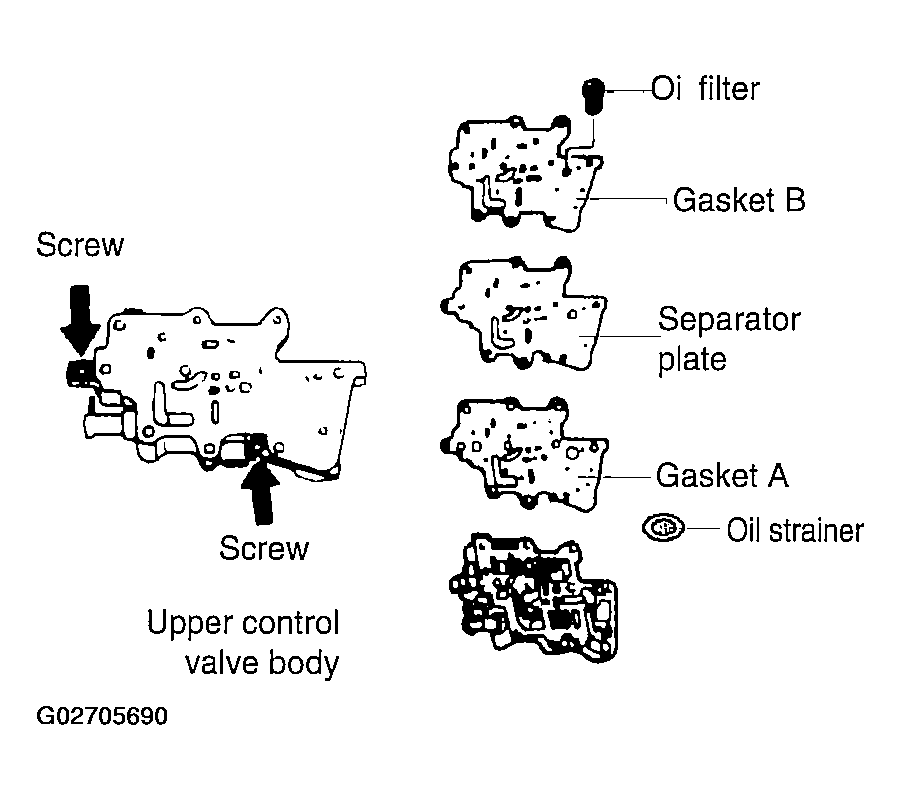

    Fig 8: Removing Upper Control Valve Body Components
    G02705690
  10. Remove seven main control valve body bolts then remove main control valve.

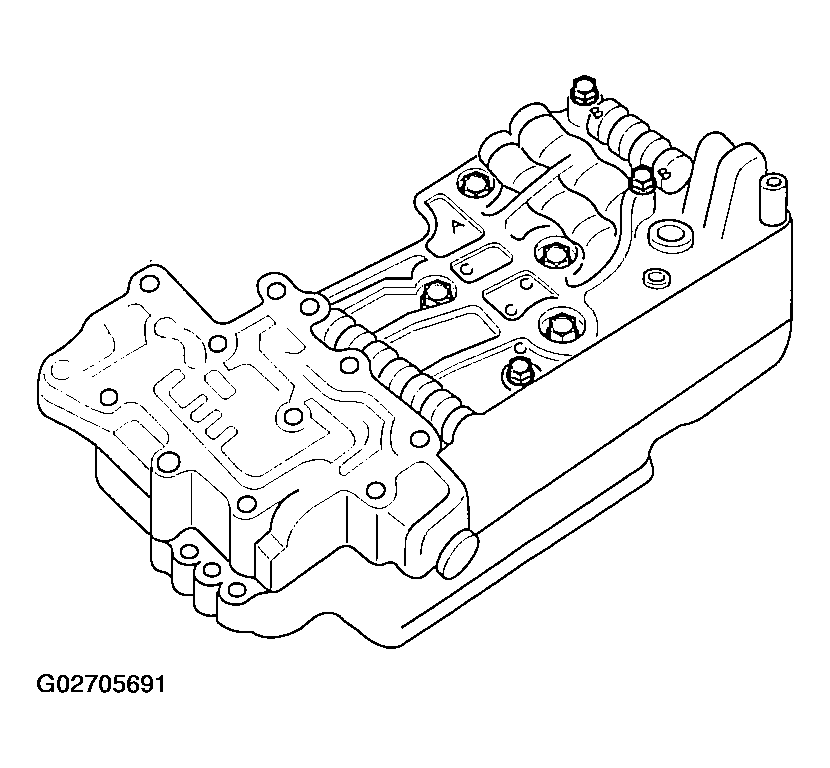

    Fig 9: Removing Main Control Valve Body Bolts (7)
    G02705691
  11. Remove gasket "D", main separator plate, and gasket "C".

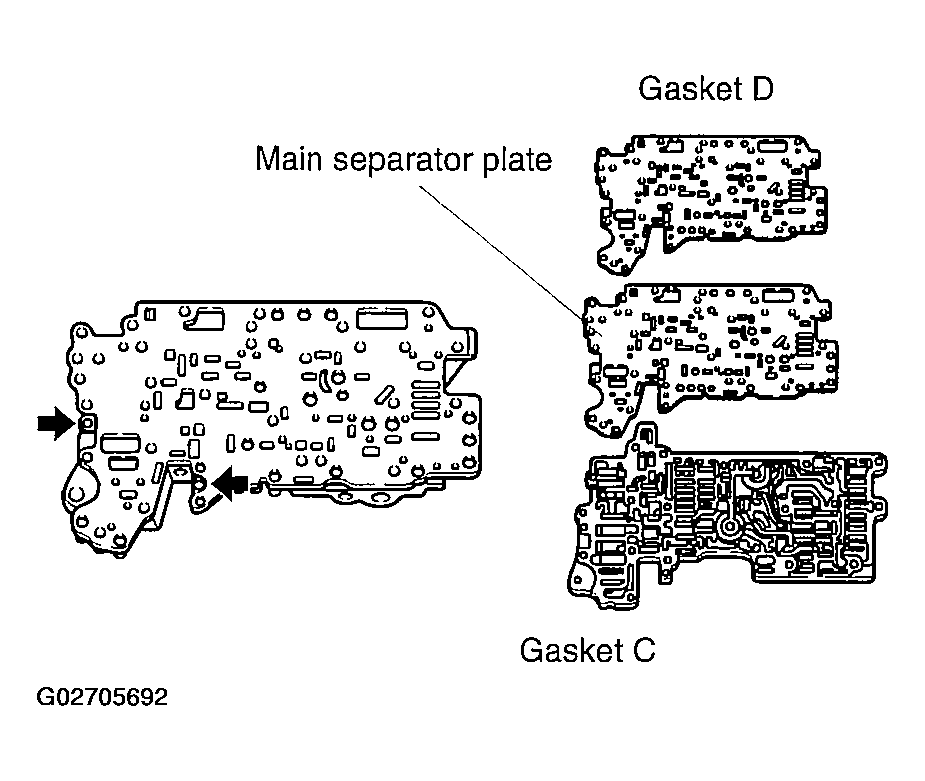

    Fig 10: Removing Gasket "D", Main Separator Plate & Gasket "C"
    G02705692
  12. Remove four rubber balls from main control valve body.

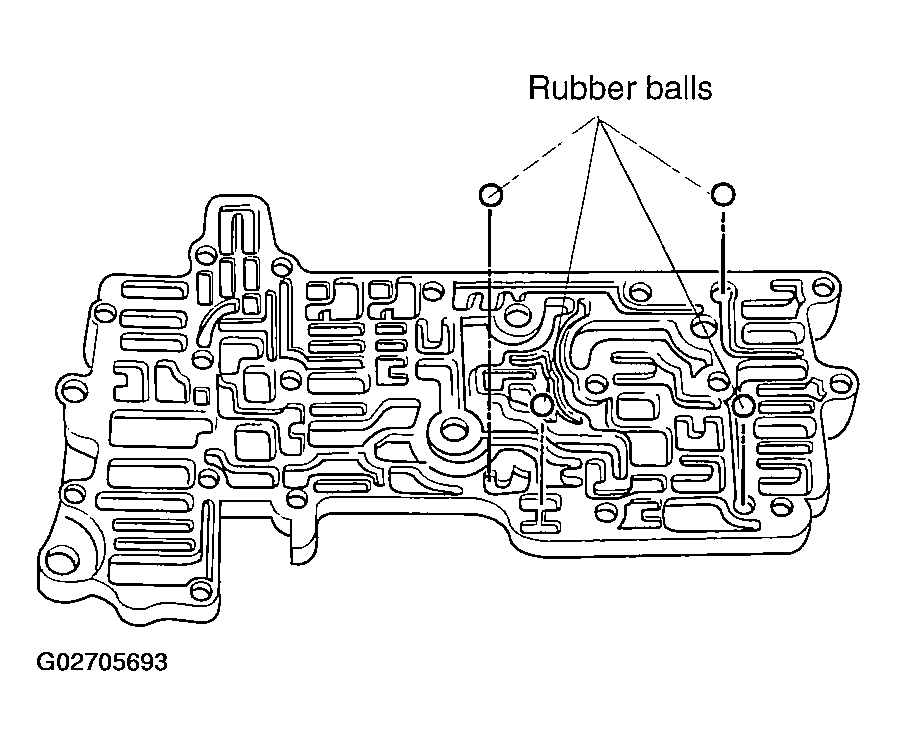

    Fig 11: Removing Rubber Balls From Main Control Valve Body
    G02705693
  13. Remove oil strainer, steel ball and two rubber balls from premain control valve body.

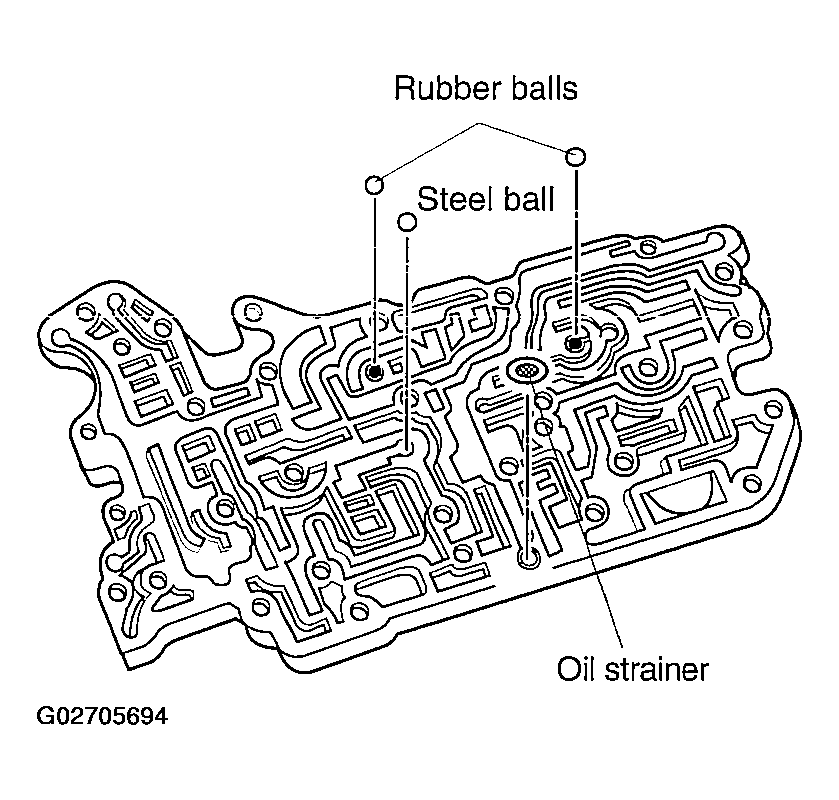

    Fig 12: Removing Oil Strainer, Steel Ball & Rubber Balls (2) From Premain Control Valve Body
    G02705694
  14. Remove six bolts then remove premain control valve body.

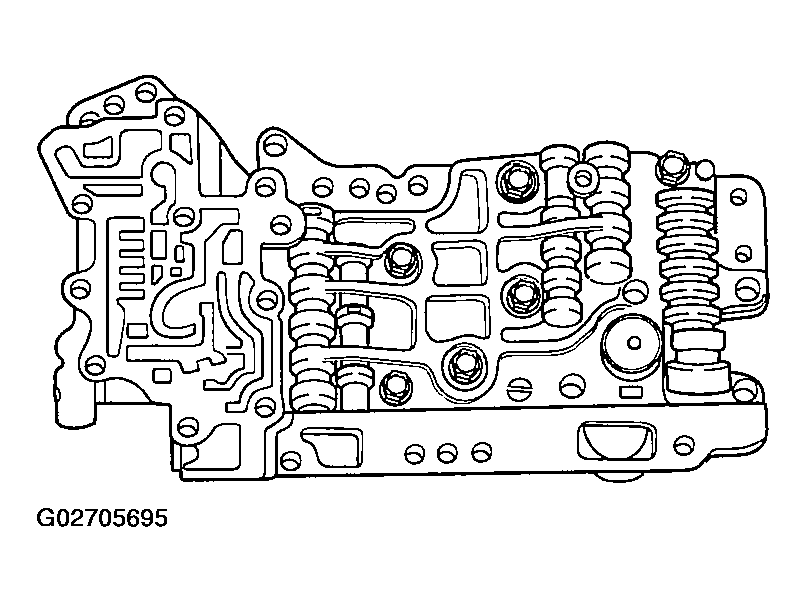

    Fig 13: Removing Bolts (6) For Premain Control Valve Body Removal
    G02705695
  15. Remove gasket "E", lower separator plate, oil filter, and gasket "F".

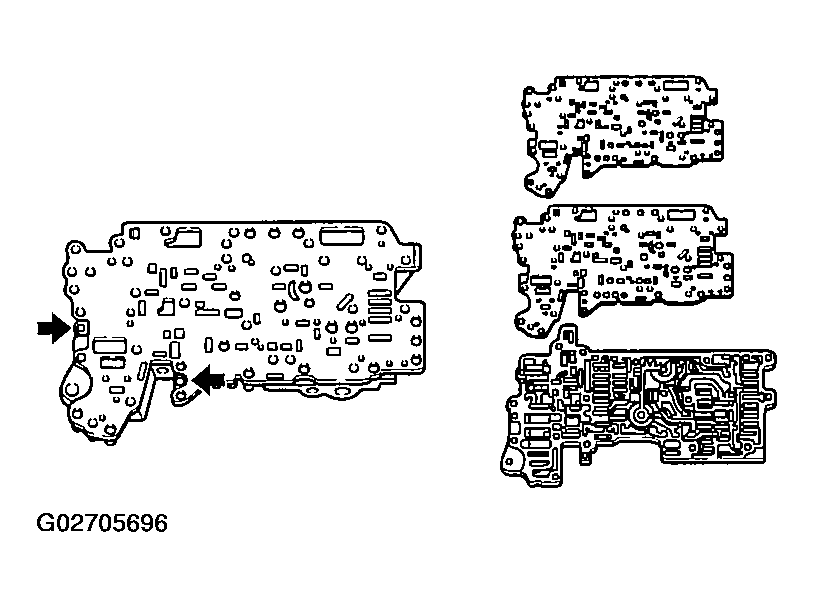

    Fig 14: Removing Premain Control Valve Body Components
    G02705696
  16. Remove oil strainer from lower control valve body.

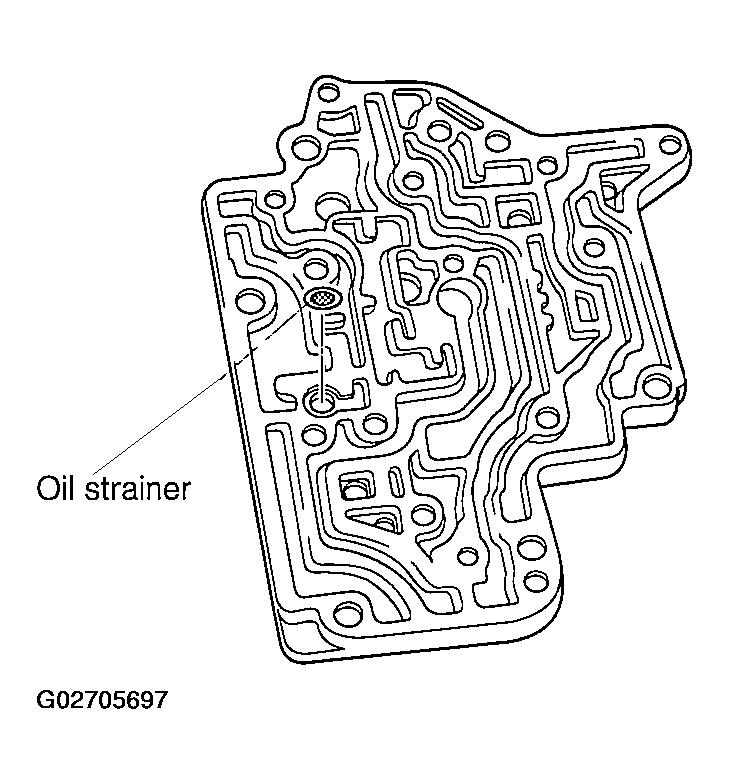

    Fig 15: Removing Oil Strainer From Lower Control Valve Body
    G02705697
