Transaxle Components

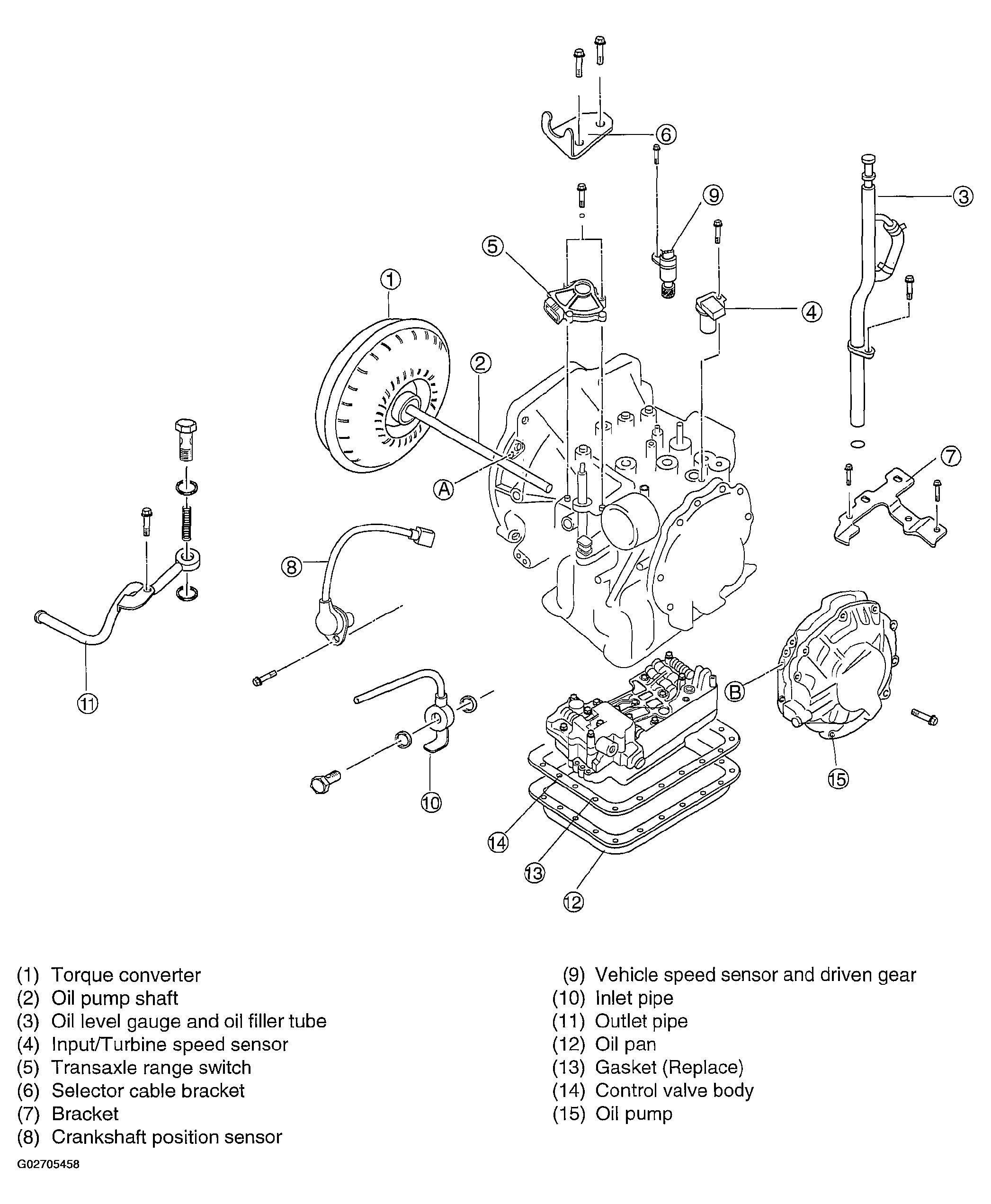

Fig 1: Transaxle Components (1 Of 4)
G02705458

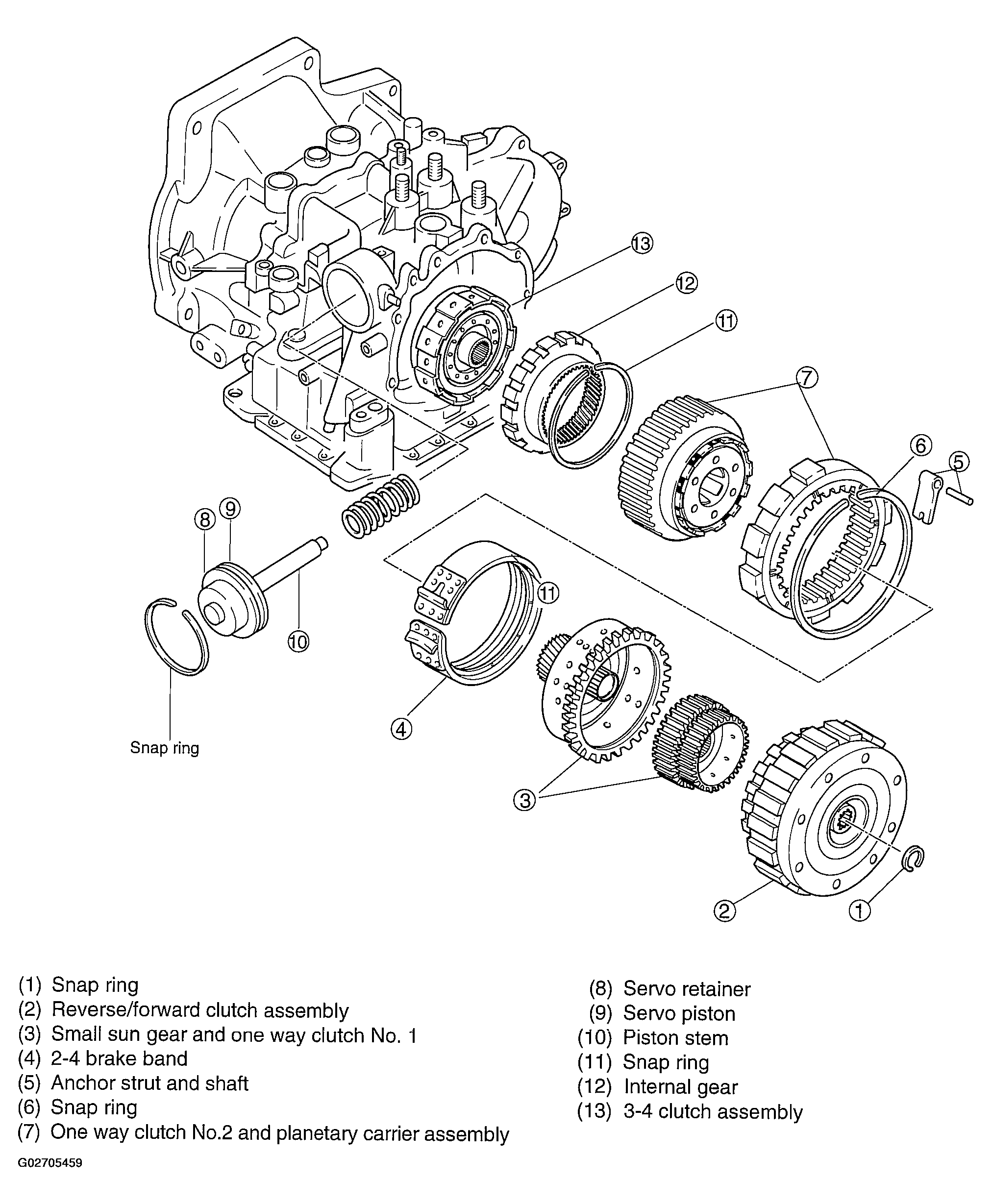

Fig 2: Transaxle Components (2 Of 4)
G02705459

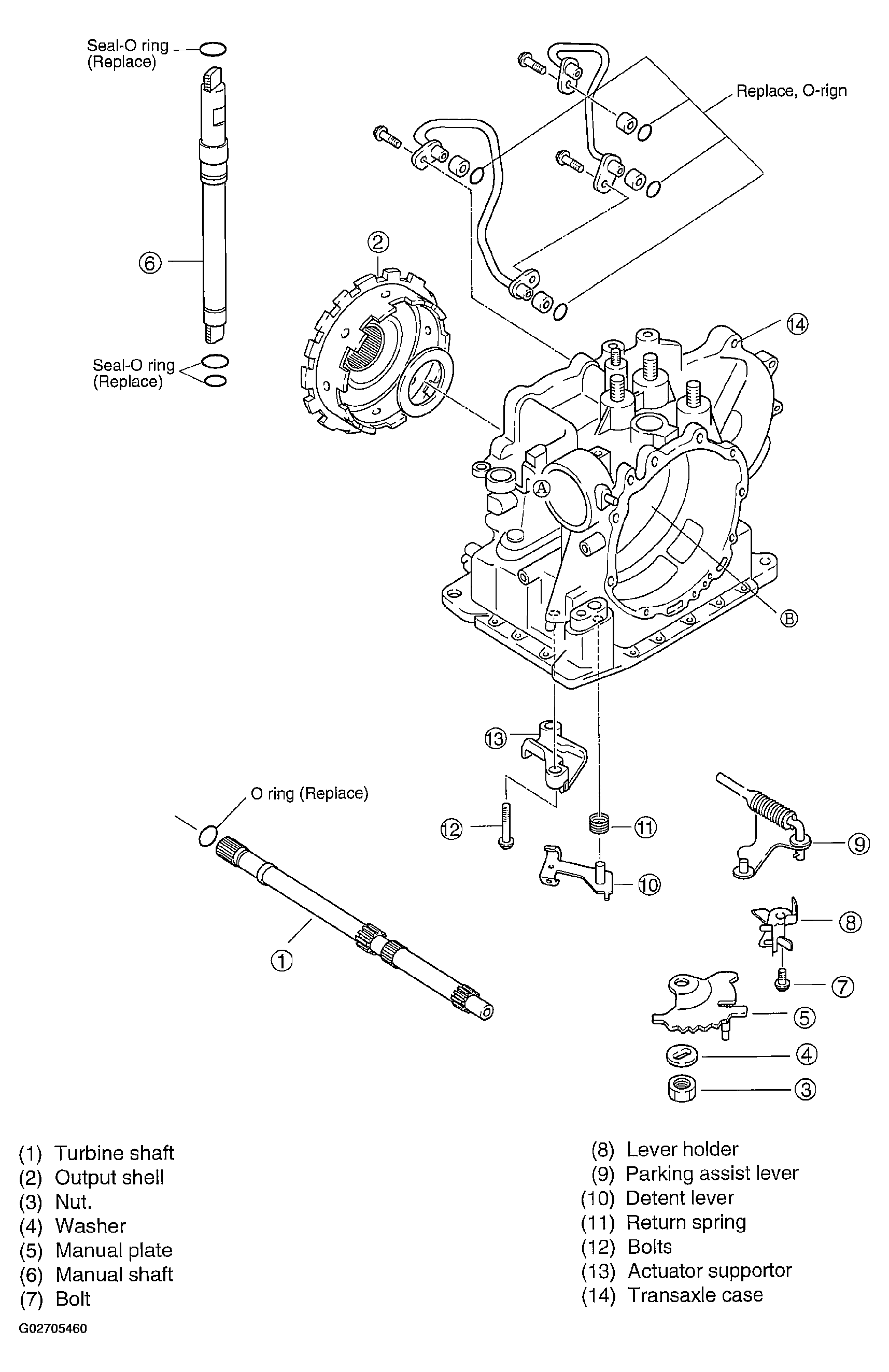

Fig 3: Transaxle Components (3 Of 4)
G02705460

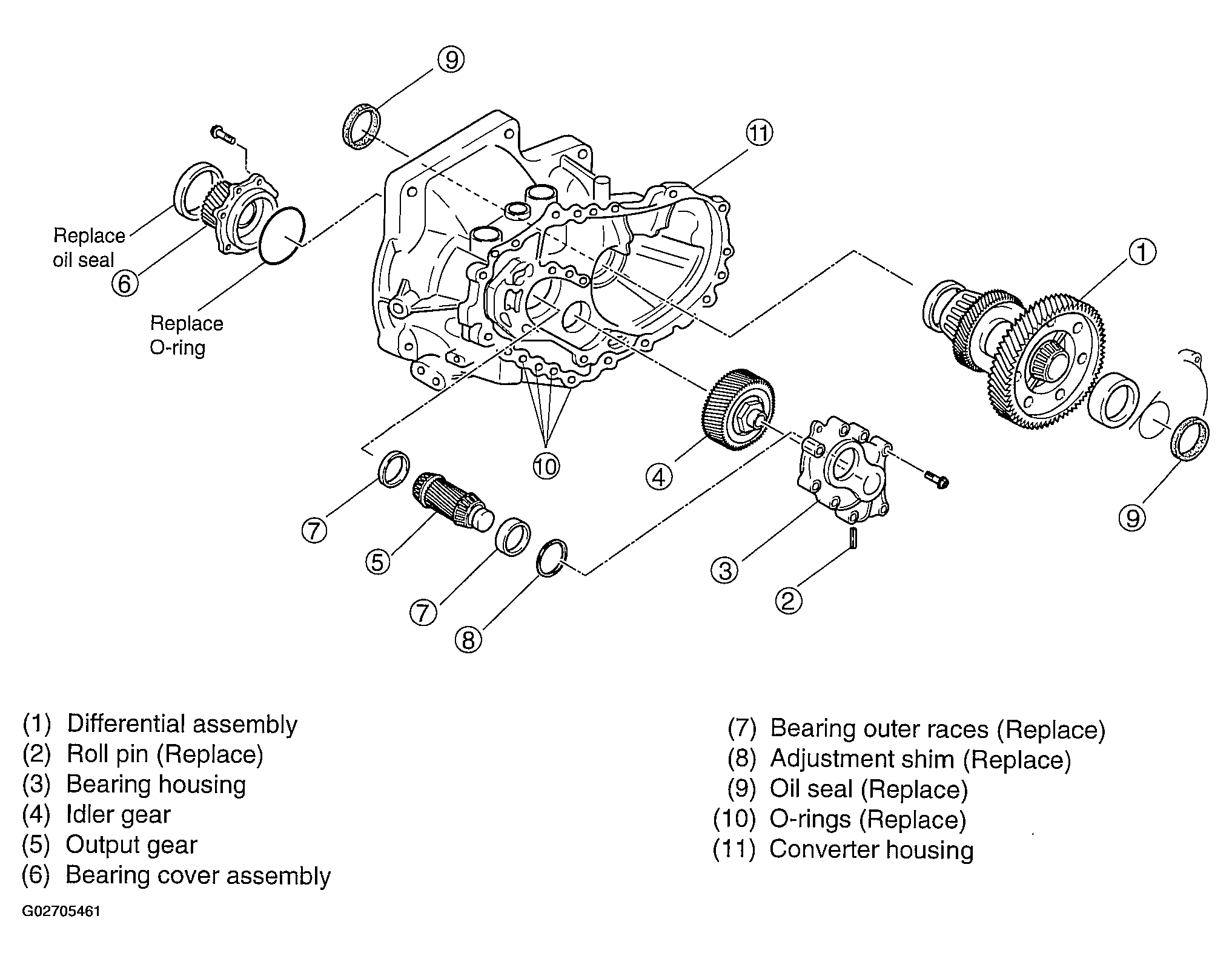

Fig 4: Transaxle Components (4 Of 4)
G02705461
