Spring And Retainer Assembly

  1. Measure spring free length and check for deformation.

    Free length of spring: 0.563 in. (14.3 mm)

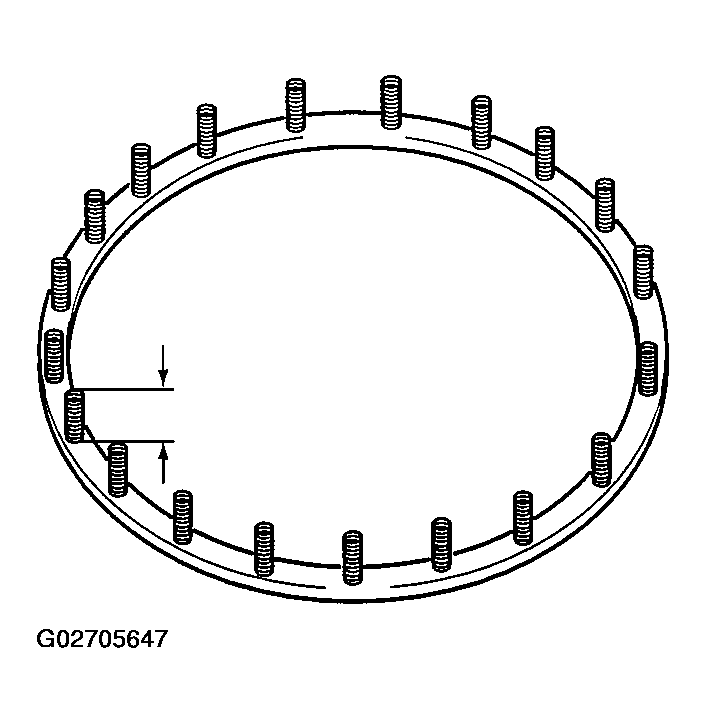

    Fig 1: Measuring Spring Free Length
    G02705647
  2. If not within specification, replace spring and retainer assembly.
