Oil Pump: Inspection: Spring

  1. Measure spring free length.
    SPRING LENGTH SPECIFICATIONS

    Measurement Specification - In. (mm)
    Outer diameter 0.465 (11.8)
    Free length 2.087 (53.0)
    Number of coils 12
    Wire diameter 0.047 (1.2)

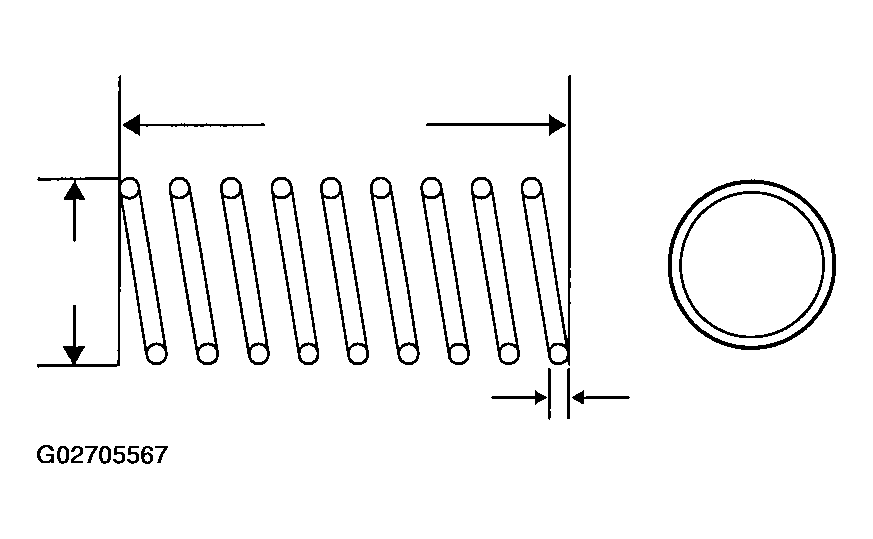

    Fig 1: Measuring Spring Dimensions
    G02705567
  2. If not as specified, replace oil pump as an assembly.
