Upper Control Valve Body: Reassembly

  1. Insert solenoid reducing valve and solenoid reducing spring then secure them with spring retainer.
  2. Insert P.E accumulator valve and P.E accumulator spring then secure them with spring retainer.

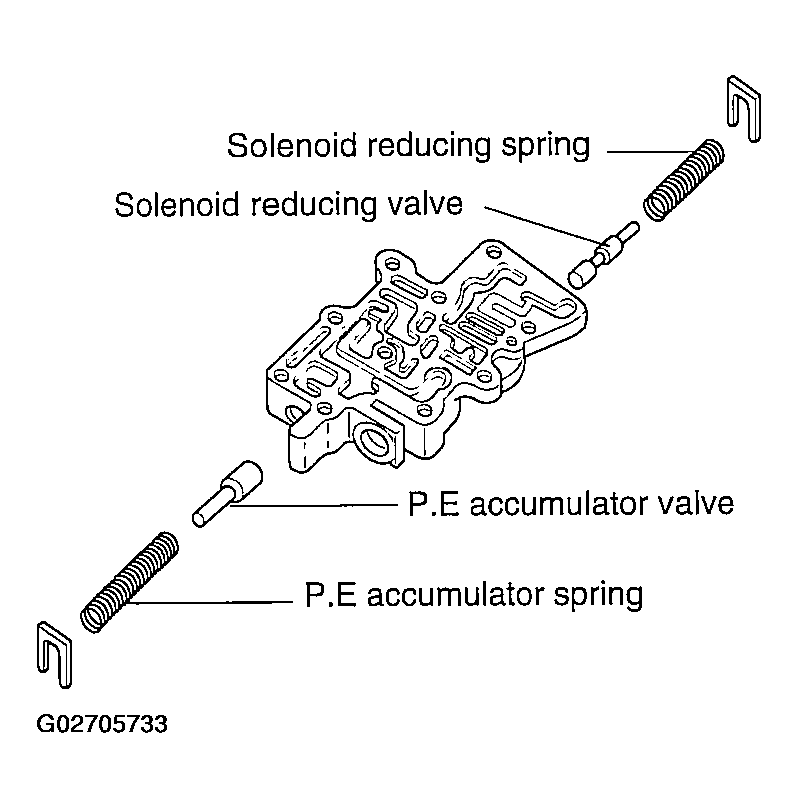

    Fig 1: Reassembling Upper Control Valve Body Components
    G02705733
