Timer/Control Unit, Accessory Control

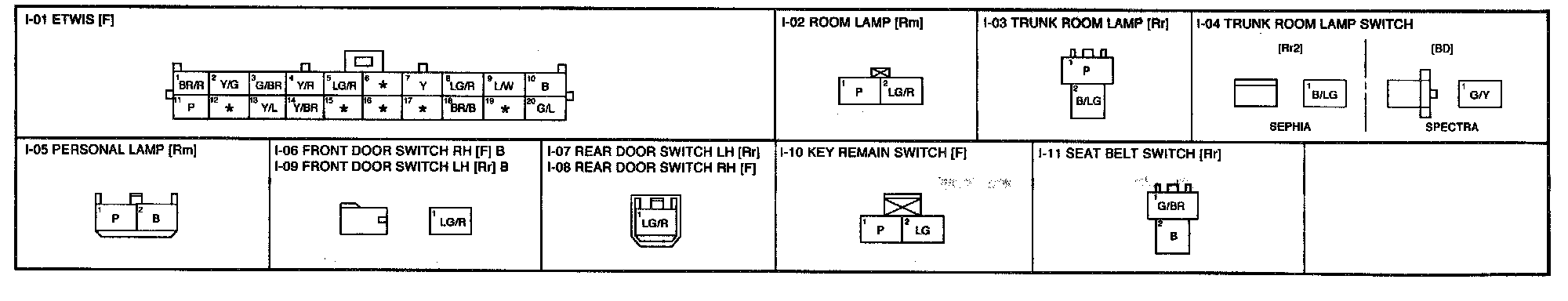

I-1a - Electronic Time & Warning Indication System (ETWS), Room Lamps Connectors:

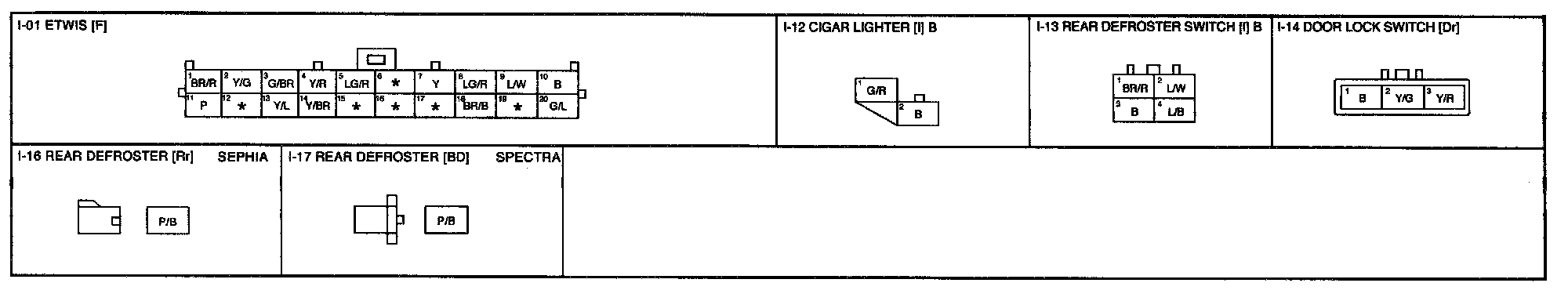

I-1b - Electronic Time & Warning Indication System (ETWS), Cigar Lighter, Rear Defroster Connectors:
