Automatic

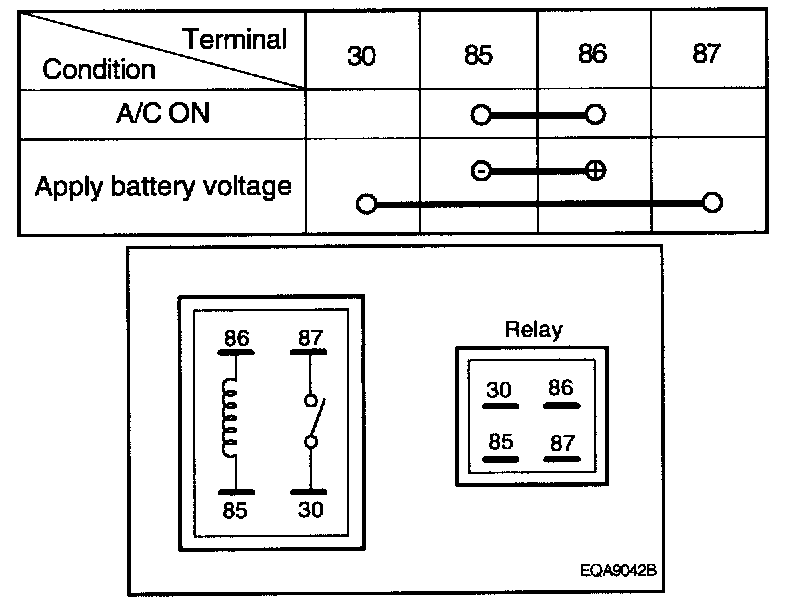

INSPECTION OF BLOWER RELAY

Check for continuity between terminals.




If continuity is not as specified, replace the relay.
