Drive Belt: Testing and Inspection
Checking Power Steering Belt Tension1. Press the V-belt applying a pressure of 98 N (10 kg, 22 lbs.) at the specified point, and measure the deflection to confirm that it is within the standard value range.
V-belt deflection [Standard value]
Regular Inspection 11.7 - 15.3 mm (0.46 - 0.60 inch)
New one 8.8 - 11.0 mm (0.35 - 0.43 inch)

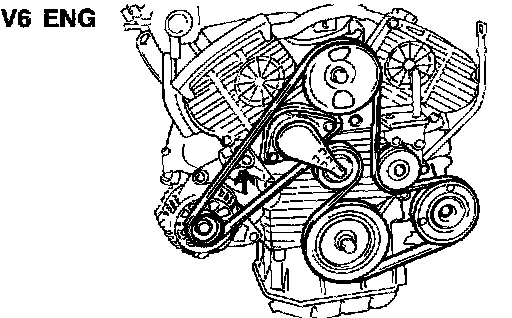

2. To adjust the belt tension, auto tensioner does automatically adjust to obtain the standard value (V6 ENG).

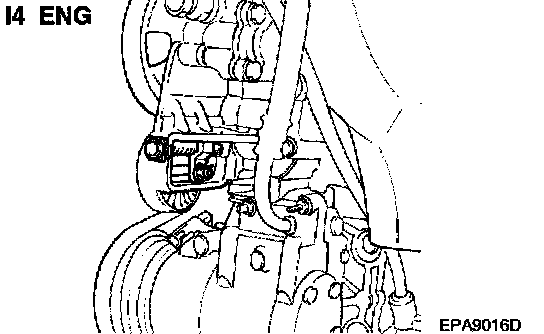

3. To adjust the belt tension, loosen the tensioner adjusting bolt, and then retighten the bolts. (I4 ENG.)
