Connector Locations

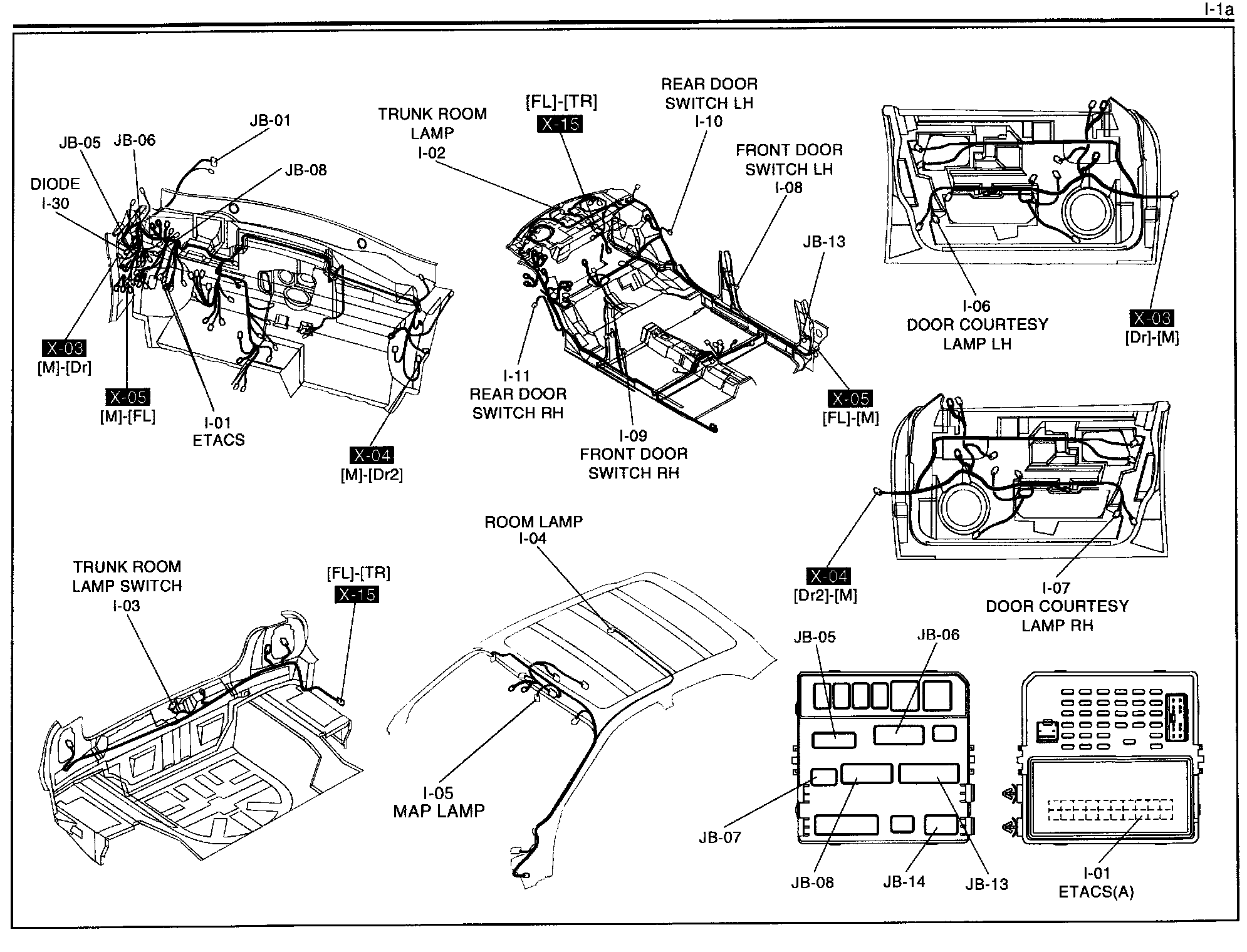

I-1a - Room Lamp, Door Courtesy Lamp, Trunk Room Lamp, ETACS (Electronic Time & Alarm Control System) Harness/Connector Symbols:

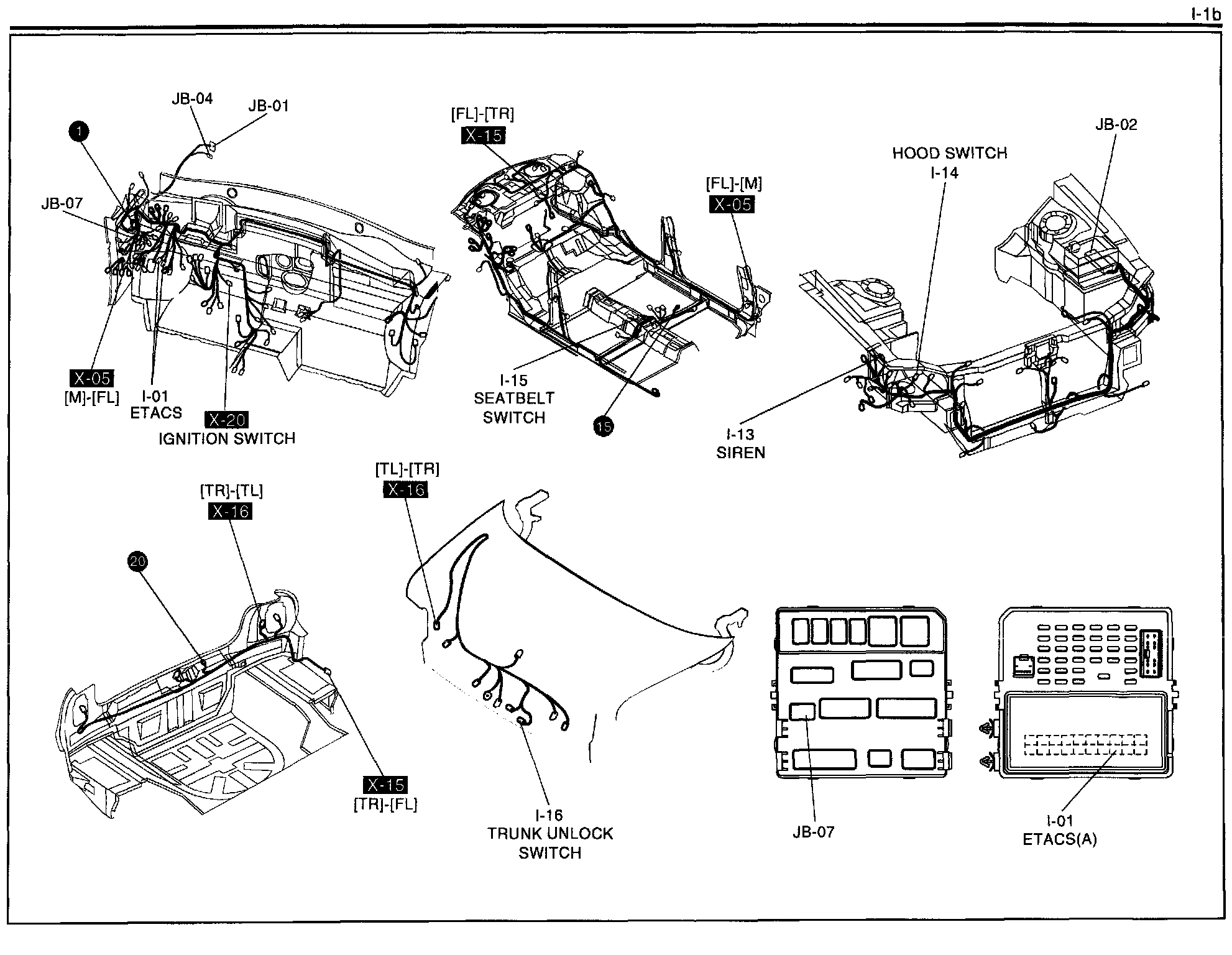

I-1b - ETACS (Electronic Time & Alarm Control System), Hood Switch Circuit Harness/Connector Symbols:

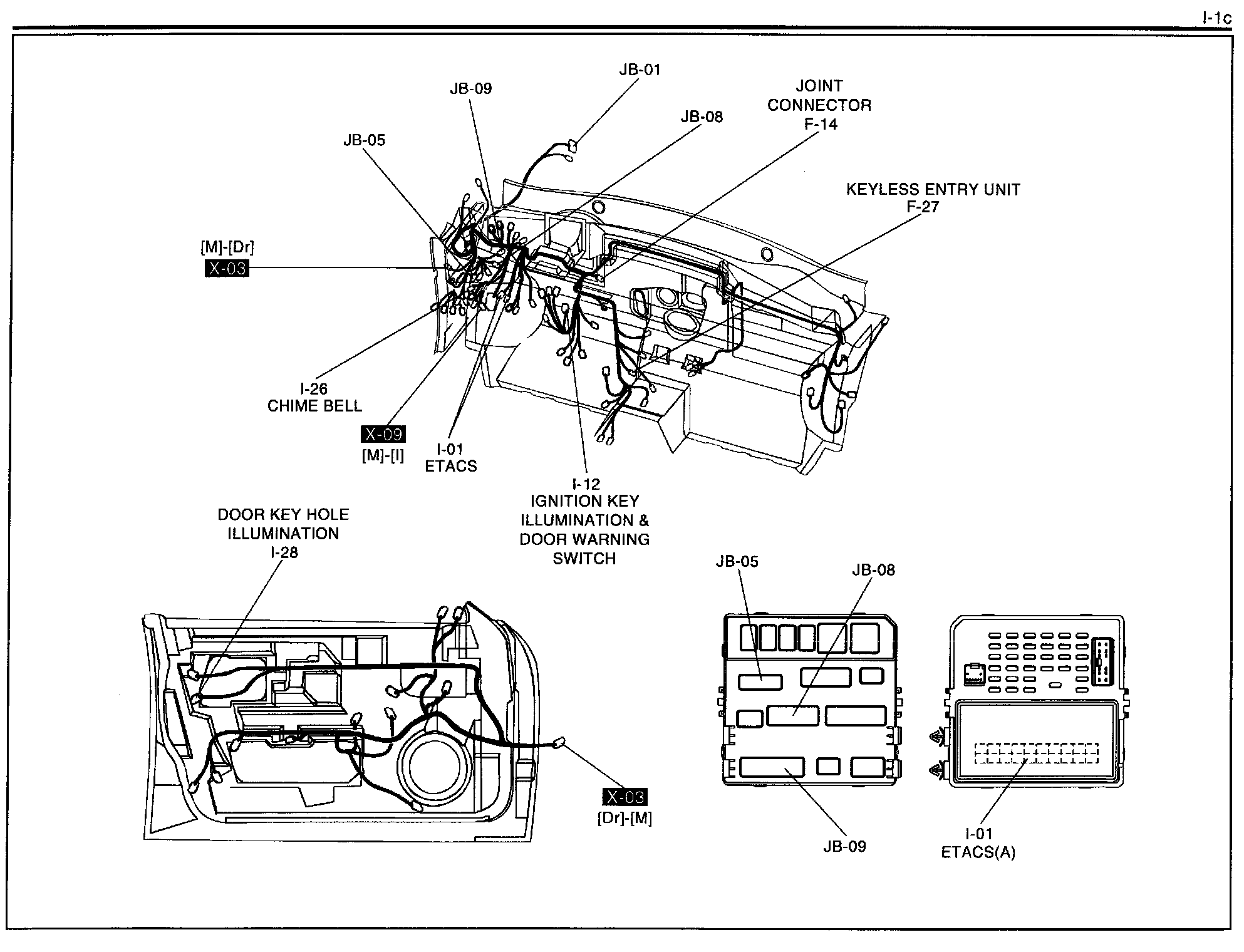

I-1c - ETACS (Electronic Time & Alarm Control System), Keyless Entry System Harness/Connector Symbols:
