B-2c - Engine/Transaxle Control System (ECM/TCM)

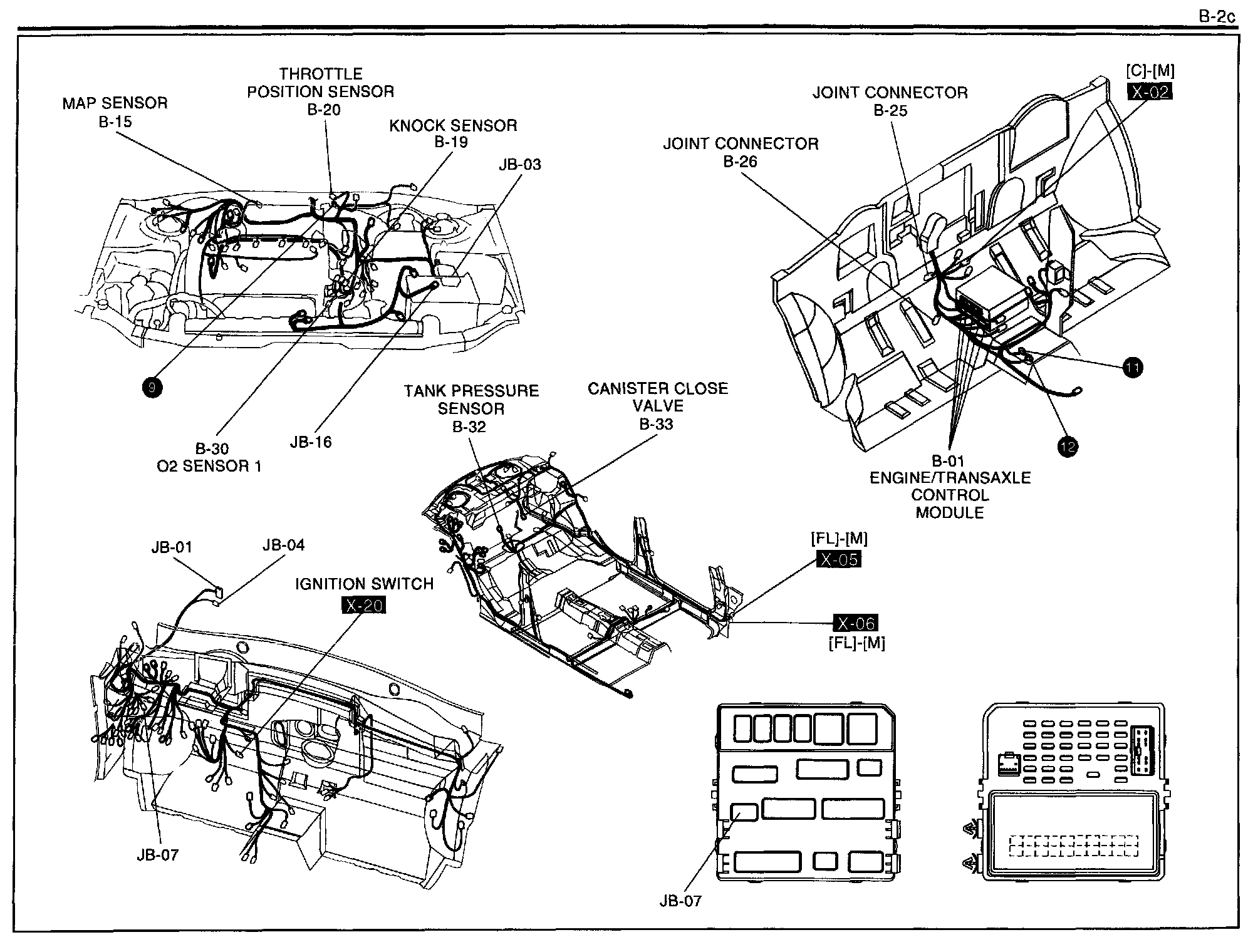

B-2c - Engine/Transaxle Control System (ECM/TCM) Harness/Connector Symbols:
