Drive Belt

CHECKING BELT TENSION

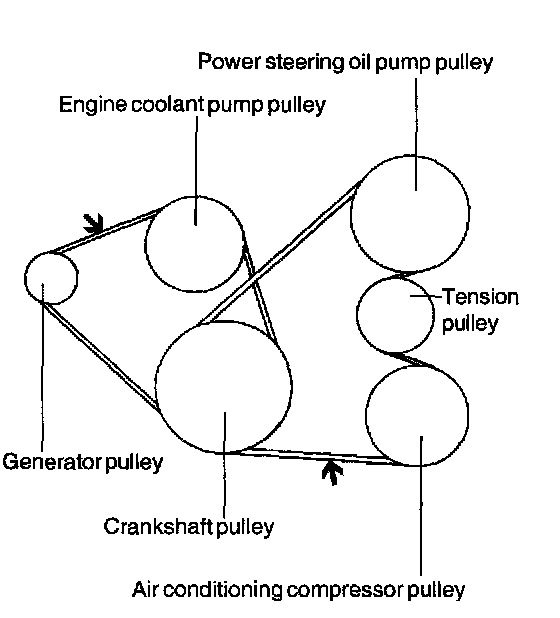

Apply 100 N (22 lbs.) force to the backside of the belt between the pulleys as shown in the illustration, measure the amount of deflection Measure tension with a tension gauge.

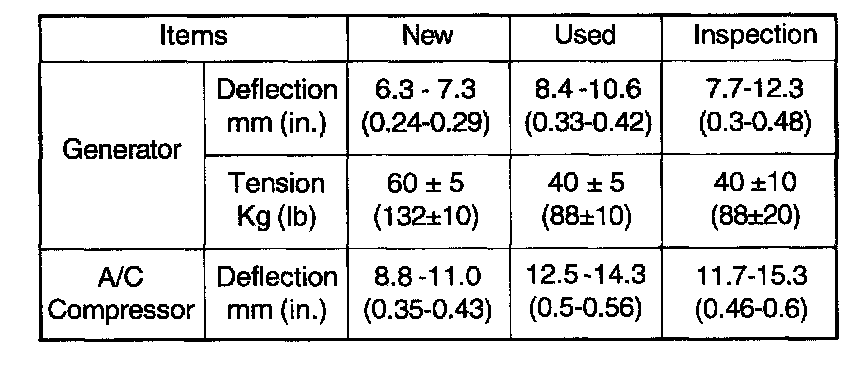

Standard value (For 2.4L DOHC ENGINE)

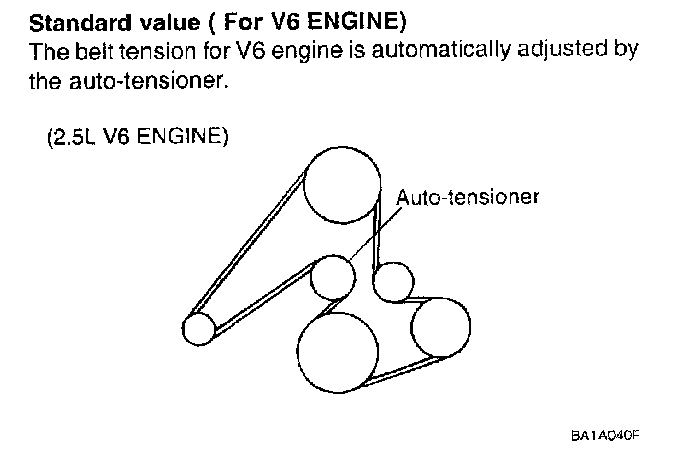

Standard value (For V6 ENGINE)
The belt tension for V6 engine is automatically adjusted by the auto-tensioner.
