System Specifications

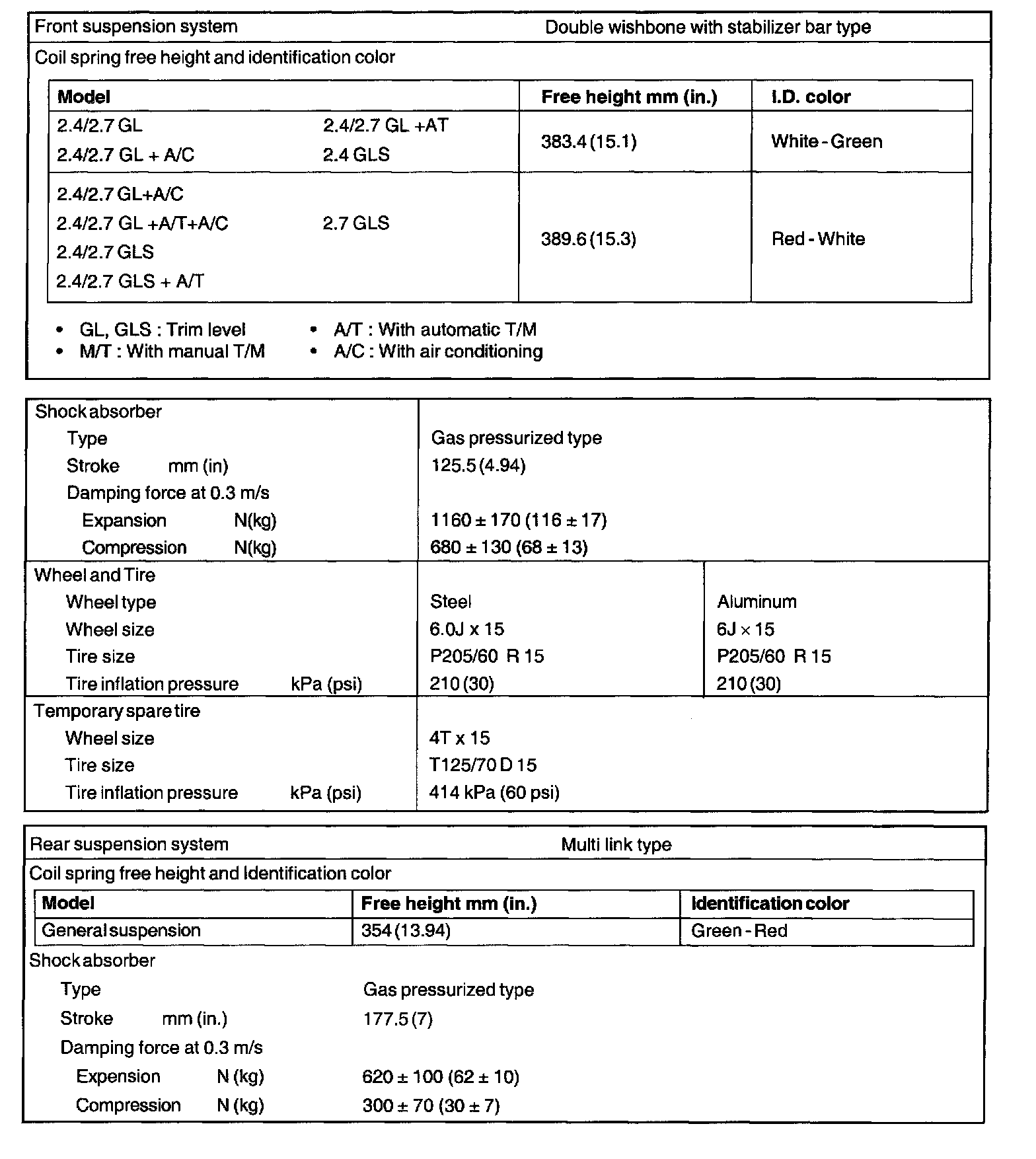

GENERAL SPECIFICATIONS

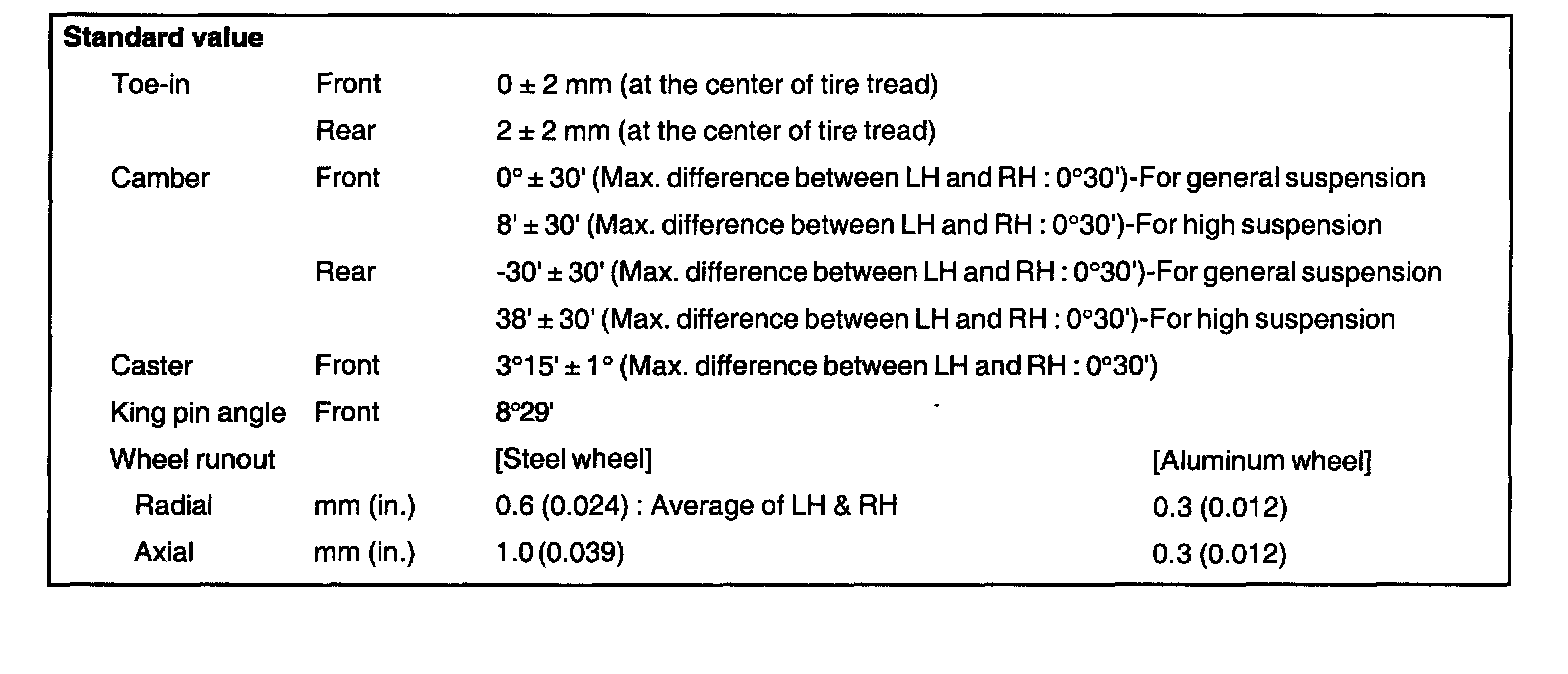

SERVICE STANDARD

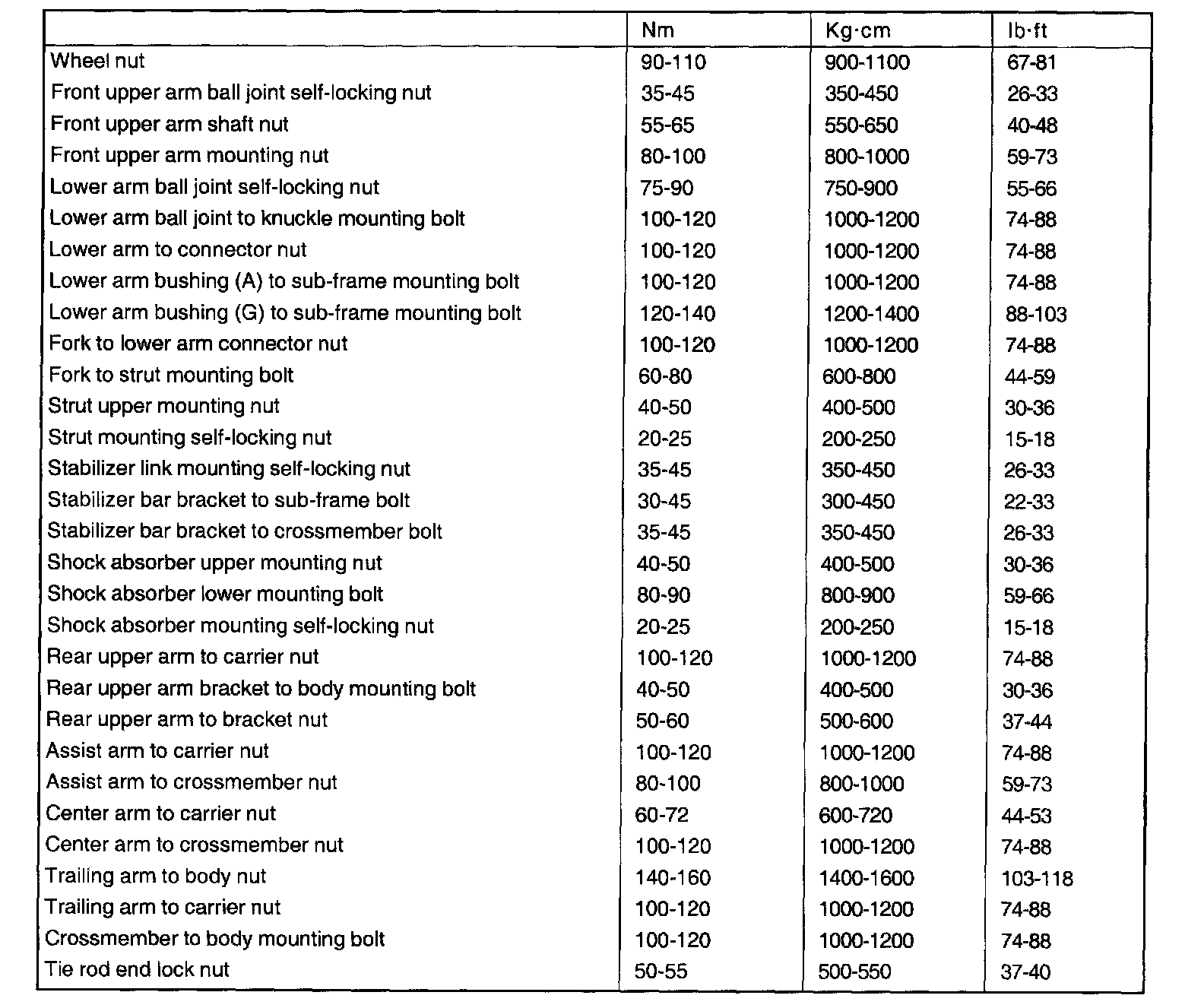

TIGHTENING TORQUE

WARNING: Always follow torque tightening levels. Failure to follow such levels can result in parts breaking if over-tightened or loosening if under-tightened. In either case, serious personal injury or death could result to vehicle occupants.
