Power Window Switch: Testing and Inspection

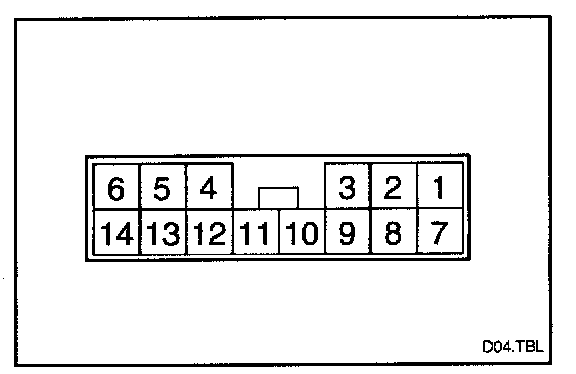

Power window main switch
1. Disconnect the power window main switch.
2. 0perate the switch, and check for continuity between the terminals.
3. If continuity is not as specified, replace the switch.

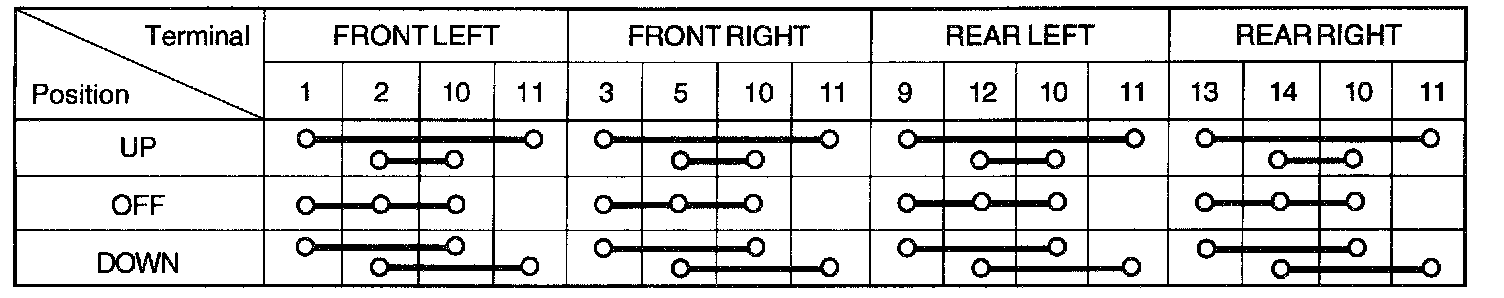

Power Window Main Switch:

Power window main switch

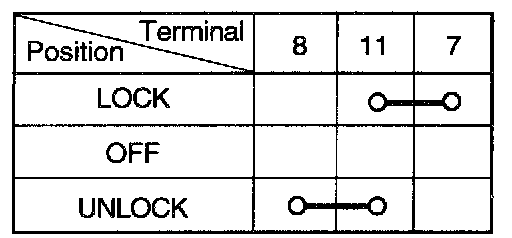

Door Lock Switch:

Door lock switch

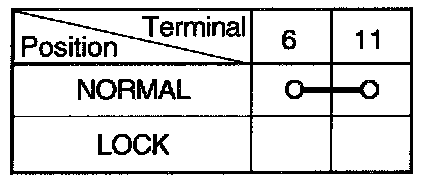

Window Lock Switch:

Window lock switch

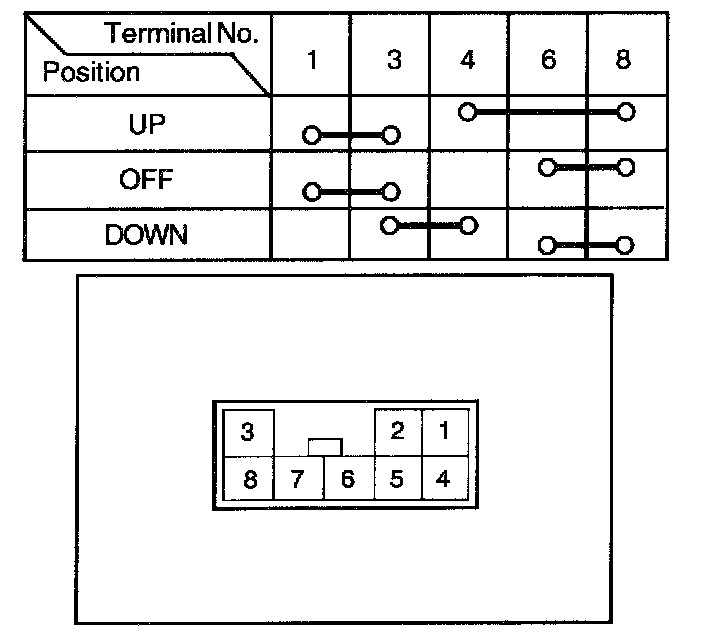

Power Window Sub-Switch:

Power window sub-switch
1. 0perate the switch, and check for the continuity between the terminals.
2. If continuity is not as specified, replace the switch.
