Pinout Values and Diagnostic Parameters

Engine ECM Terminal Layout Pinouts:

Connector B-01 (V) (Ter. V1 - V9):

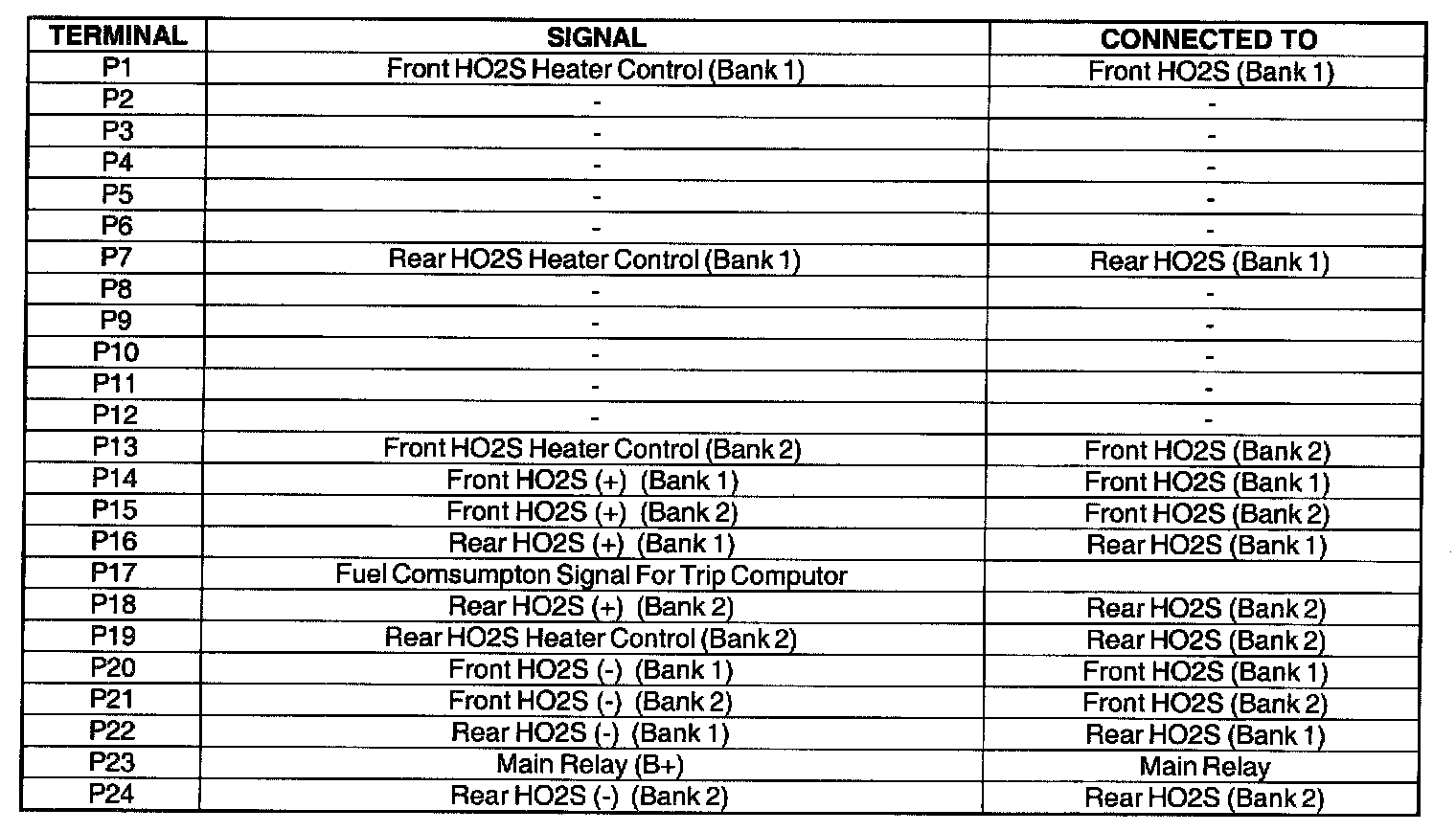

Connector B-01 (P) (Ter. P1 - P24):

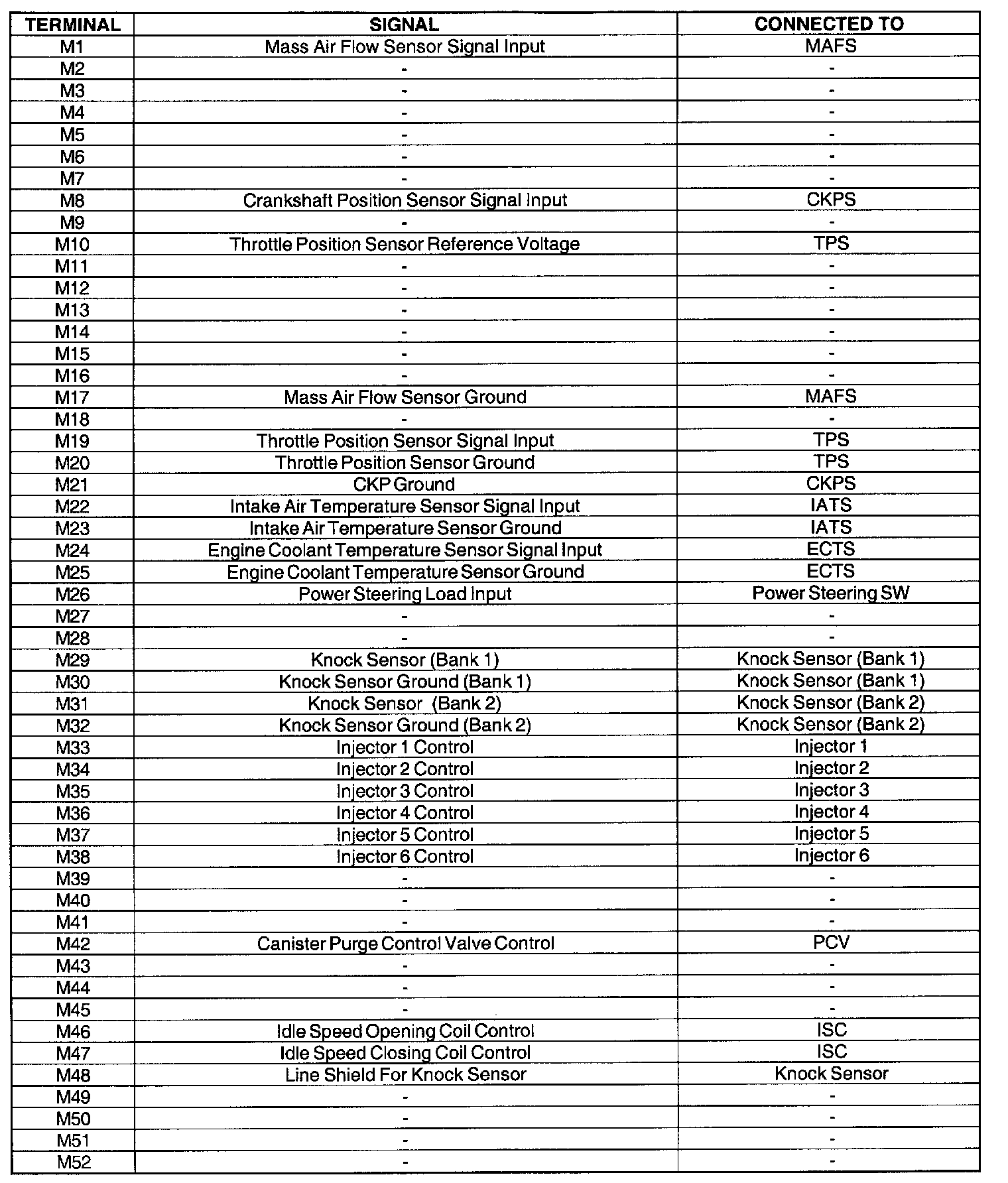

Connector B-01 (M) (Ter. M1 - M52):

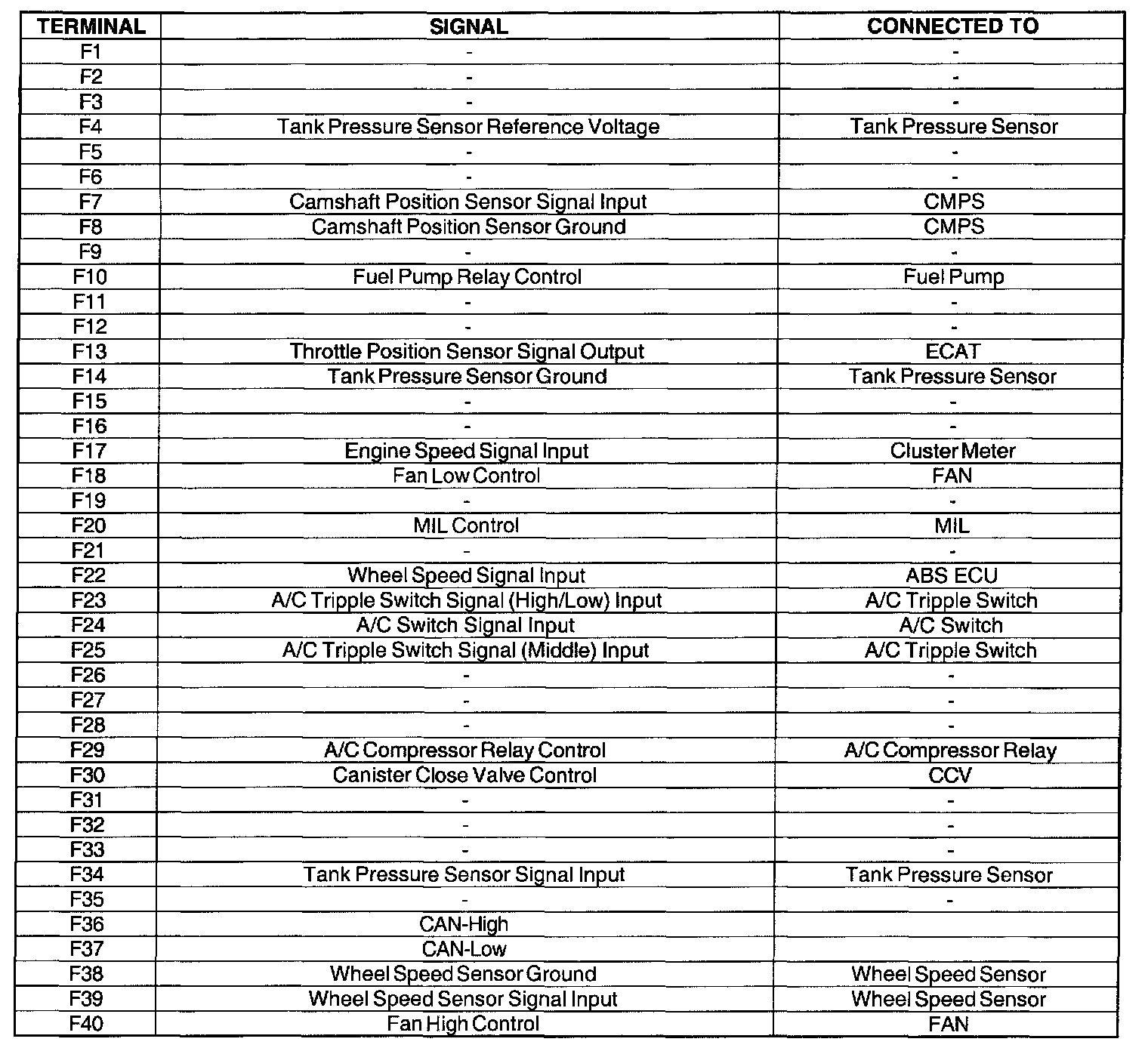

Connector B-01(F) (Ter. F1 - F40):

Connector B-01 (Z) (Ter. Z1 - Z9):
