Abs Control Unit: Removal

Disconnect the negative battery cable from the battery.
Pull up the locker to remove the unit connector.

Fig 1: Removing Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the six brake lines (2 inlet and 4 outlet) using a flare nut wrench. Temporarily seal open brake lines with plastic caps or equivalent.

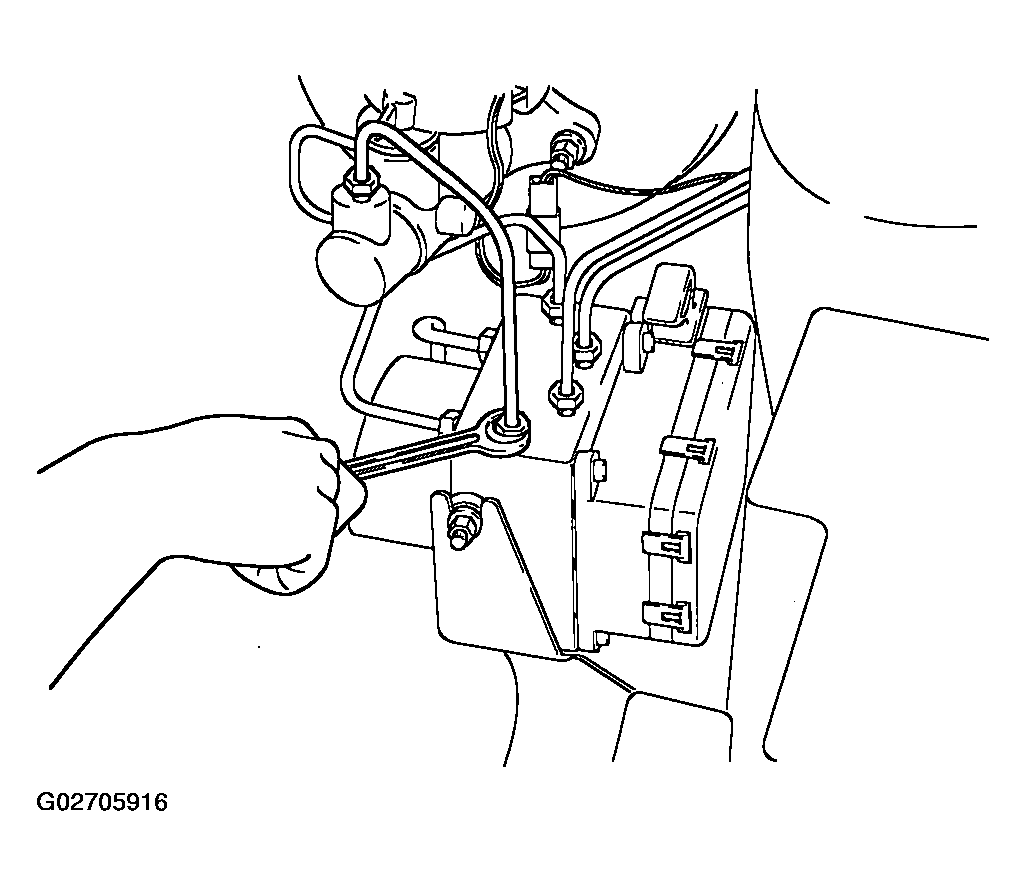

Fig 2: Disconnecting Brake Lines
Courtesy of KIA MOTORS AMERICA, INC.
Remove the hydraulic control unit bracket bolt and nut on the vehicle.

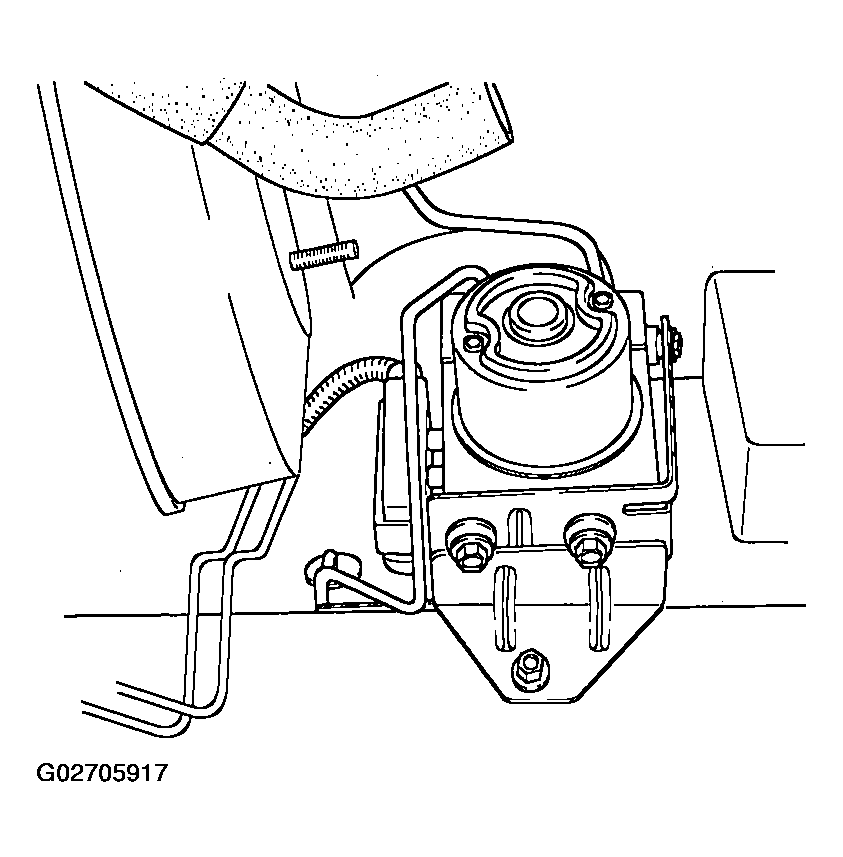

Fig 3: Locating Unit Bracket Bolt & Nut
Courtesy of KIA MOTORS AMERICA, INC.
Store the hydraulic control unit in a protective container while it is being serviced.
