Sensor Inspection

  1. Measure the resistance of the ABS sensor.

    Resistance: 1.3~1.5 Kohm

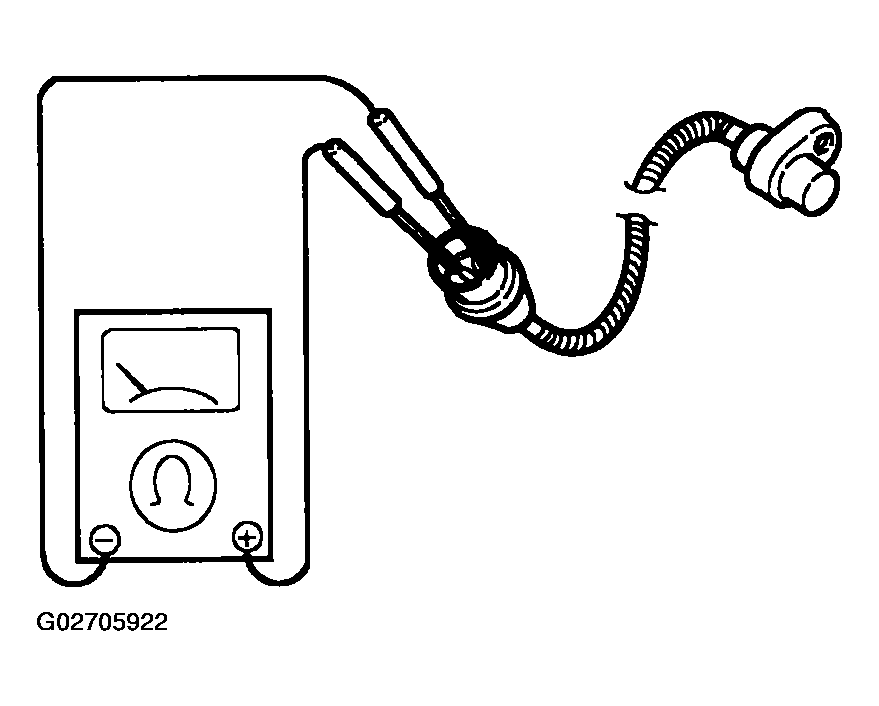

    Fig 1: Measuring ABS Sensor Resistance
    G02705922Courtesy of KIA MOTORS AMERICA, INC.
  2. Replace ABS sensor if necessary.
