After-Repair Procedures
- After repair, erase all diagnostic trouble codes stored in the ABS control unit with Hi scan pro. (Refer to Hi-scan pro operating manual).
- Verify that no diagnostic trouble codes are displayed.
- Remove Hi-scan pro from the data link connector.
NOTE:
If Hi scan pro is not available, to erase the diagnostic trouble code from ABS control unit, perform the following instructions.
- With the ignition switch OFF, ground pin "i" and "r" at the underhood data link connector.
- Turn ignition switch ON.

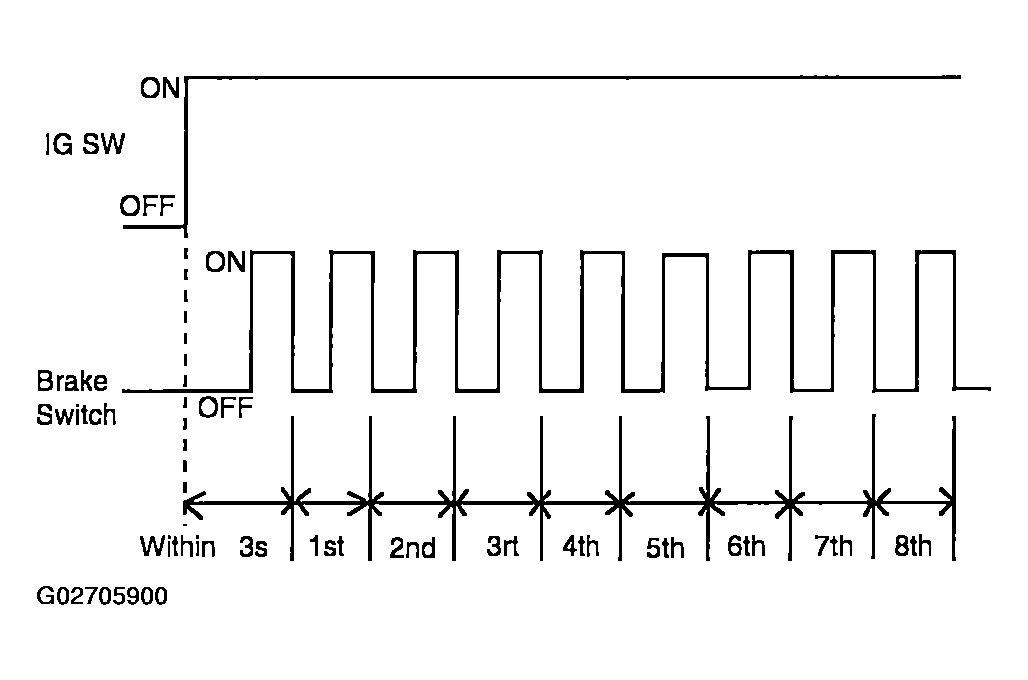

- Rapidly depress and release the brake pedal six times in three seconds to erase any stored DTC's. The ABS warning lamp will flash the all clear code.
- Turn the ignition key OFF and remove the jumper wire at the underhood DLC.
- After DTC's are erased, if there is still problem in the system, ABS warning lamp will stay remain ON. If this occurs, repeat the previous procedure to retrieve trouble codes.
