Engine Control Module

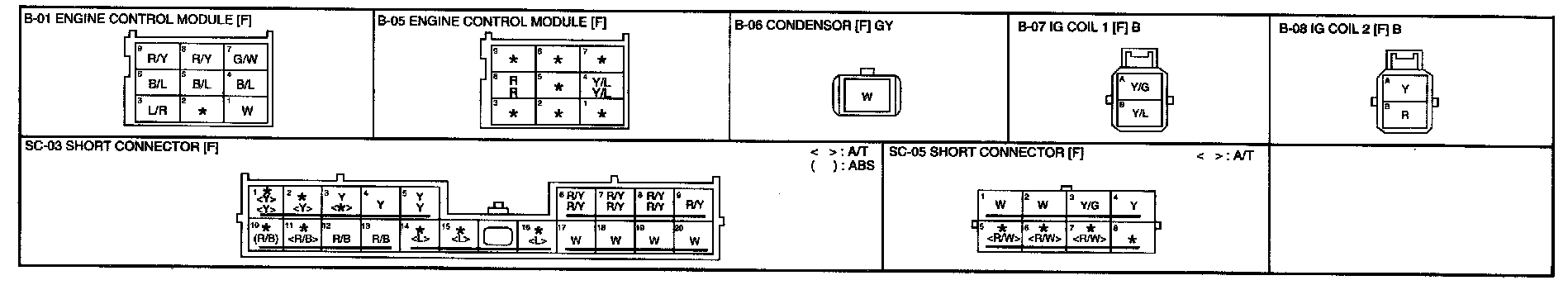

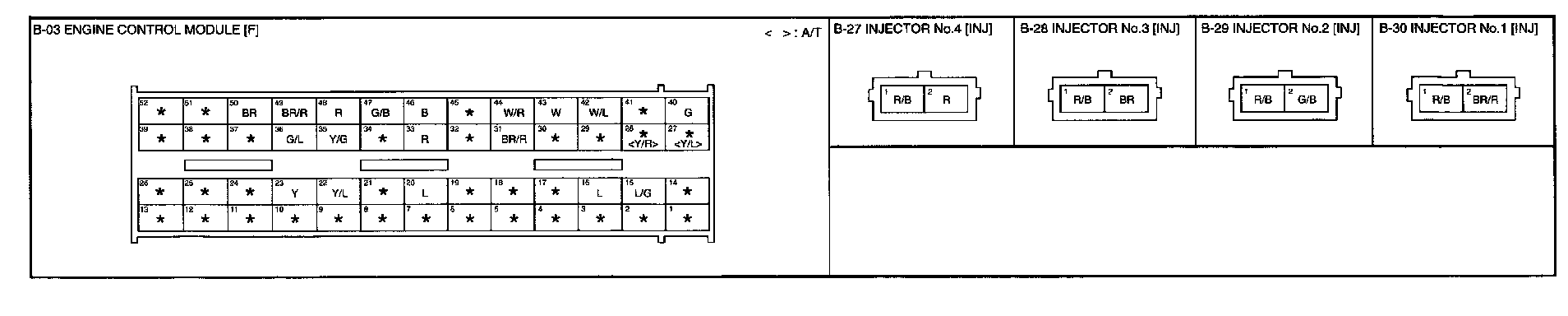

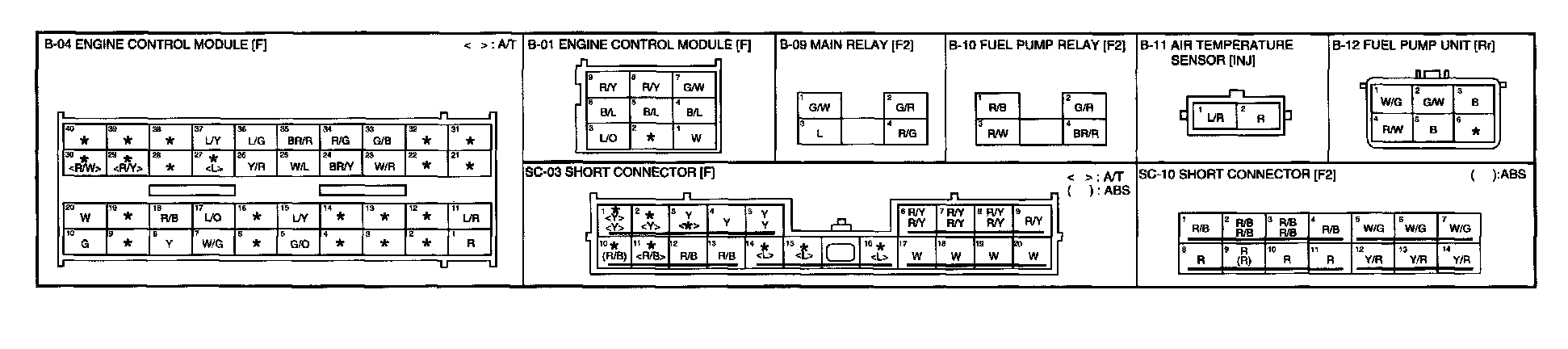

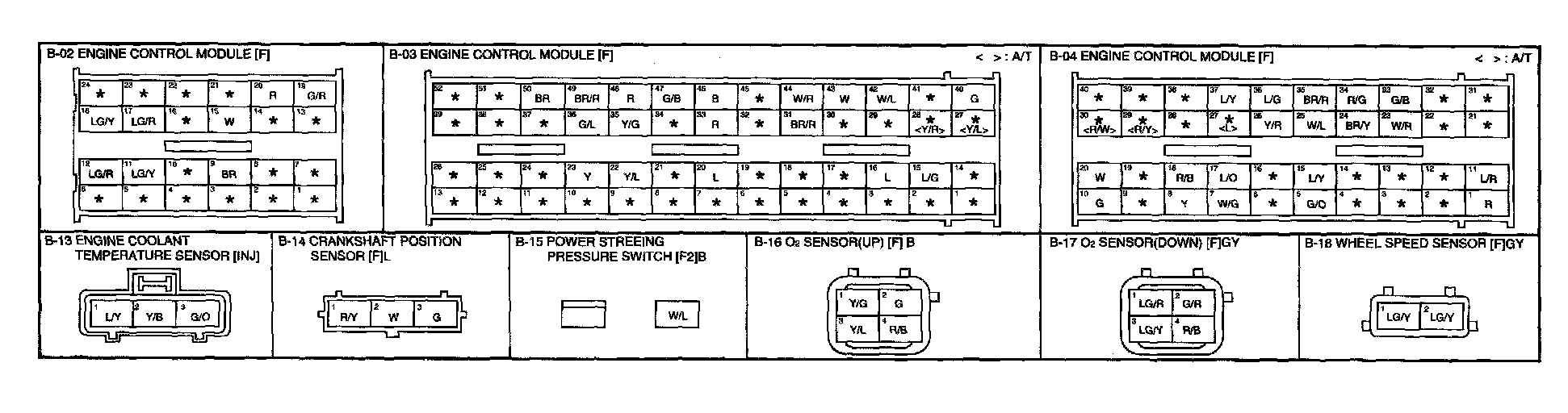

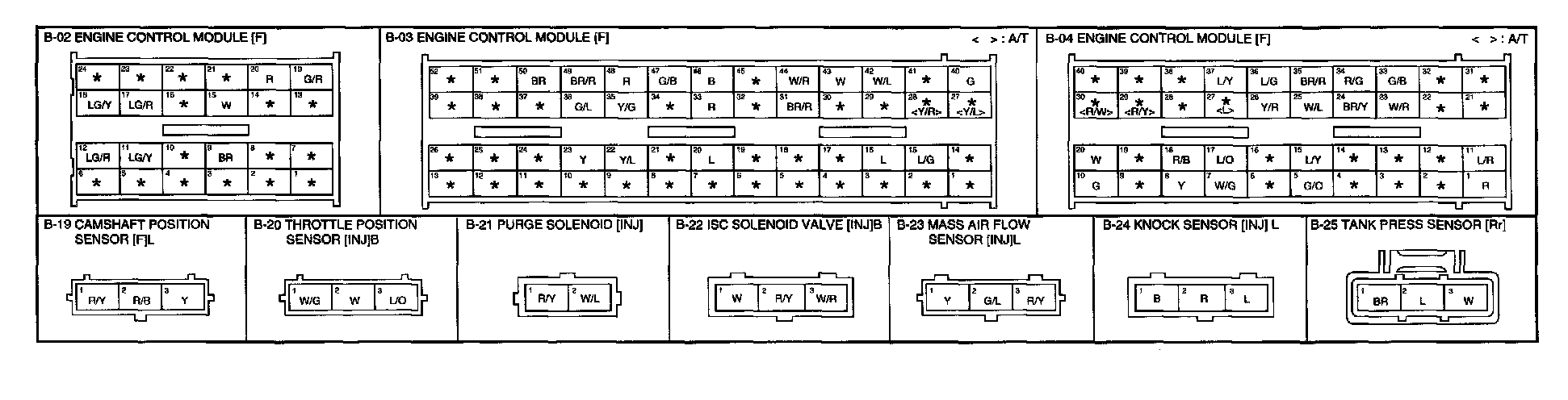

ECM Connector Views
B-1a - Engine Control System Connectors:
B-1b - Engine Control System Connectors:
B-1c - Engine Control System Connectors:
B-1d - Engine Control System Connectors:
B-1e - Engine Control System Connectors:
B-1f - Engine Control System Connectors:

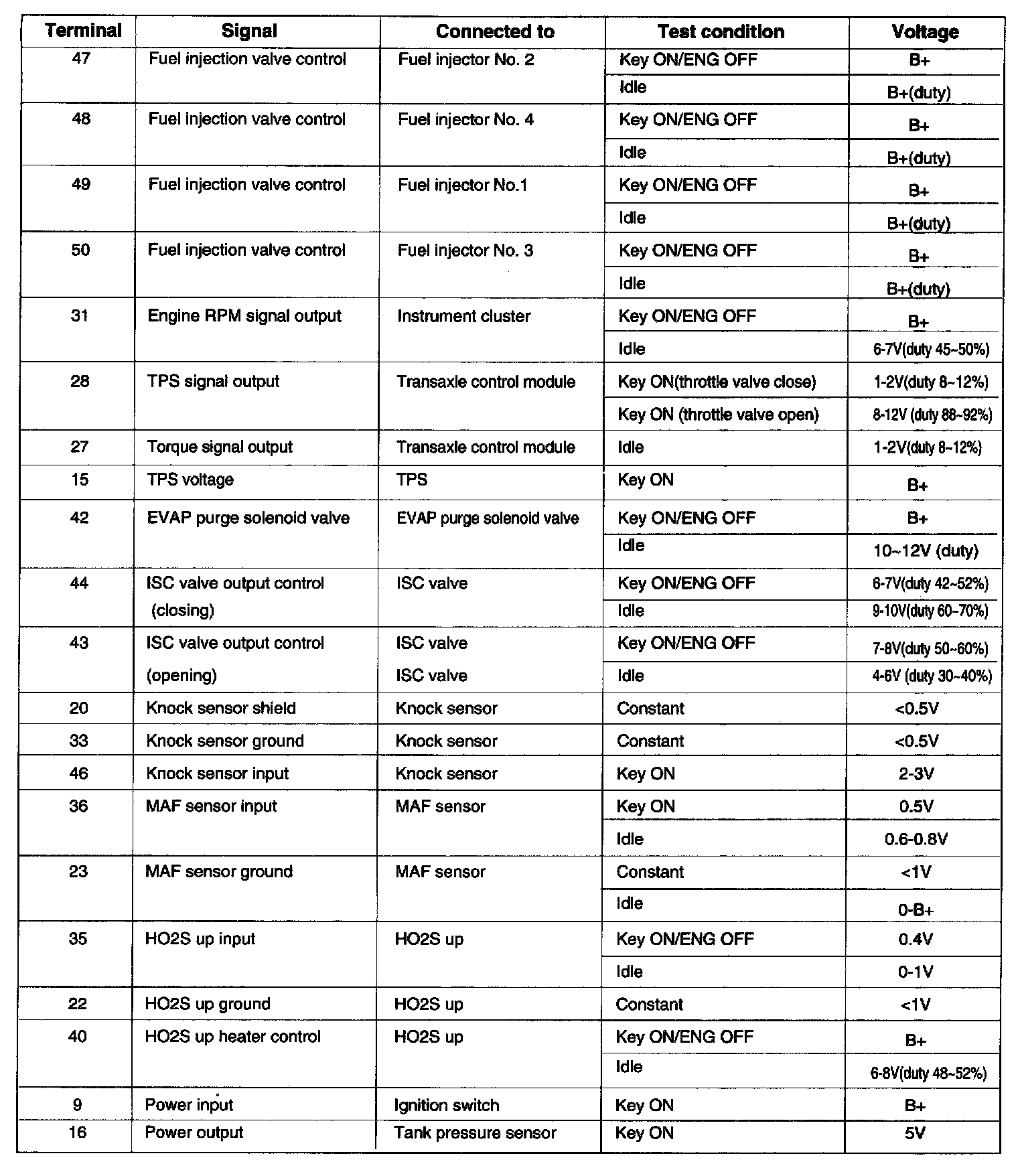

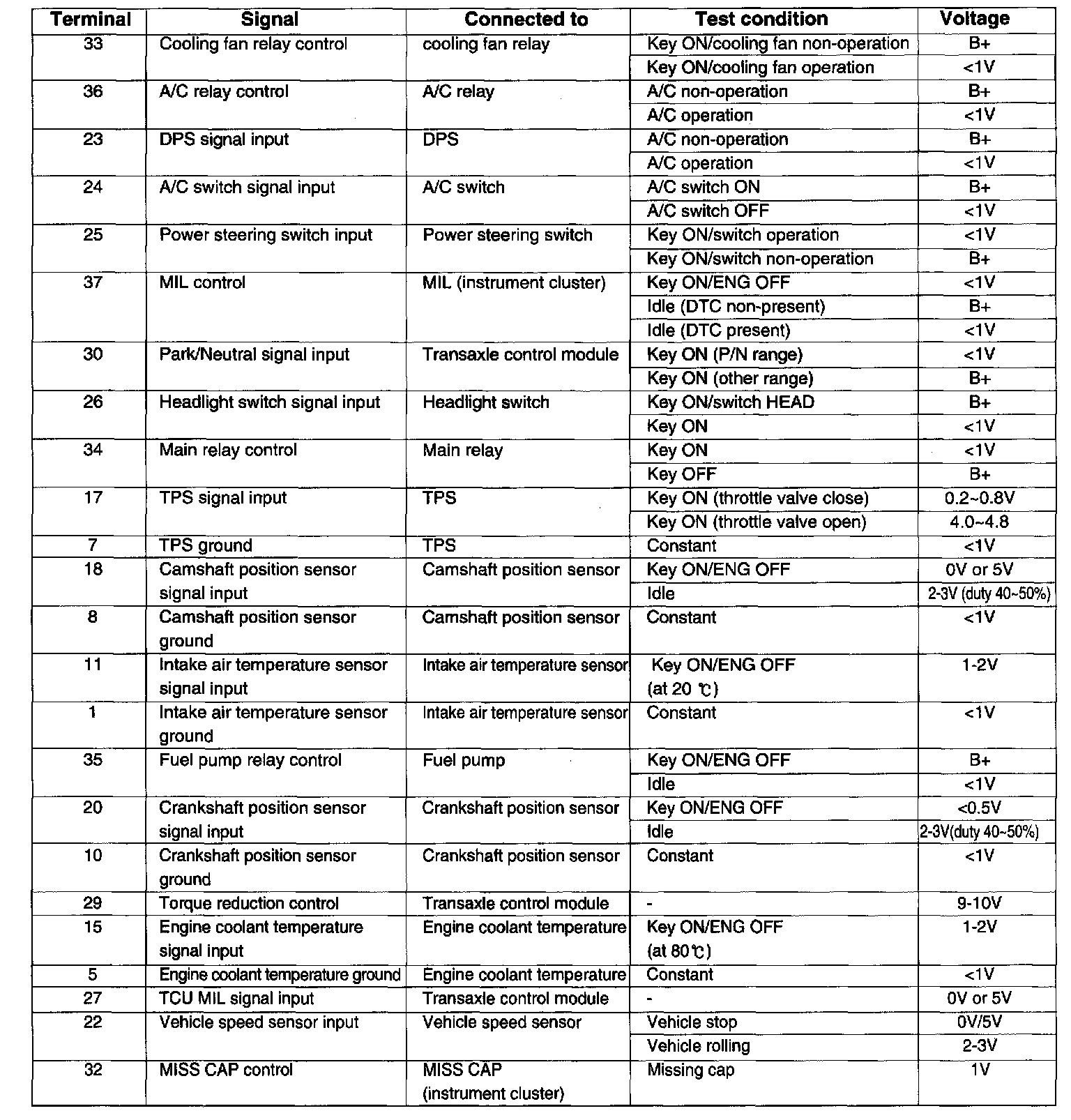

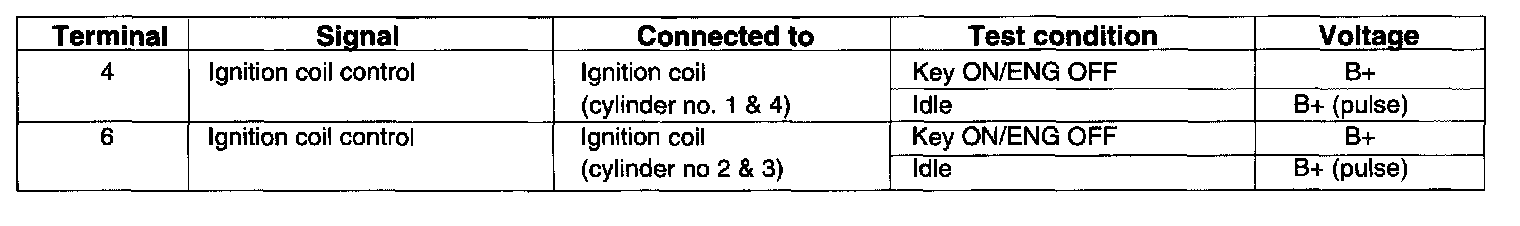

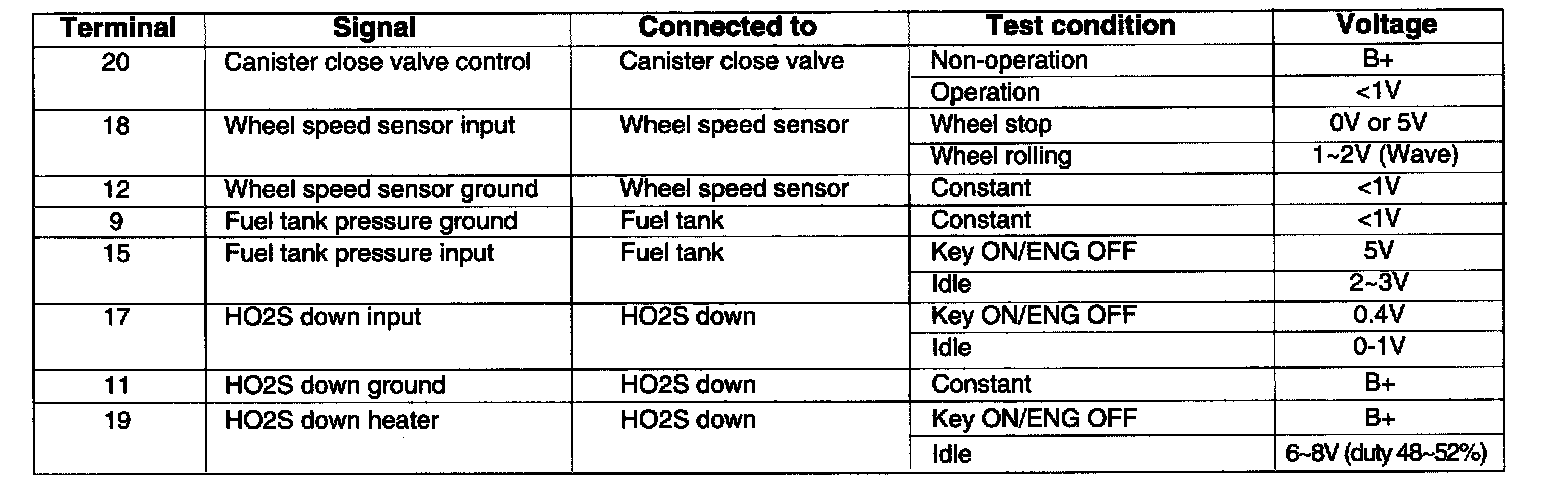

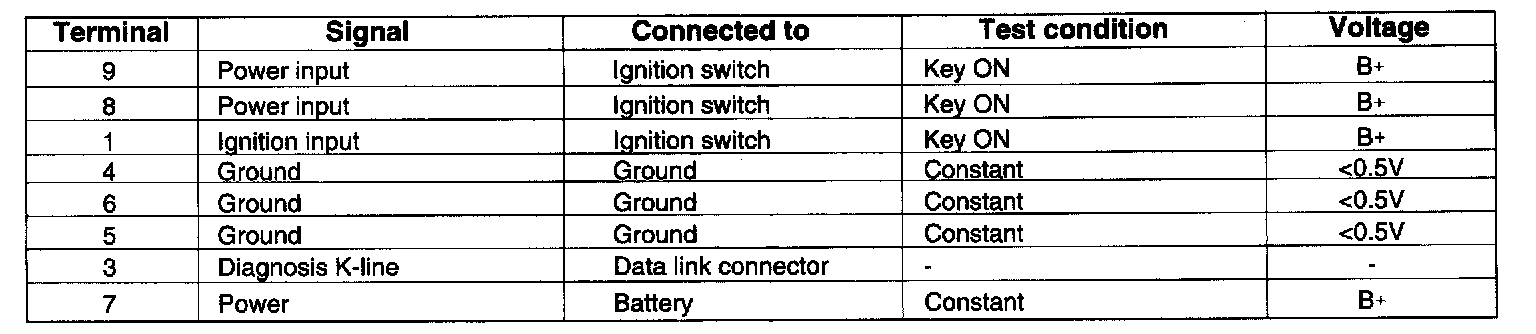

ECM Pinout Values
Connector B-01:
Connector B-02:
Connector B-03:
Connector B-04:
Connector B-05:
