How to Check For Continuity

Inspection

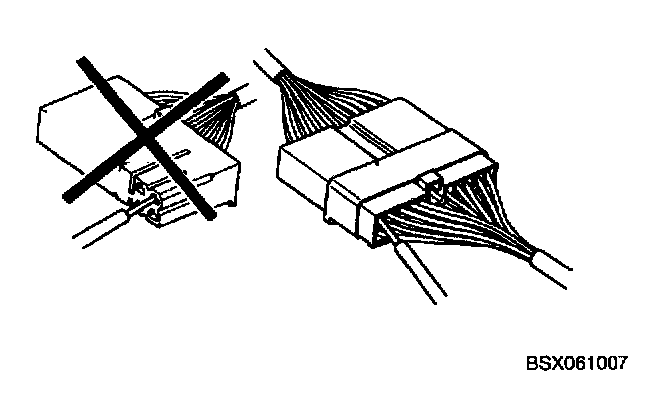

1. When a tester is used to check for continuity or to measure voltage, insert tester probe from wire harness side.

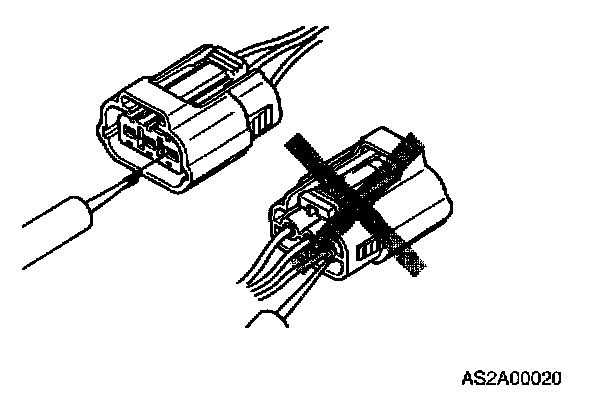

2. Check terminals of waterproof connectors from connector side because they cannot be accessed from harness side.






NOTE:
- Use a fine wire to prevent damage to the terminal.
- Do not damage the terminal when inserting the tester lead.
