Connector Locations

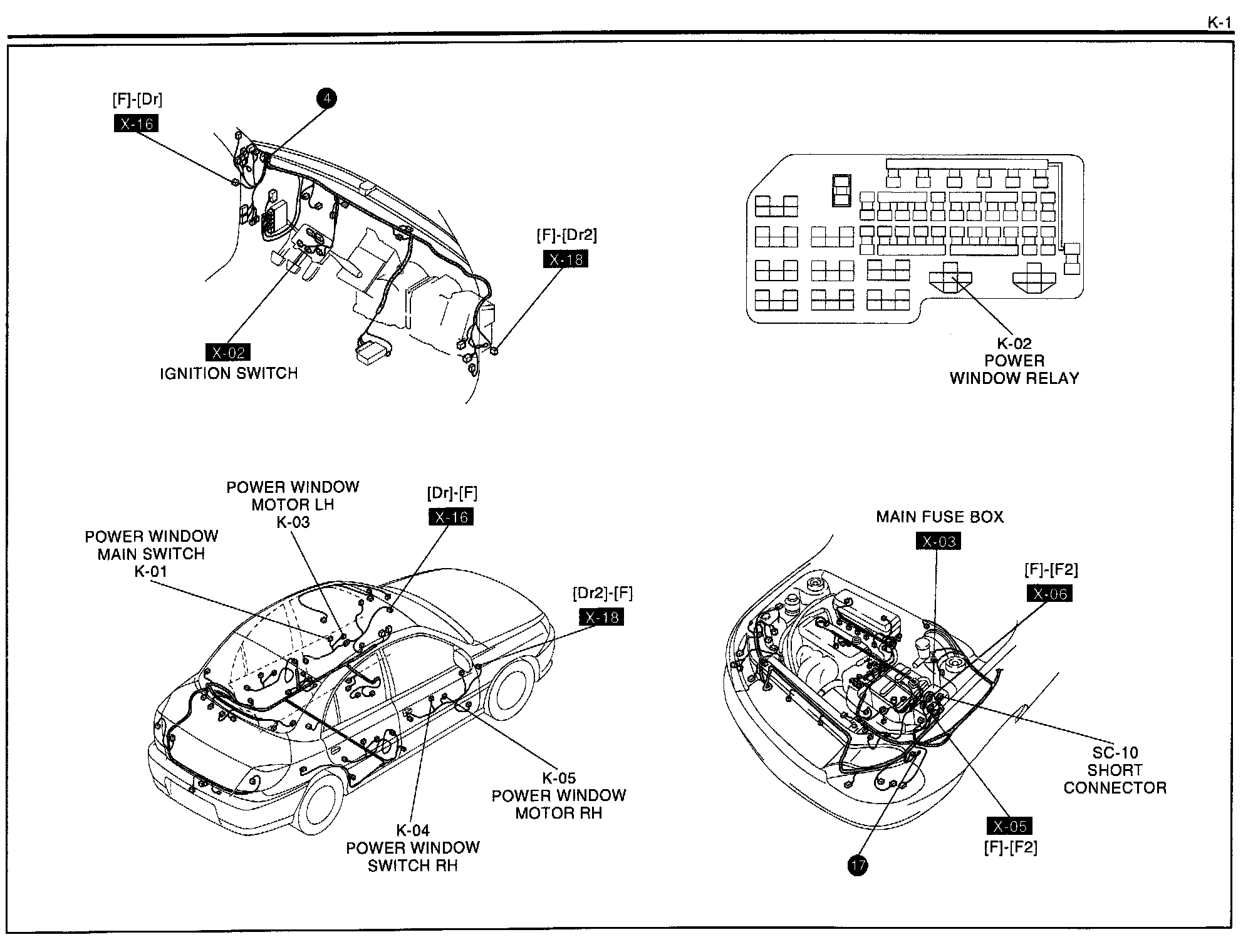

K-1 - Power Window System (2 Button) Harness/Connector Symbols:

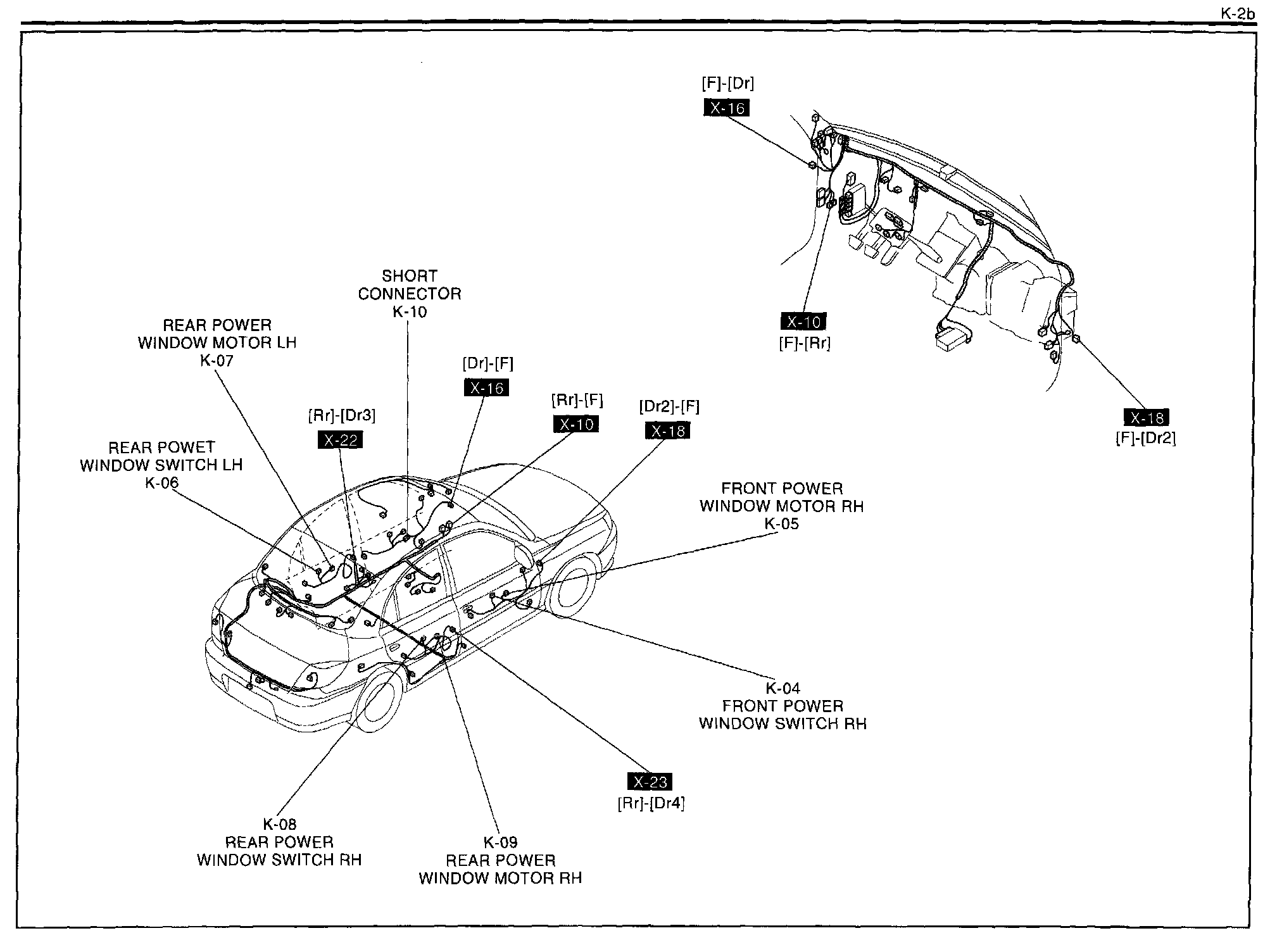

K-2b - Power Window System (4 Button) Harness/Connector Symbols:

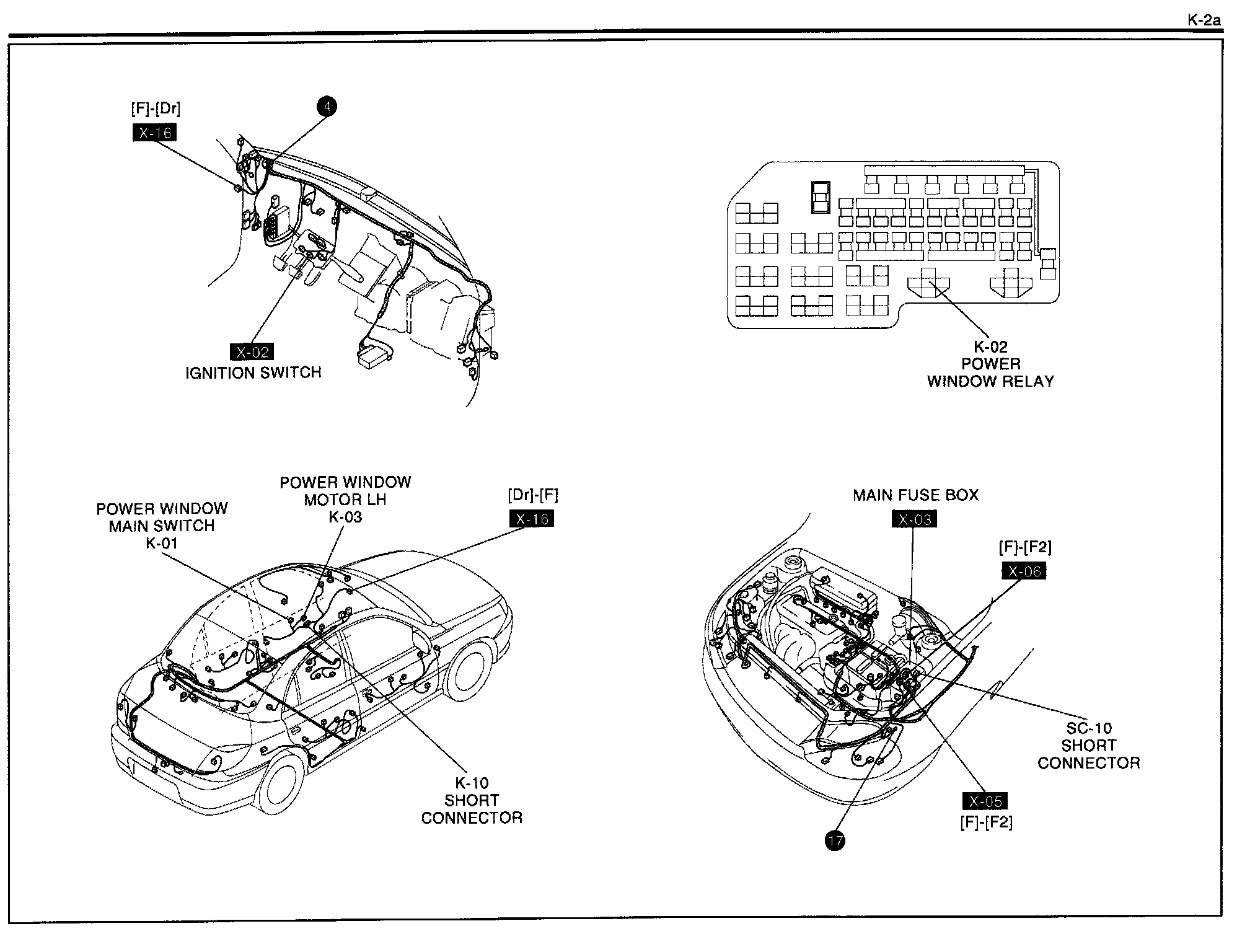

K-2a - Power Window System (4 Button) Harness/Connector Symbols:
