Clutch Cover And Disc: Removal

Remove transaxle assembly. See REMOVAL & INSTALLATION .
Install SST (0K130 430 010 / 0K590 111 004).

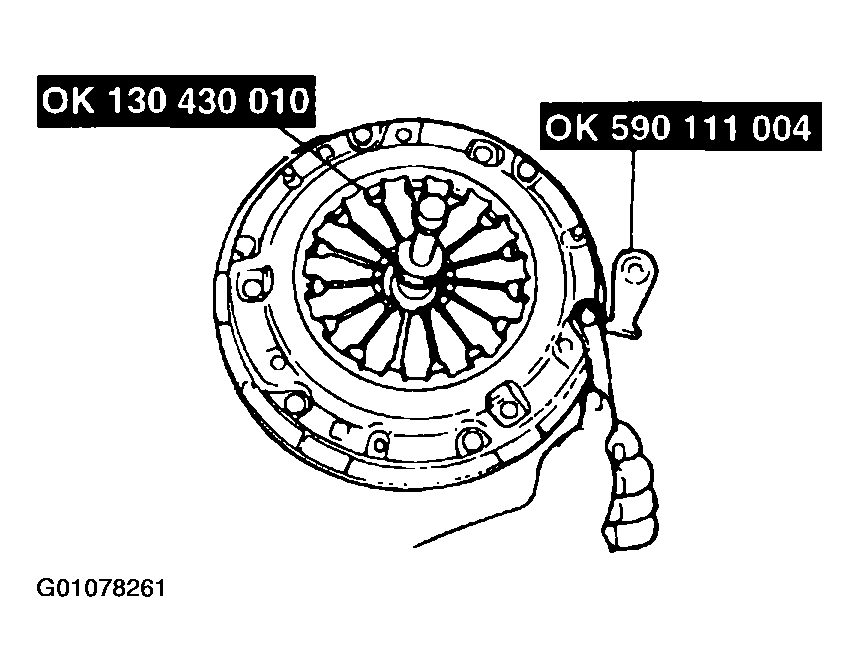

Fig 1: Installing Service Tool
Courtesy of KIA MOTORS AMERICA, INC.
Loosen each bolt one turn at a time, in a crisscross pattern, until spring tension is released. Proceed to remove clutch cover assembly and disc.
Remove pilot bearing with SST(0K401 111 012) , if necessary.
NOTE: After removing flywheel, inspect for oil leakage past crankshaft rear oil seal. If necessary, replace oil seal. (Refer to Section EM.)

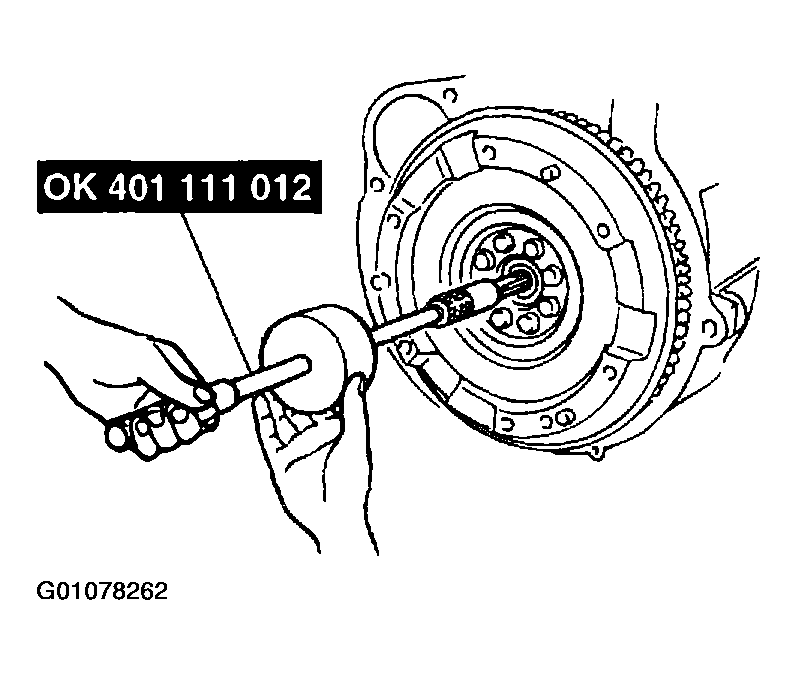

Fig 2: Removing Pilot Bearing
Courtesy of KIA MOTORS AMERICA, INC.
Measure flywheel runout with a dial indicator. Replace flywheel if runout is excessive.
Runout: 0.008 in (0.2 mm) maximum

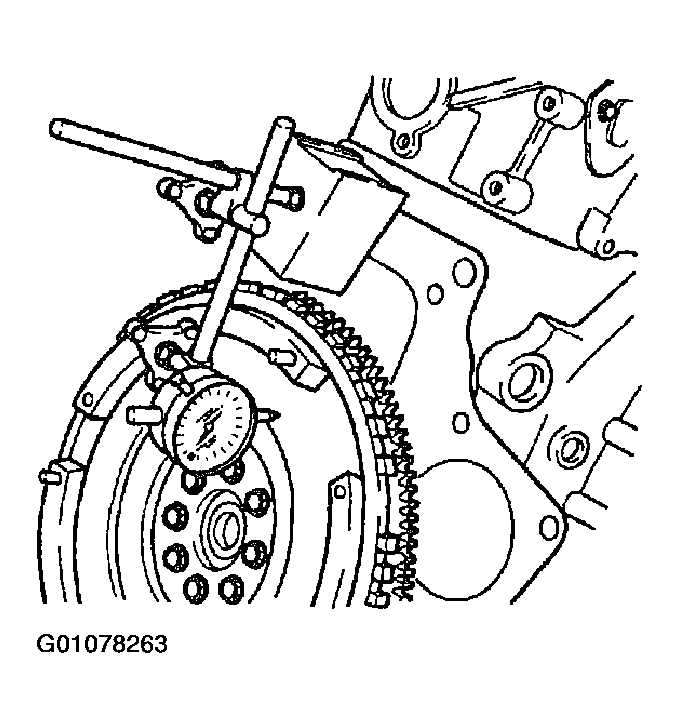

Fig 3: Measuring Flywheel Runout
Courtesy of KIA MOTORS AMERICA, INC.
Hold flywheel with SST (0K590 111 004).
Remove six bolts and then remove flywheel.

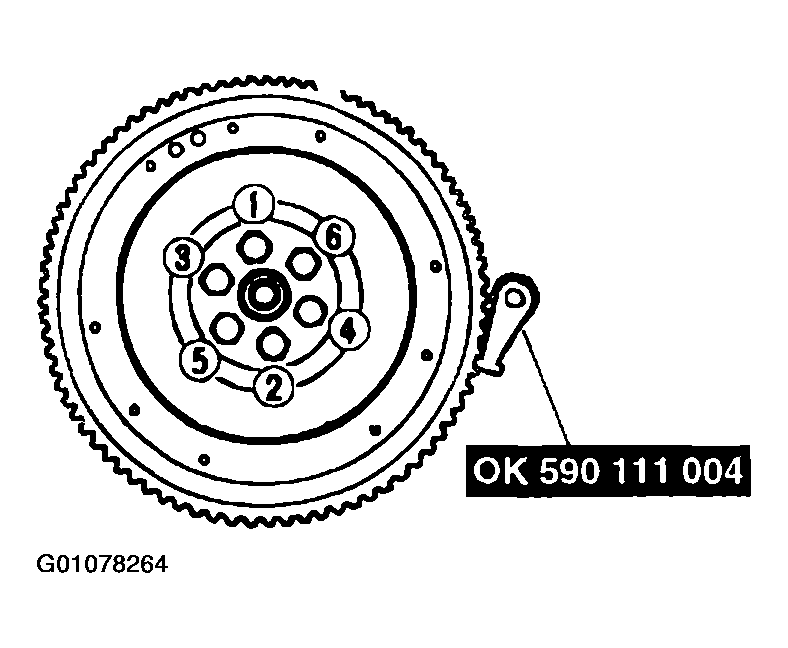

Fig 4: Removing Flywheel
Courtesy of KIA MOTORS AMERICA, INC.
