Clutch Master Cylinder: Installation
- Install clutch master cylinder.
- Tighten master cylinder mounting nuts.
- Insert spring clip and pin into master cylinder push rod.

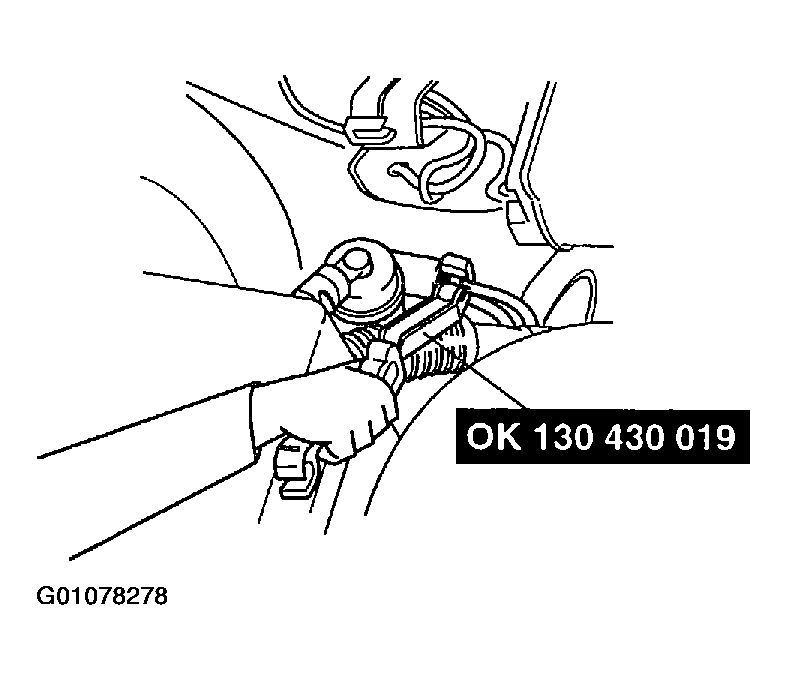

- Tighten clutch hydraulic line with SST (0K130 430 019).
Tightening torque: 9.4~15.9 lb.ft (12.7~21.5 N.m, 1.3~2.2 kg.m)
- Connect clutch master cylinder hose.
- Install fuse box.
- Install cable.
- Perform clutch hydraulic line bleeding. See HYDRAULIC FLUID BLEEDING .
- Verify that there is no leakage.
- Perform a road test.
