Clutch Pedal, Switch And Safety Switch: Removal/Replacement

Remove parts in order shown in figure below.
Inspect all parts and repair or replace as necessary.
NOTE: Apply a thin coat of lithium grease to bushing and pins before installation.
Install in reverse order of removal.

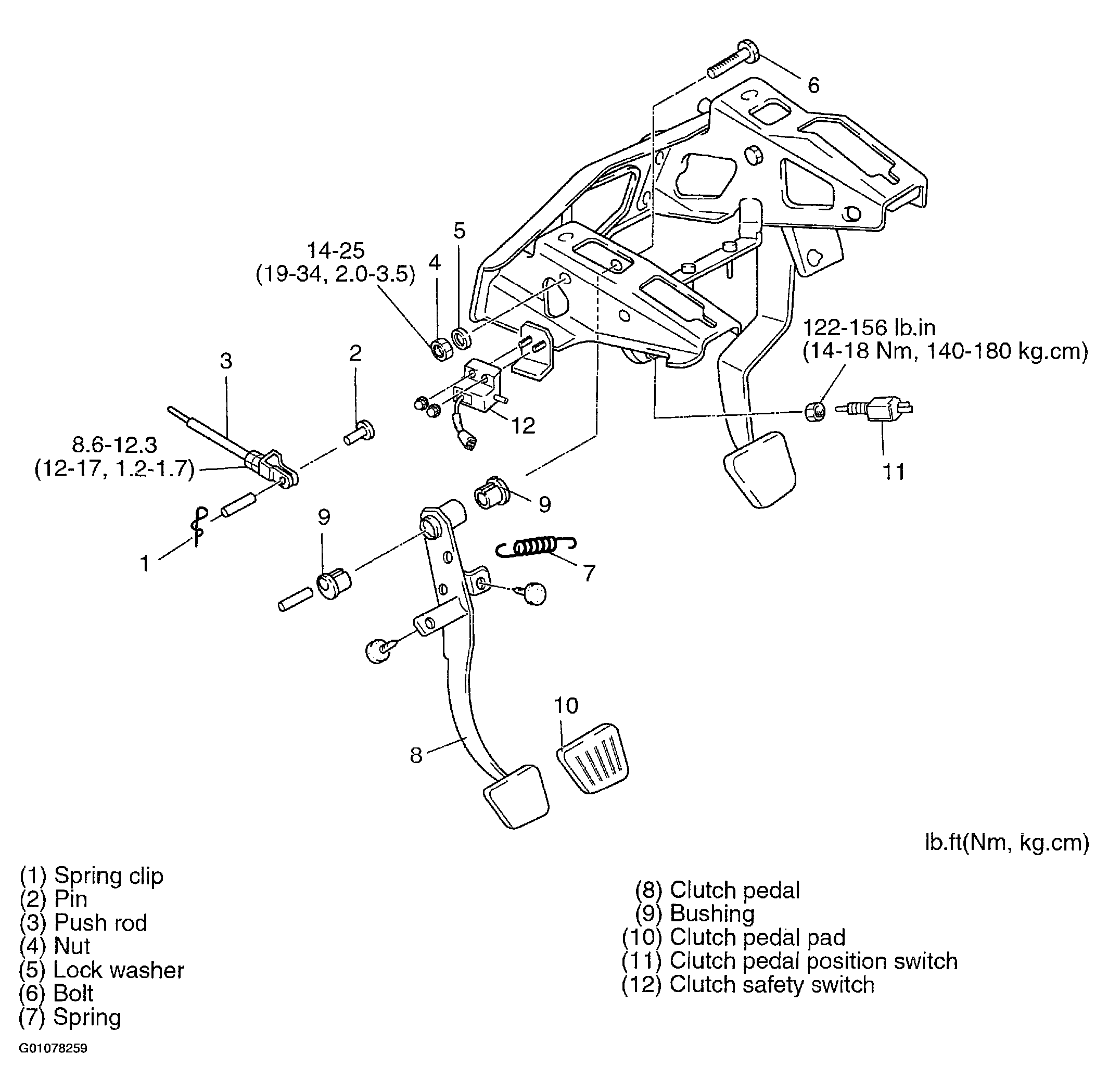

Fig 1: Illustrating Clutch Pedal Components
Courtesy of KIA MOTORS AMERICA, INC.
