Clutch Release Cylinder: Component

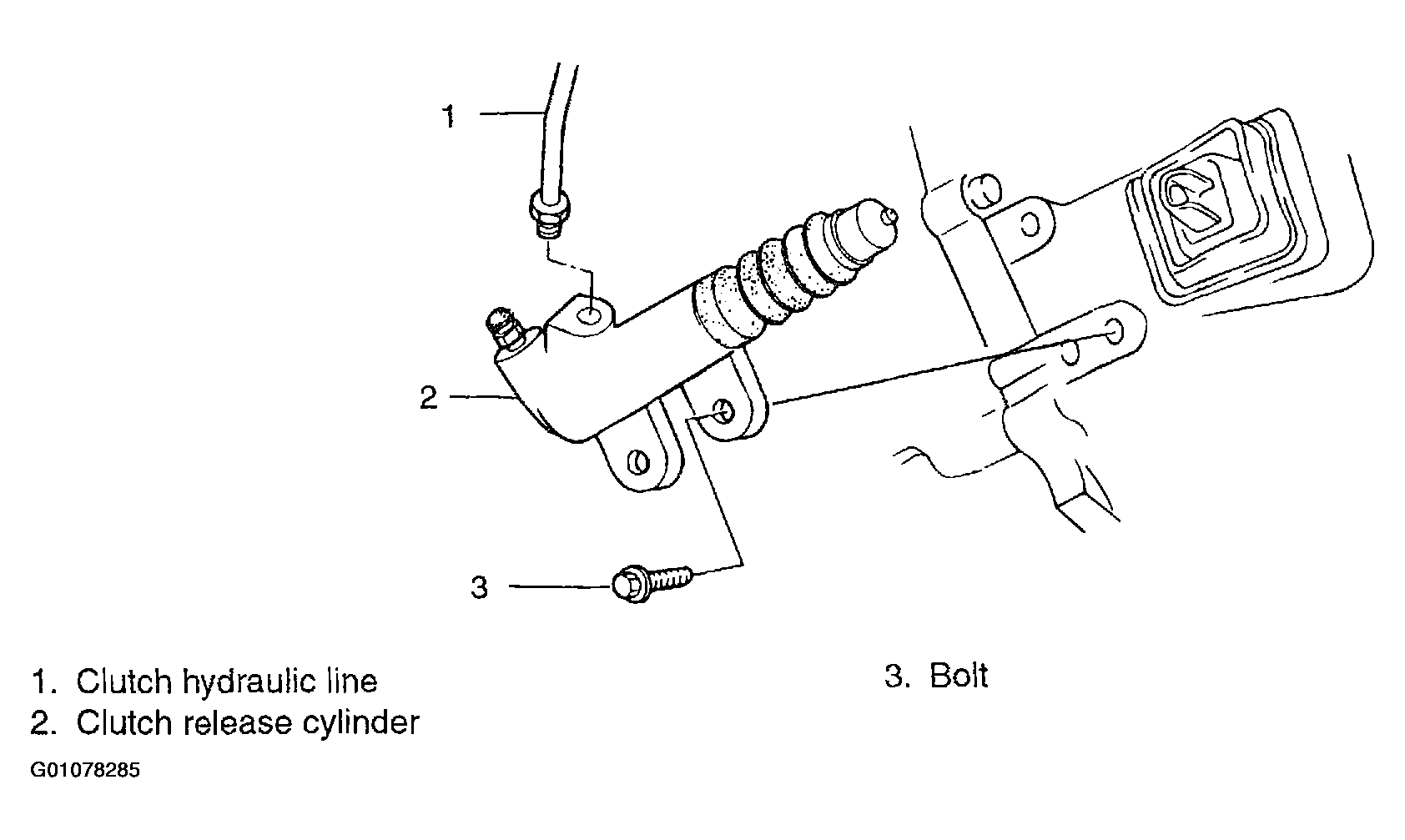

Fig 1: Illustrating Clutch Release Cylinder Components

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Clutch fluid will damage painted surfaces. Be sure to use a container or shop towels to collect it.
If fluid contacts a painted surface, rinse immediately with clear water to prevent damage.

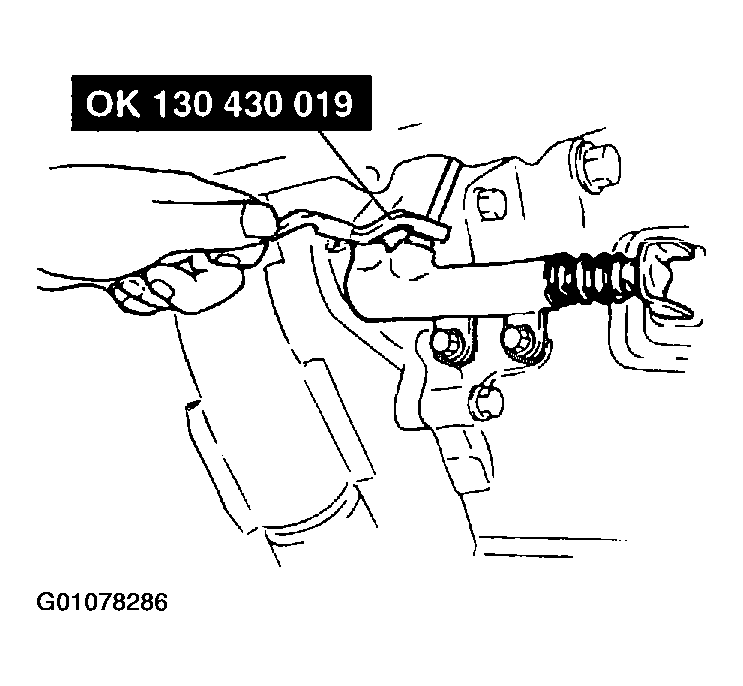

Fig 2: Disconnecting Clutch Release Cylinder Line

Courtesy of KIA MOTORS AMERICA, INC.
