I-1b

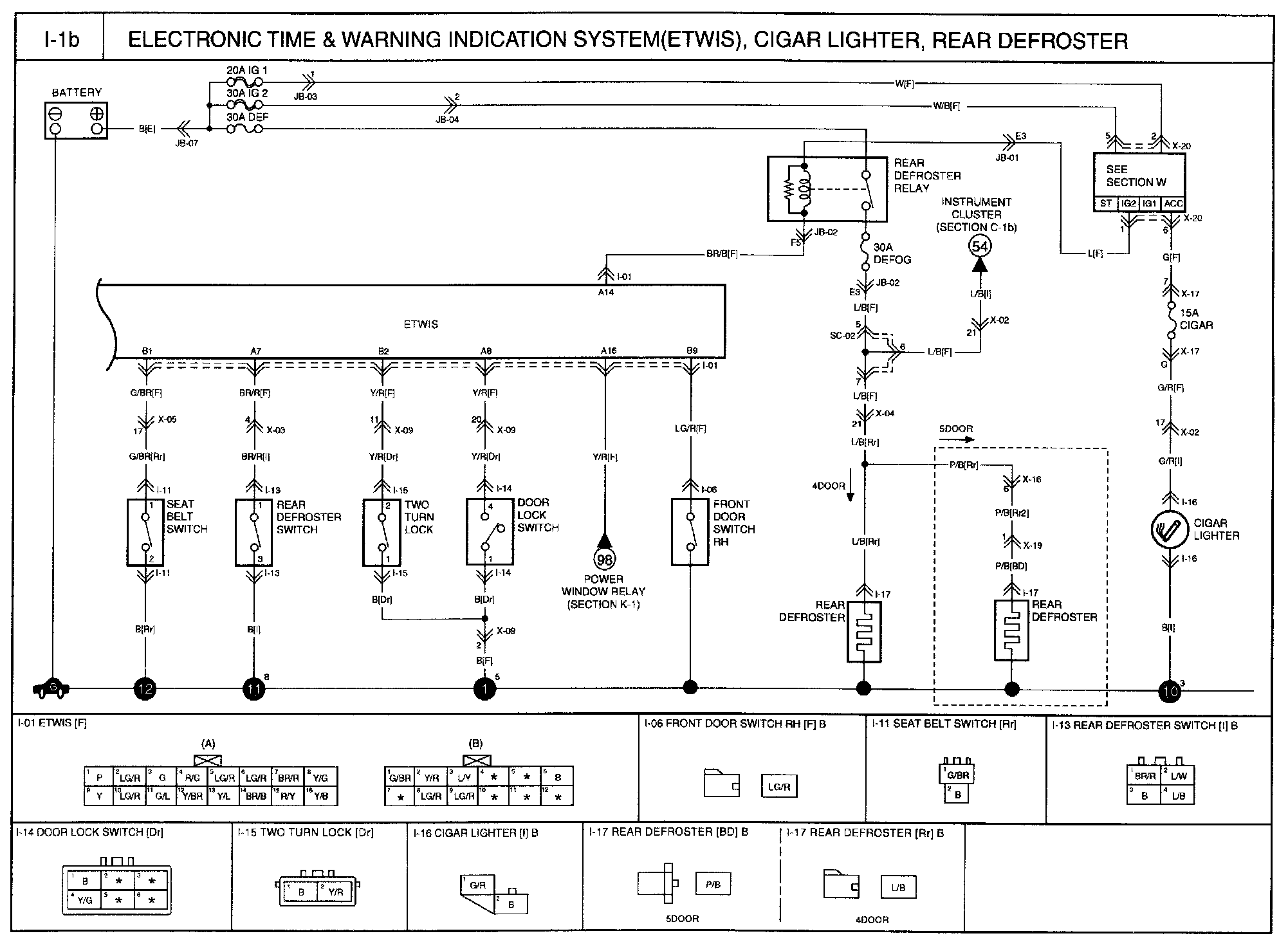

I-1b - Electrical Time & Warning Indication System(ETWIS), Cigar Lighter, Rear Defroster Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
