How to Replace Terminals

Replacement of terminals

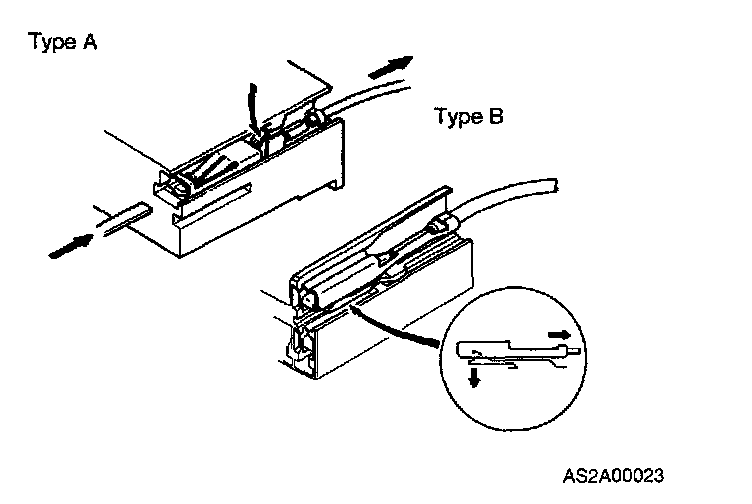

Use appropriate tools to remove terminal as shown.
When installing the terminal, insert it until it locks securely.

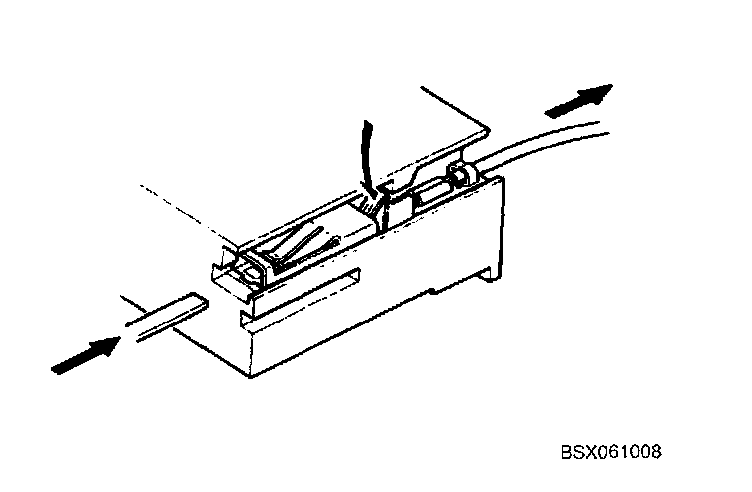

Insert a thin piece of metal from the terminal side of the connector, and then, with the terminal locking tab pressed down, pull the terminal out of the connector.





Follow the same procedure as female-type terminal.
