Automatic Transmission/Transaxle

AUTOMATIC TRANSAXLE HYDRAULIC CIRCUIT

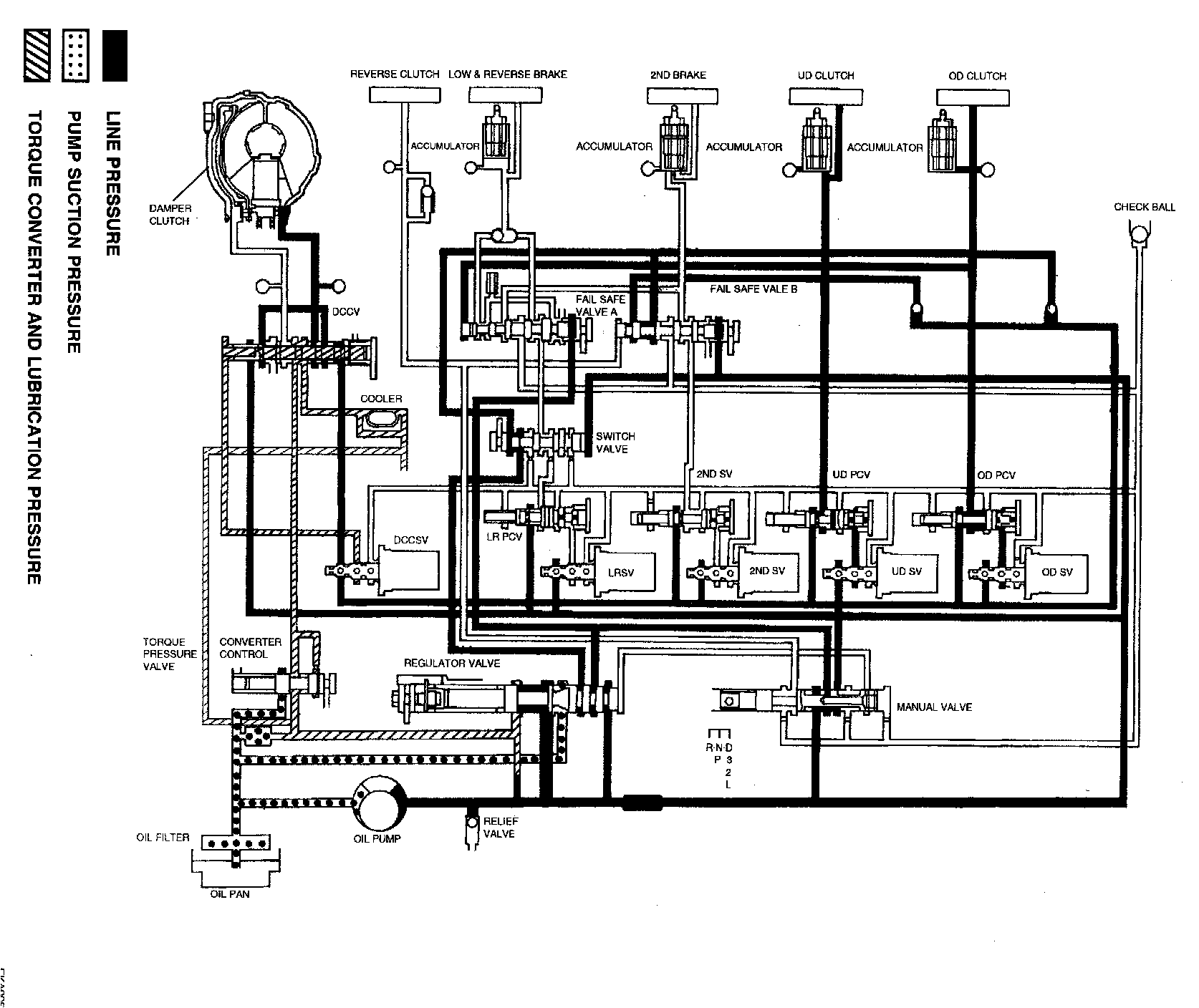

PARKING & NEUTRAL

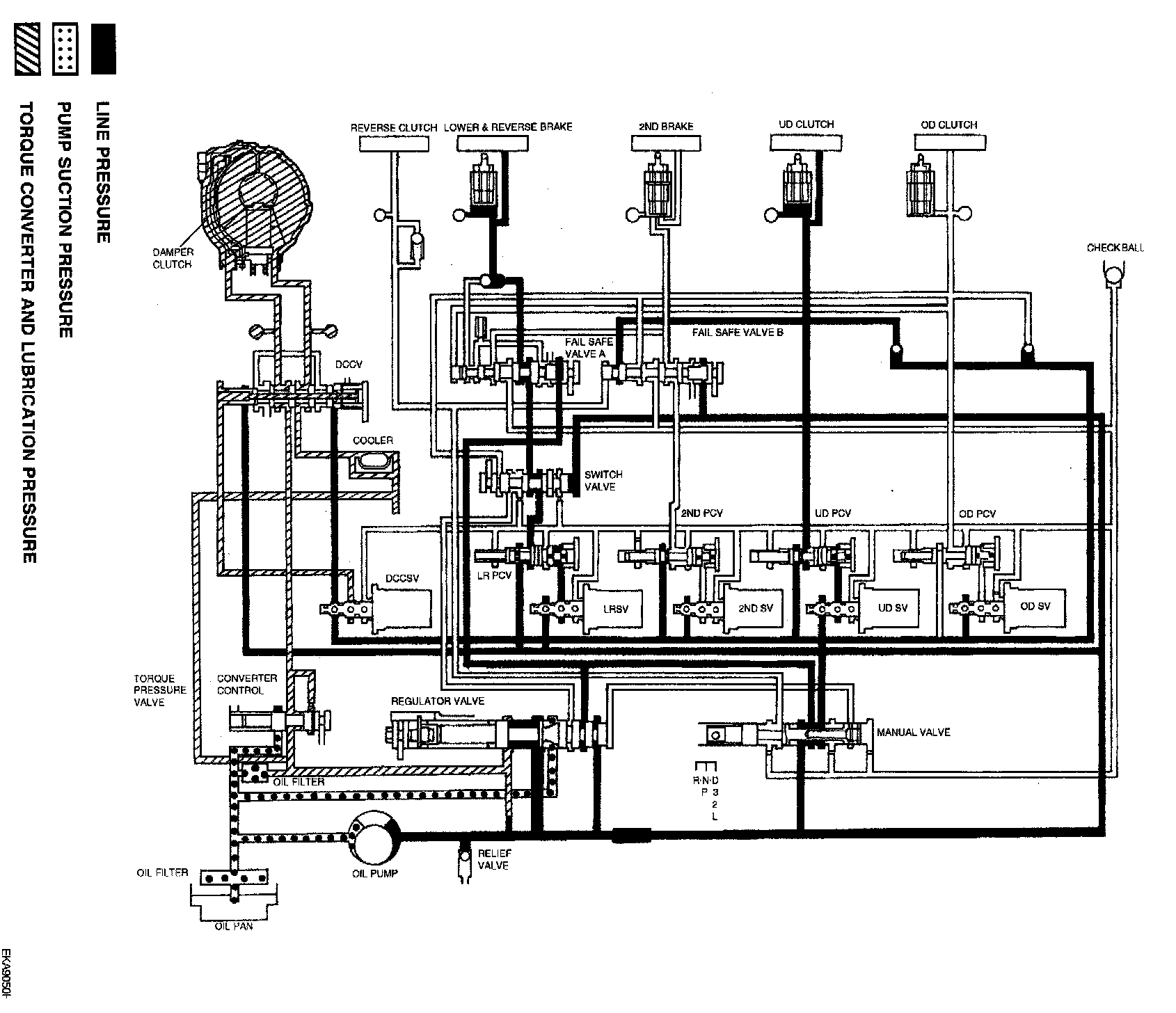

FIRST

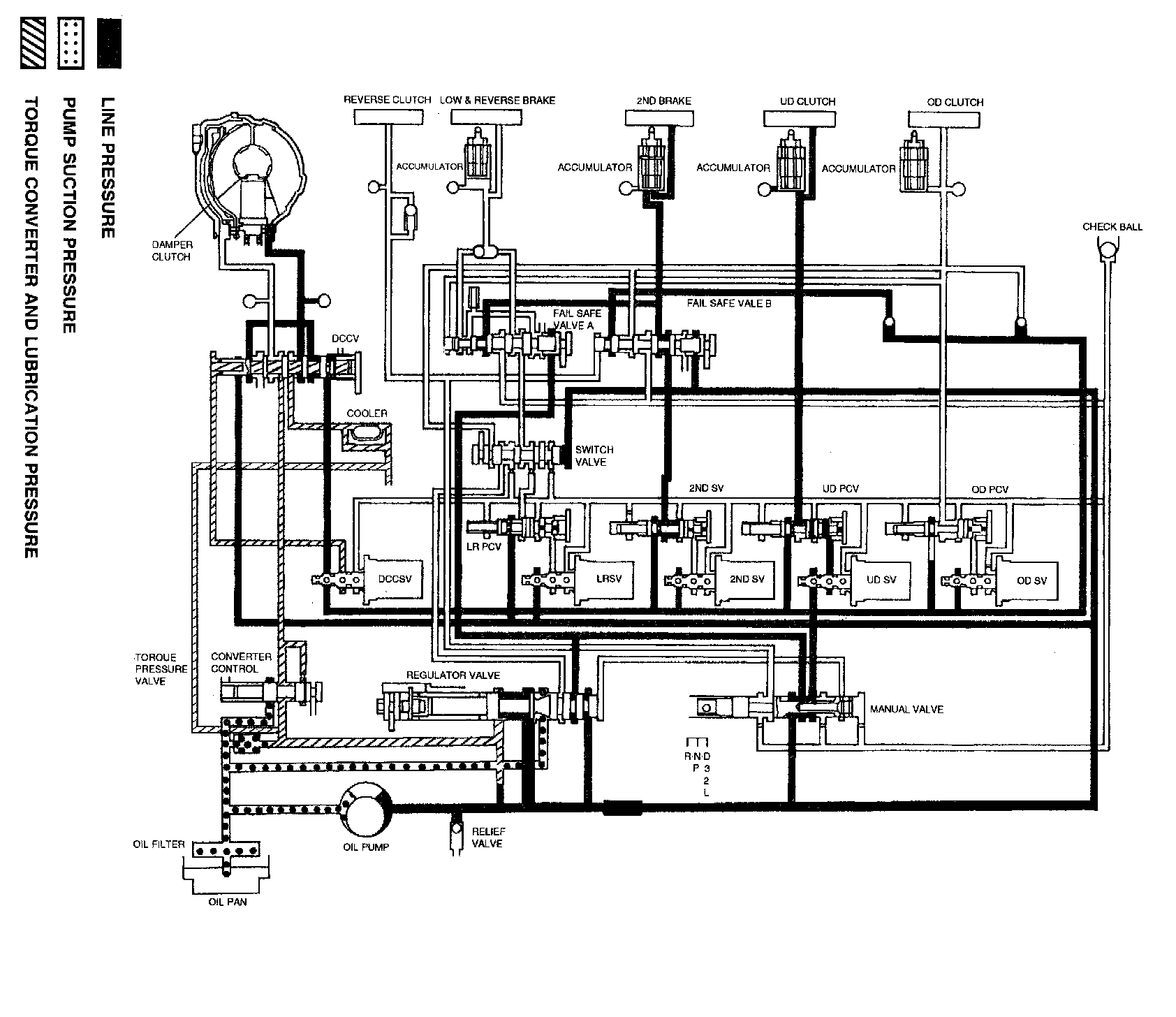

SECOND

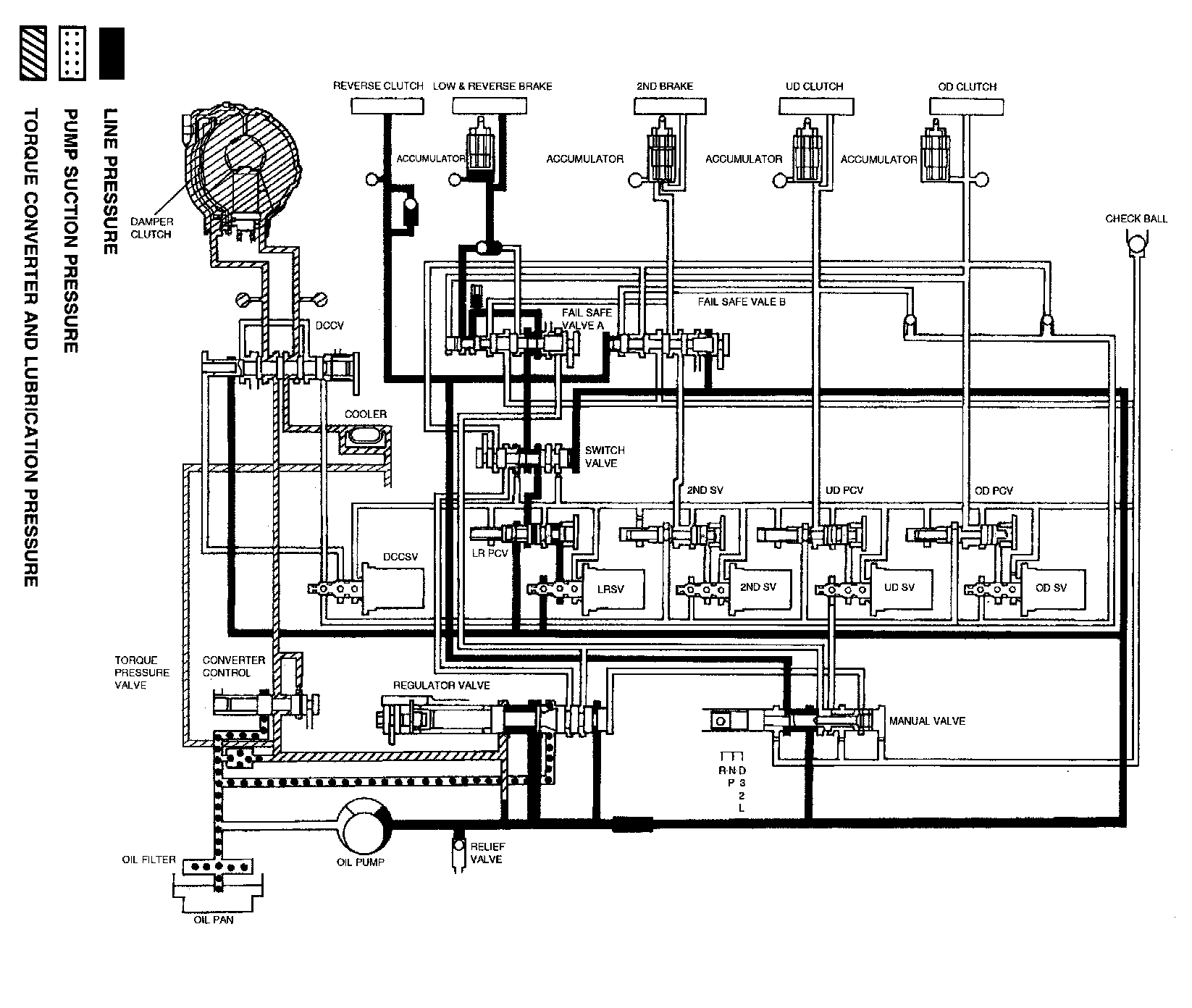

THIRD

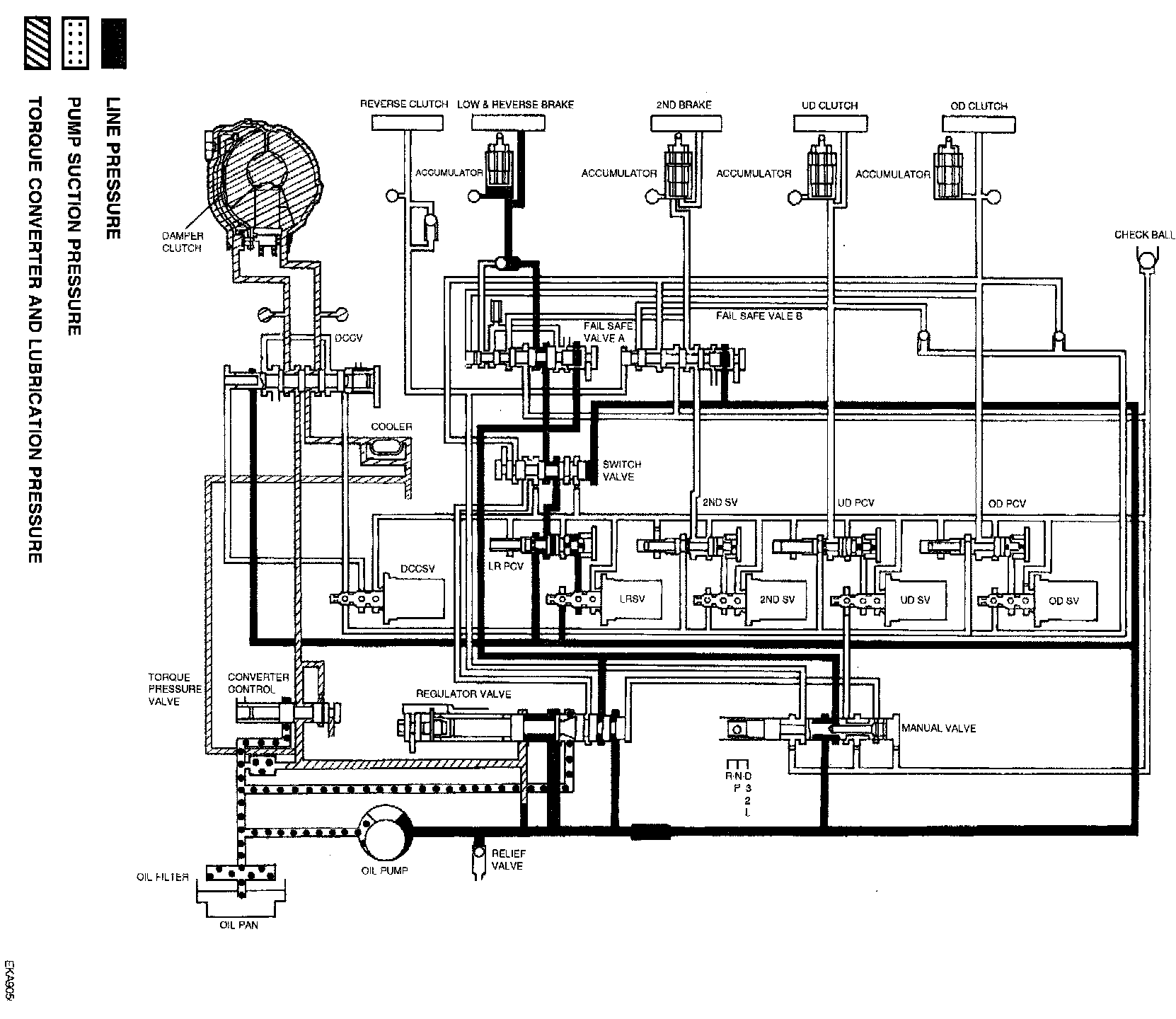

FOURTH

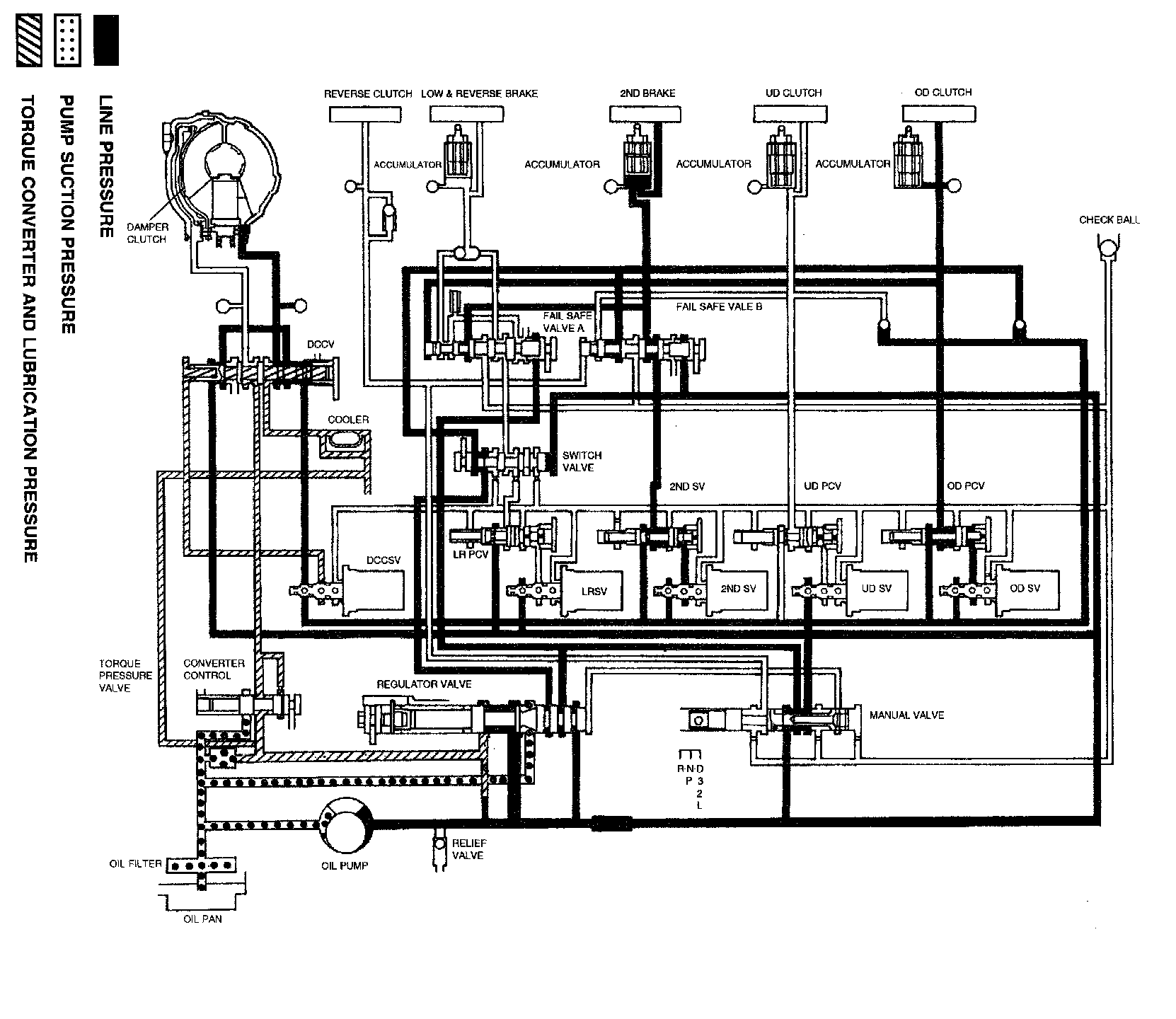

REVERSE
