Compressor HVAC: Service and Repair

REMOVAL AND INSTALLATION

1. Remove the drive belt after loosening the tension pulley.
2. Discharge the refrigerant.
3. Remove the discharge and suction hoses.

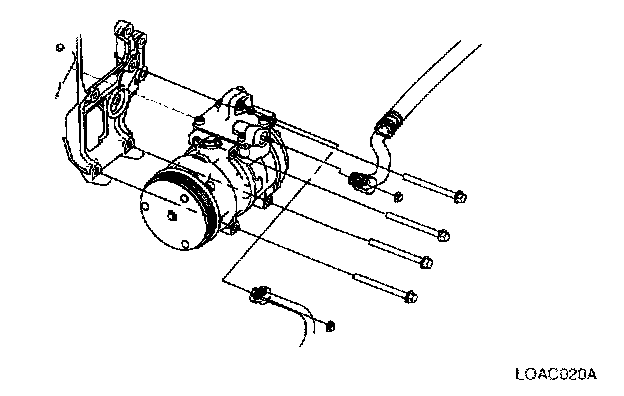

4. Remove the compressor.
5. Installation is the reverse of removal.

Tightening torque 20 - 30 N.m (2.0 - 3.0 kg.m, 14 - 21 lb.ft)
