Solar Sensor: Testing and Inspection

CHECKING

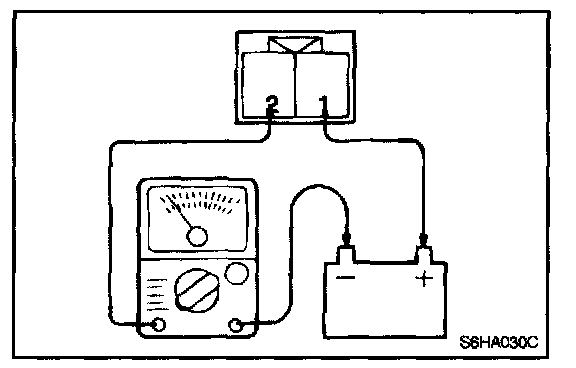

1. In bright place, measure ampere between pin 2 and battery (-) terminal.
2. In dark place, measure ampere between pin 2 and battery (-) terminal.




3. Check the ampere in the bright place is higher than in the dark.

NOTE: The voltage is same as the ampere.
