Power Distribution - Memory Fuse Installation

SOURCE: Kia Technician Times

TITLE: Memory Fuse Installation

APPLIES TO: All models

SERVICE TIP:






KMA has received reports of various intermittent electrical concerns related to sub-systems such as audio, door lock, and/or interior lighting, due to incompletely inserted "memory" fuses. (Note that this fuse is sometimes also referred to as the "audio" fuse)

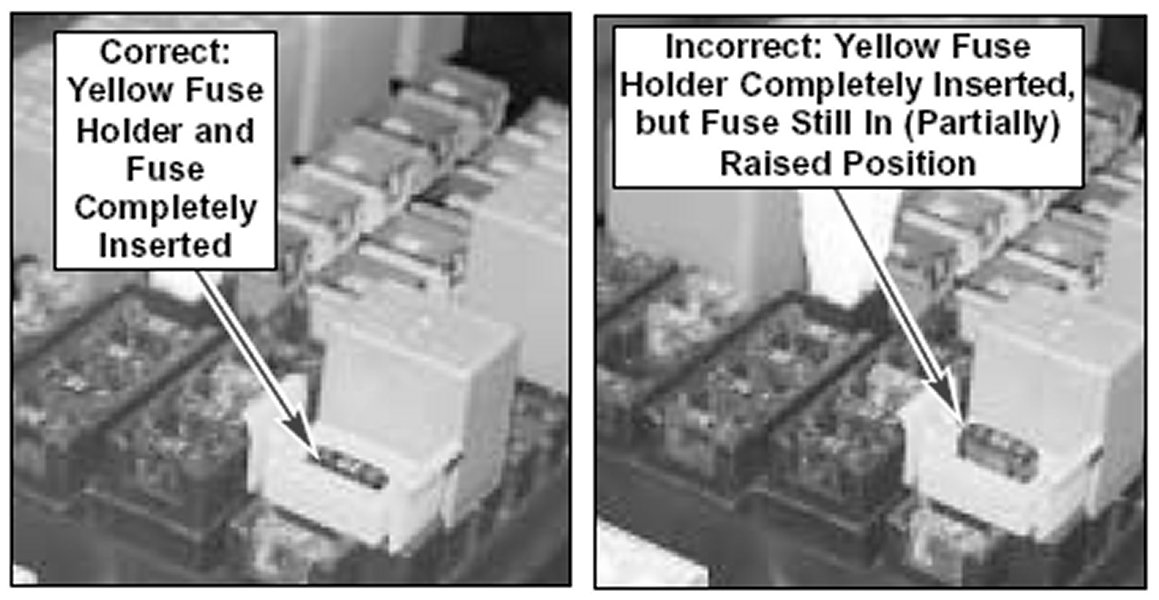

Whenever you re-install the memory fuse, make sure it is fully inserted. Otherwise, even with the yellow fuse holder itself depressed all the way, there is a possibility of poor and intermittent contact unless the fuse itself is also pressed down.
