Connector Locations

Routing View A-1:

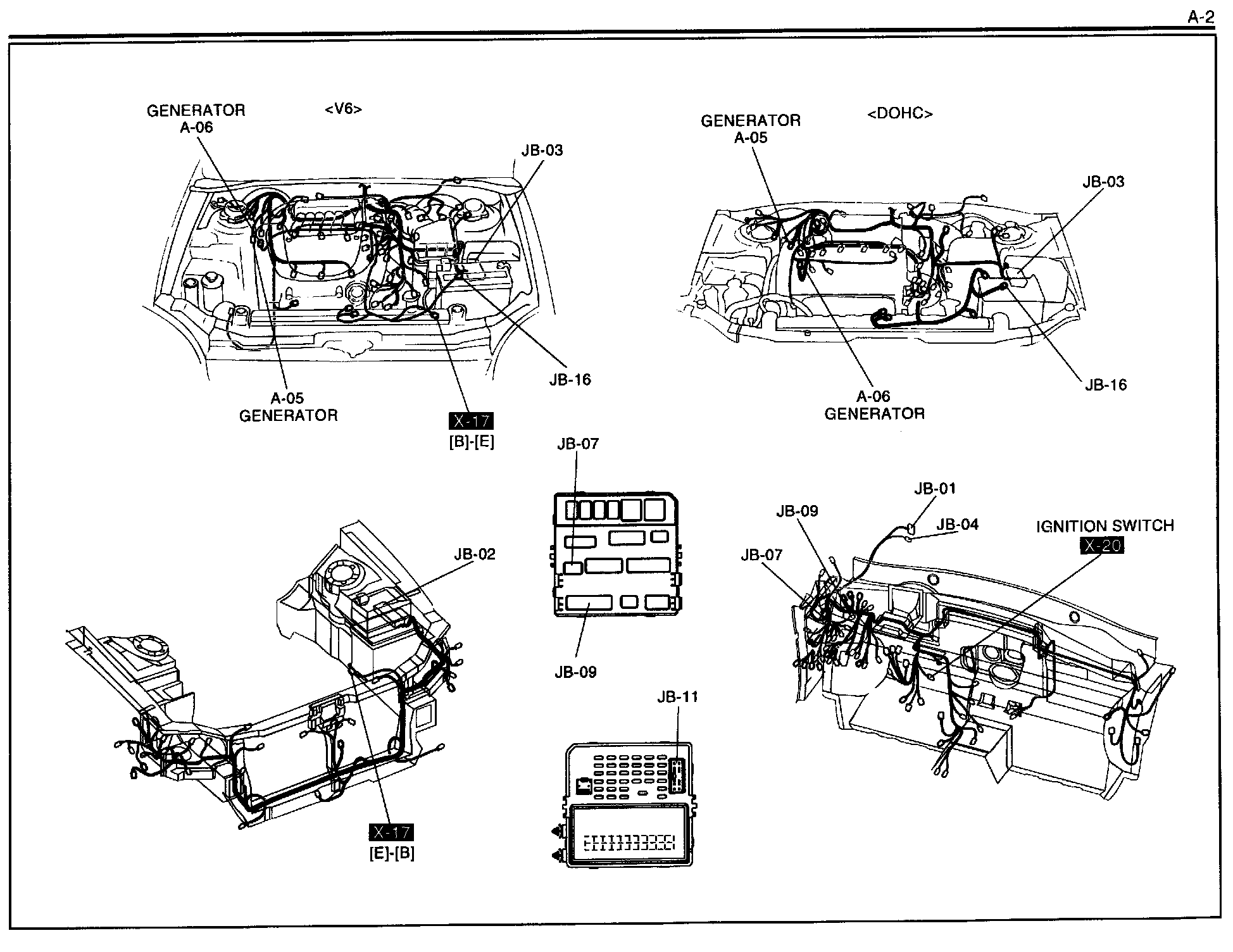

Routing View A-2:

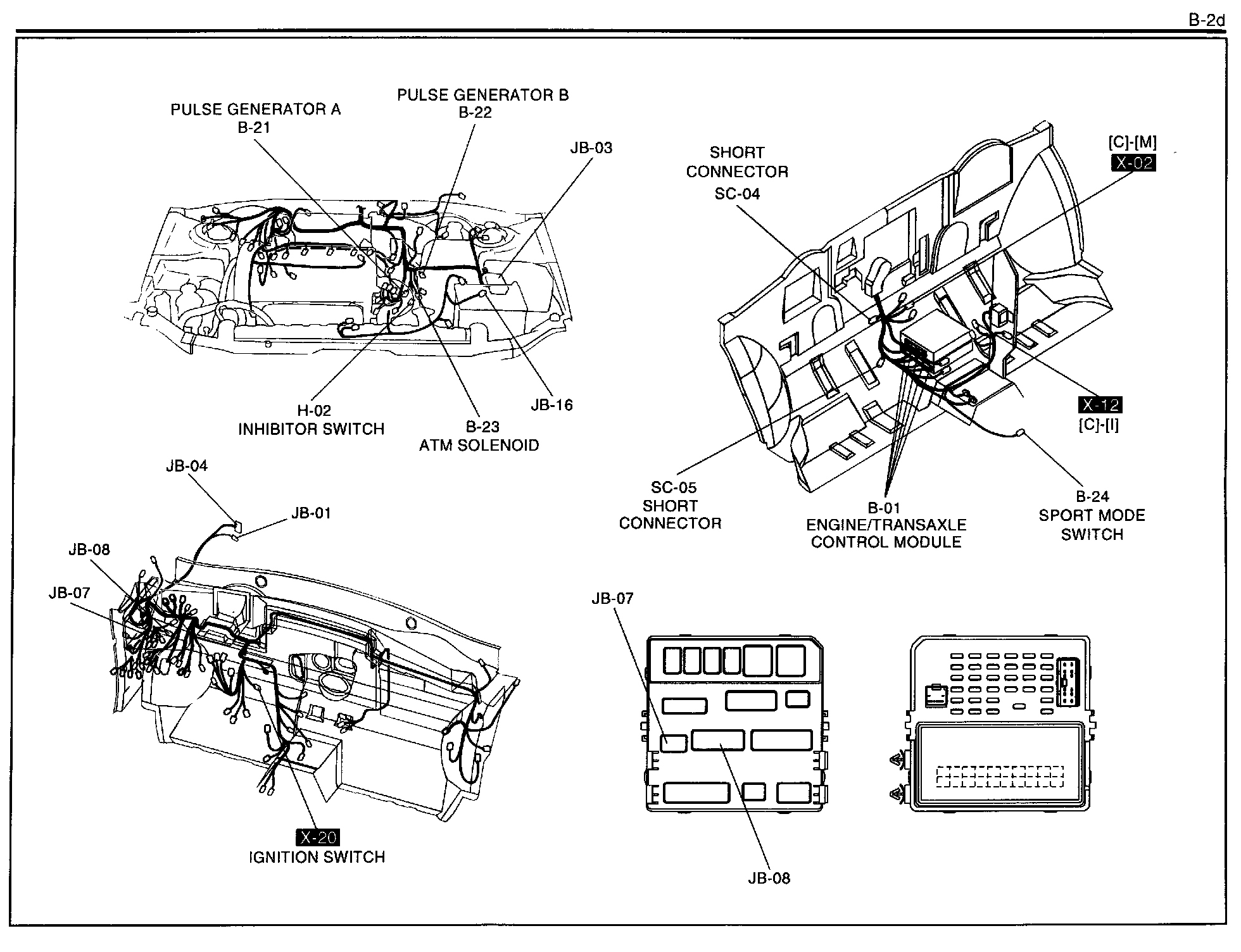

Routing View B-2d:

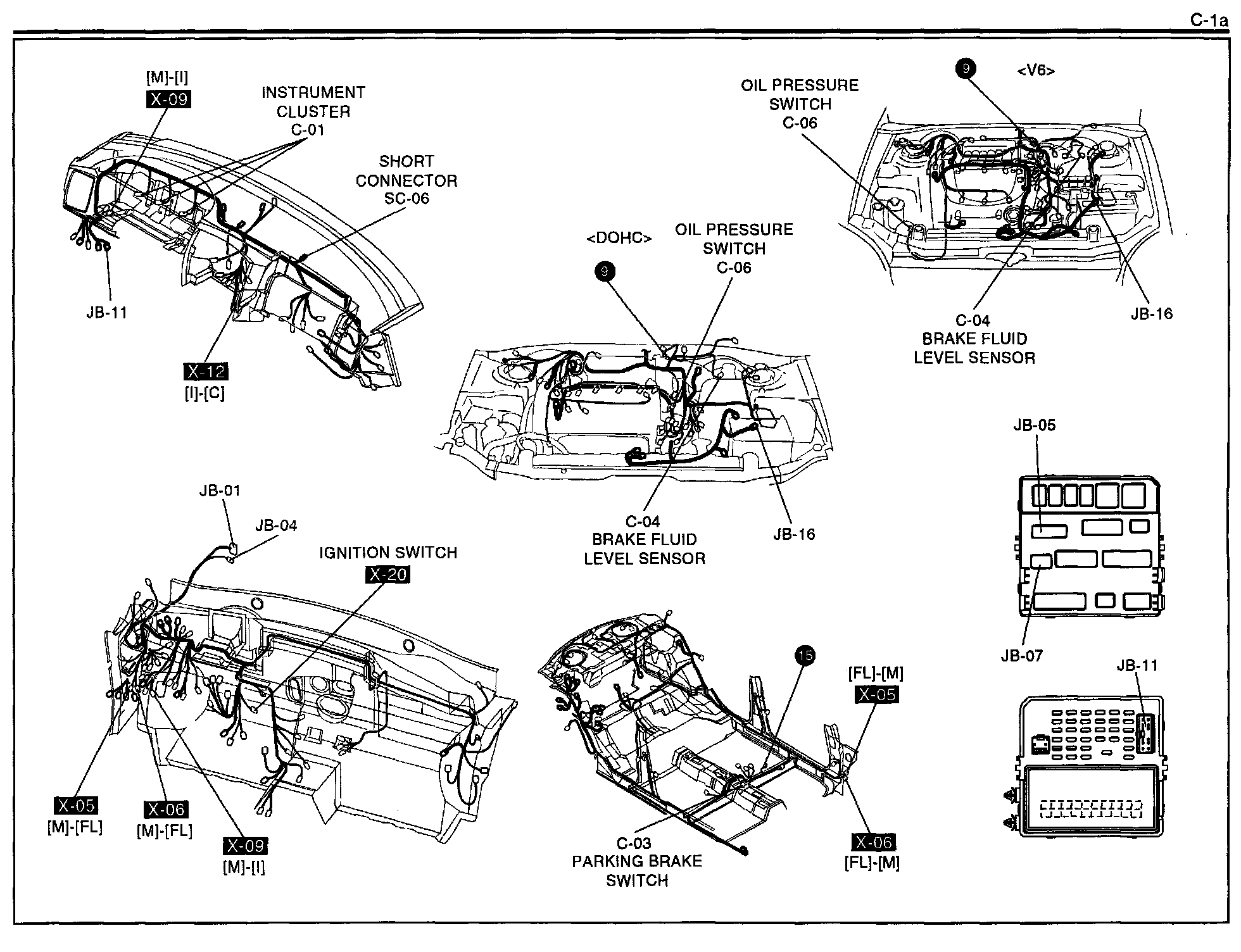

Routing View C-1a:

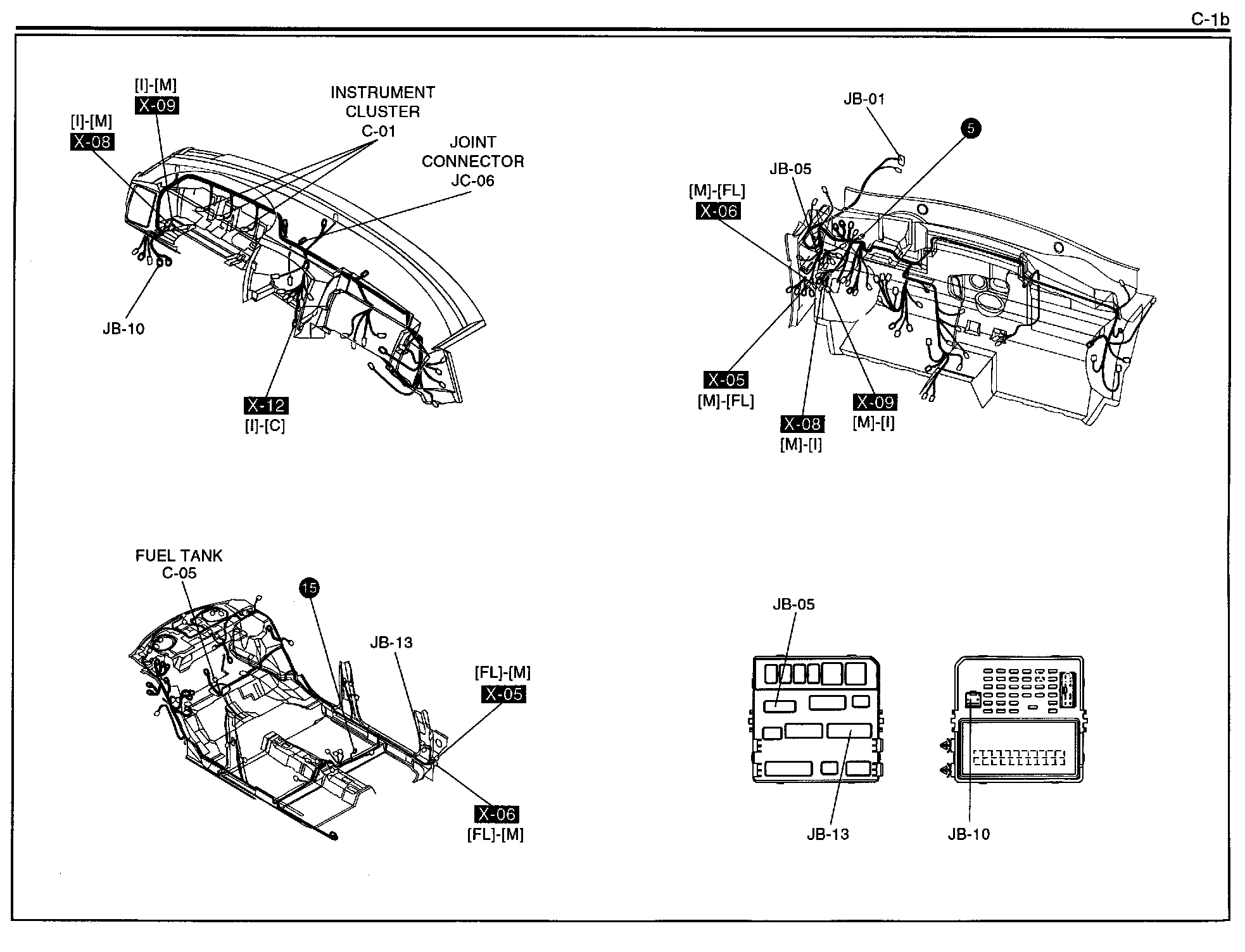

Routing View C-1b:

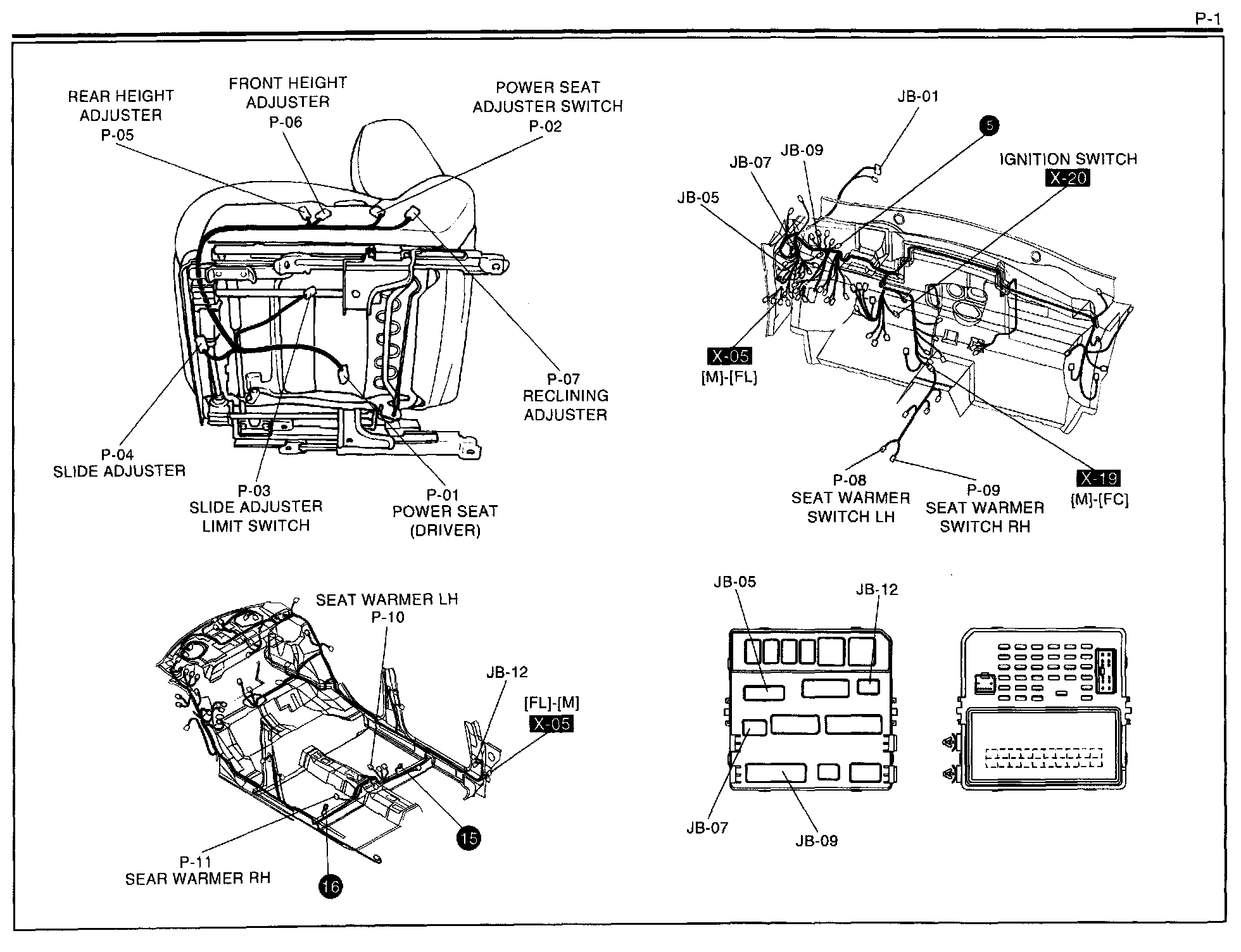

Routing View P-1:




Routing View Q:




Routing View T:
