Transmission Position Sensor/Switch: Locations

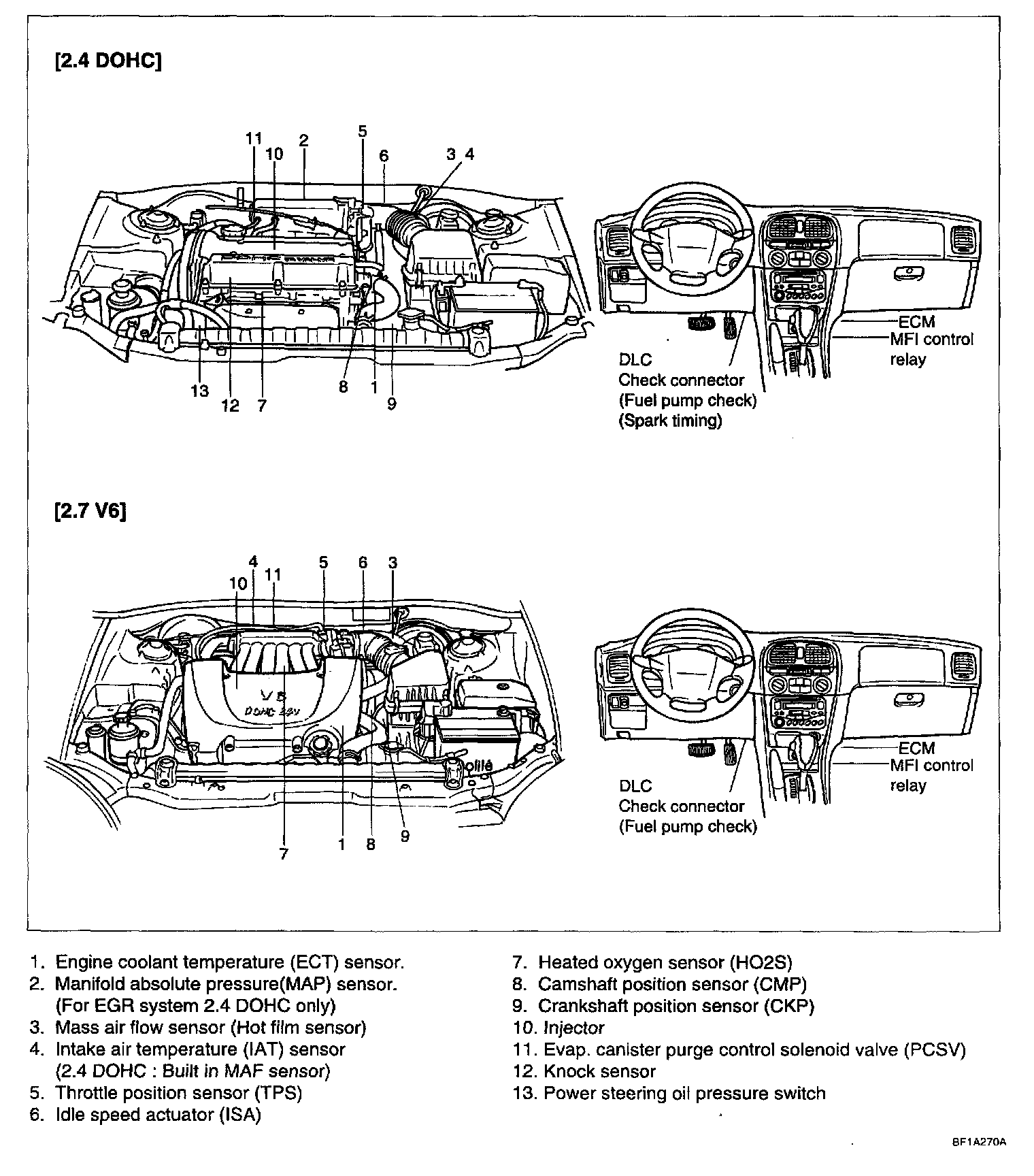

MFI Component Location:

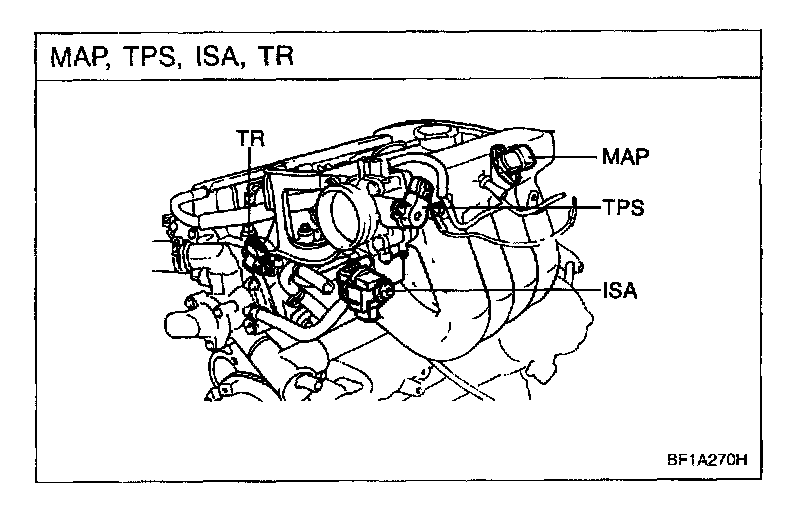

MAP, TPS, ISA, TR:

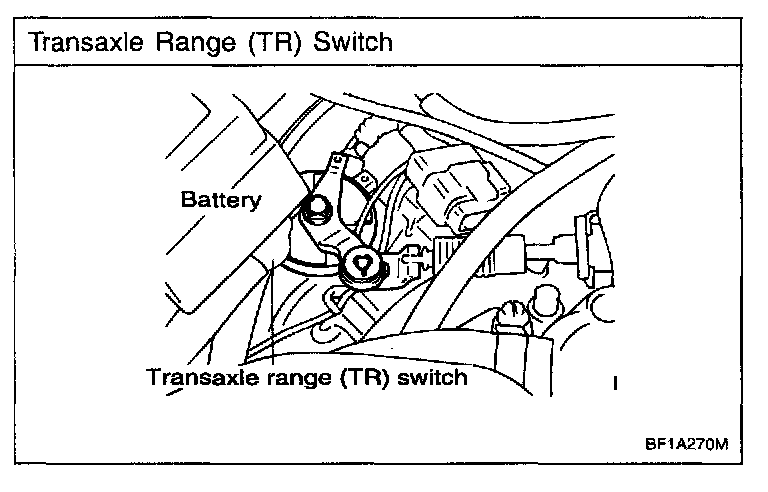

Transaxle Range (TR) Switch:
