Transfer Drive Gear

TRANSFER DRIVE GEAR

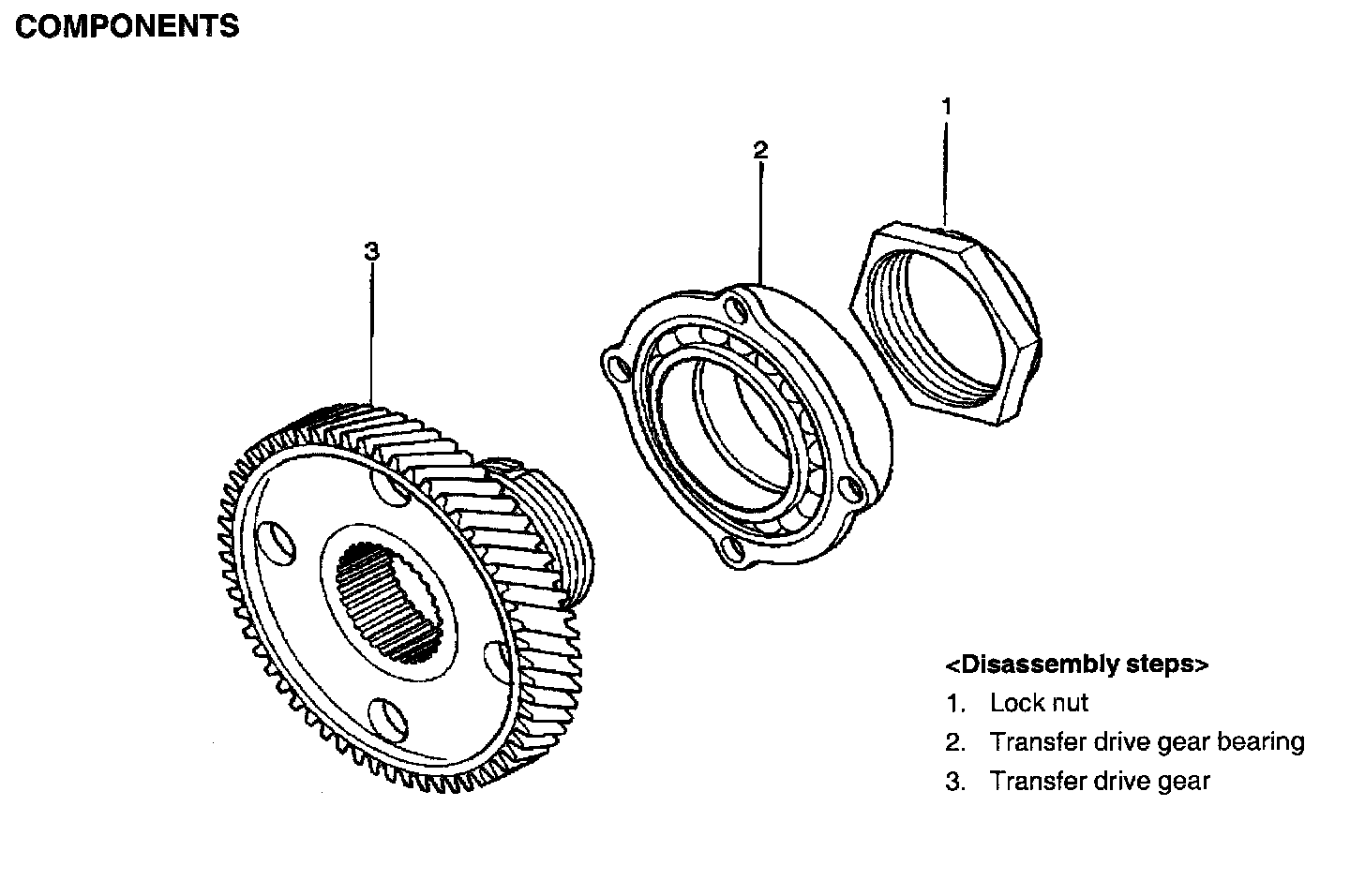

DISASSEMBLY





1. Loosen the lock nut caulking.





2. Remove the lock by using socket.

REASSEMBLY





1. Apply ATF to the new lock nut and tighten to the specified torque. And loosen 1 turn and tighten to the specified torque again





2. Caulk the lock nut by using punch.
