Vehicle Speed Sensor

VEHICLE SPEED SENSOR

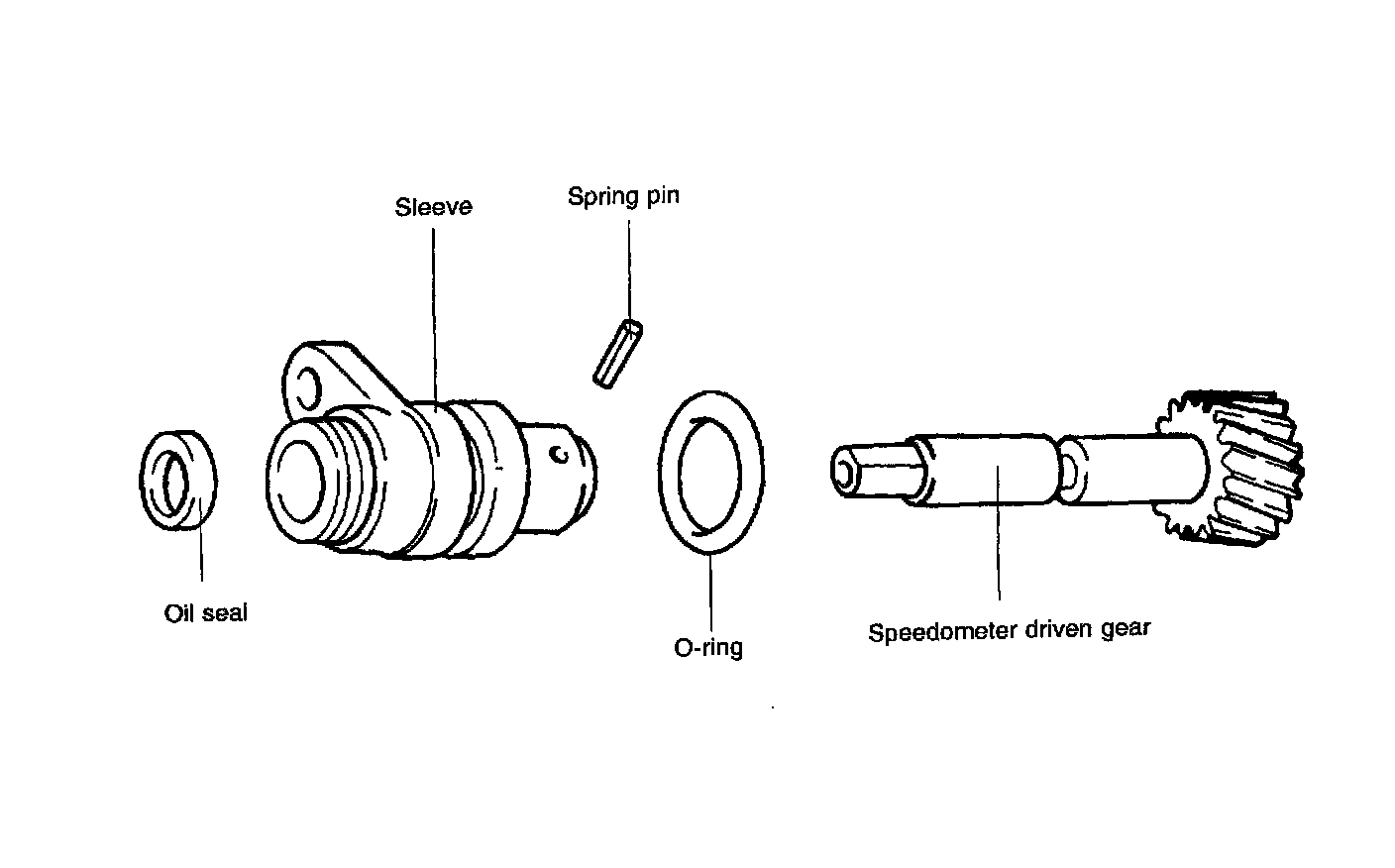

COMPONENTS





1. Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.

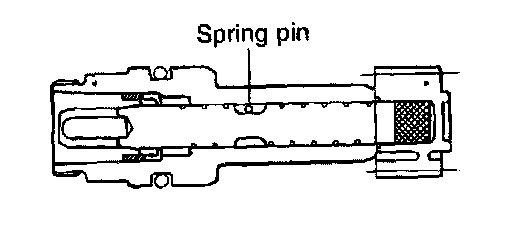

2. Install the spring pin in such a way the slit does not face the gear shaft.
