Power Window Switch: Testing and Inspection

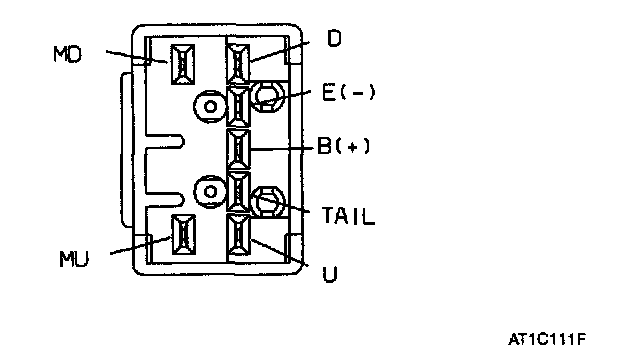

POWER WINDOW MAIN SWITCH







1. Remove the switch from the door trim panel.

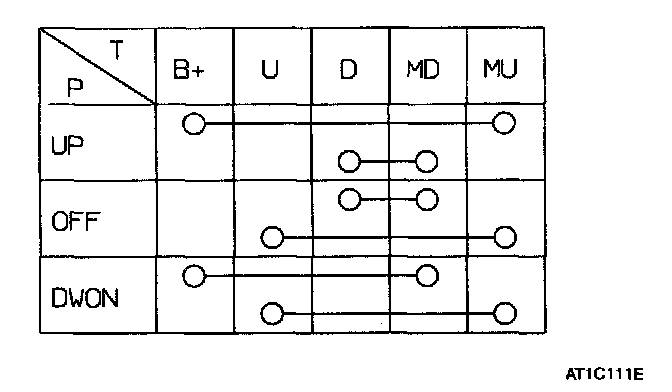

2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

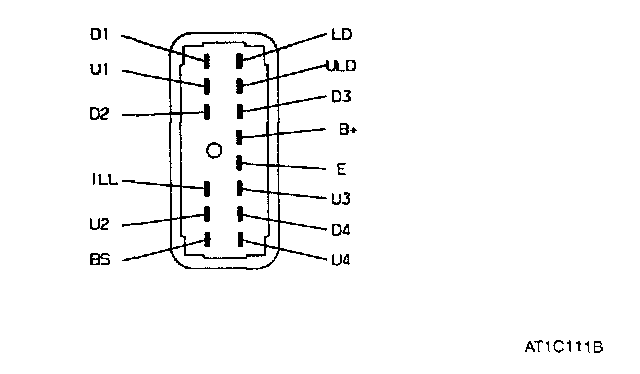

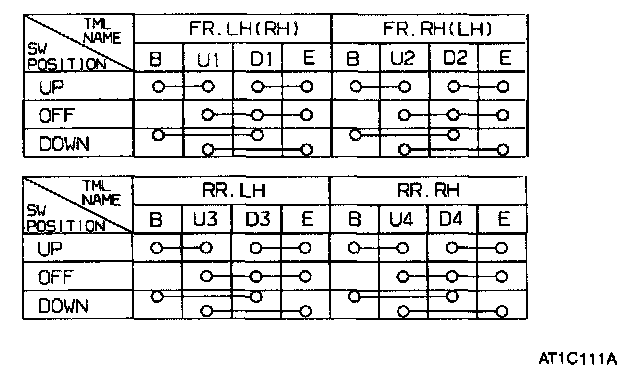

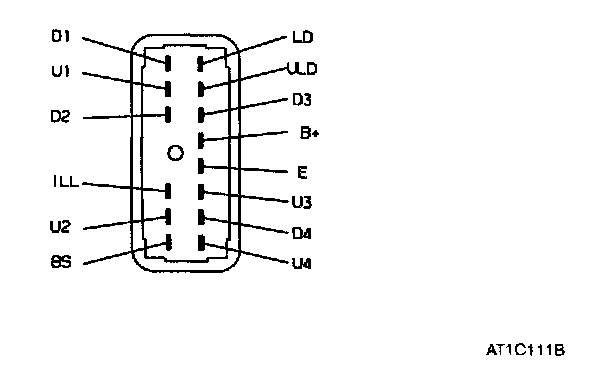

POWER WINDOW SUB SWITCH

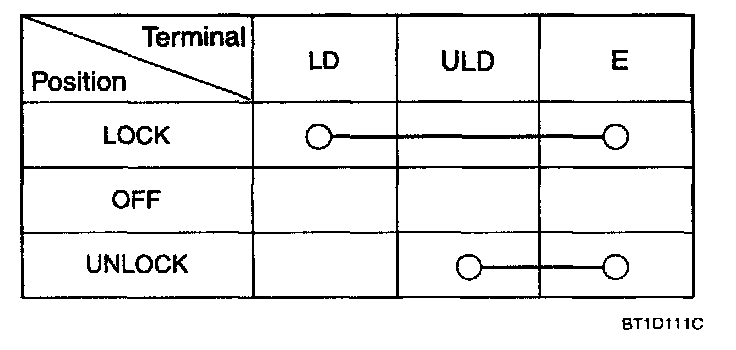

DOOR LOCK SWITCH
