Accelerator Pedal: Components

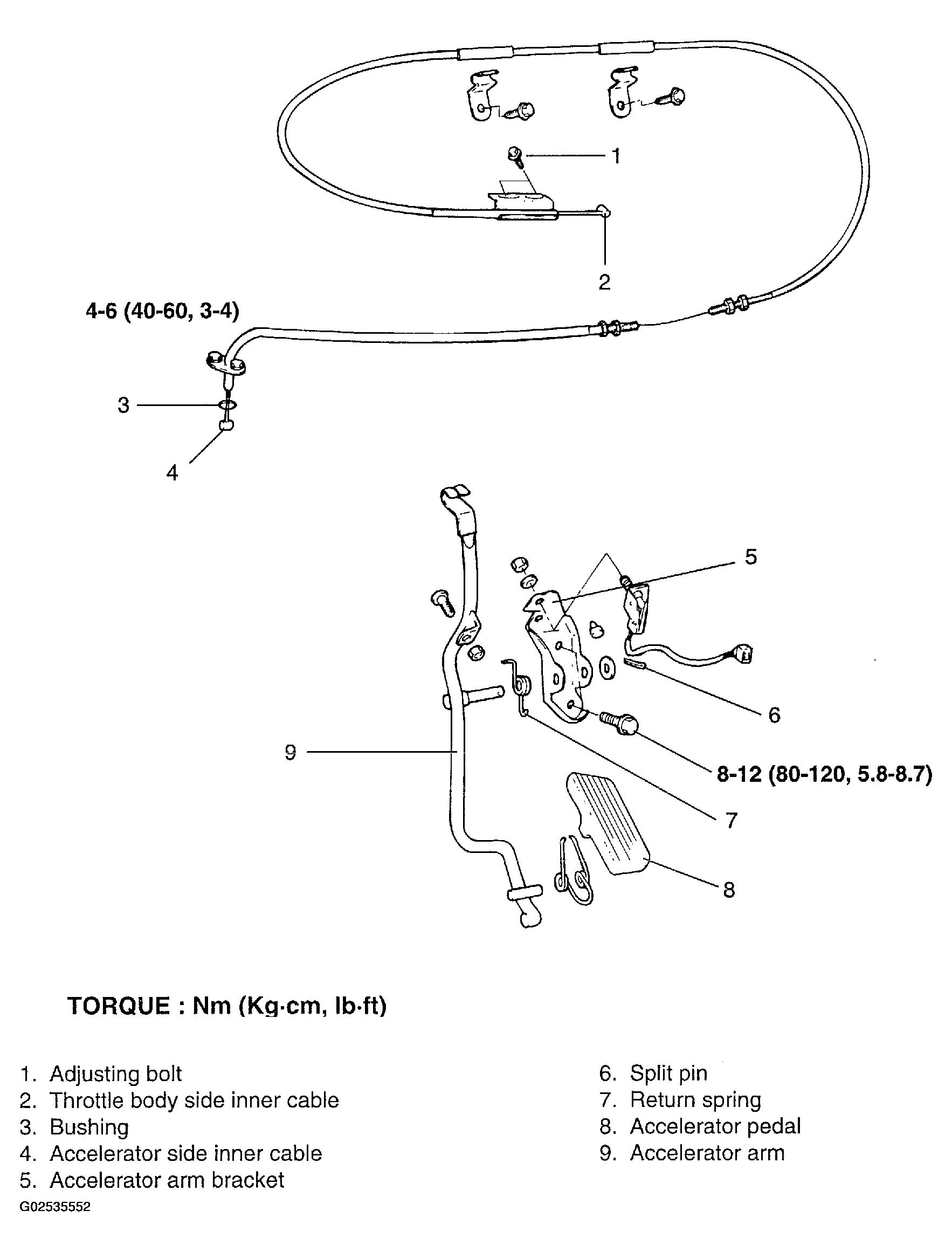

Fig 1: Illustrating Accelerator Pedal Components (1 Of 2)
G02535552Courtesy of KIA MOTORS AMERICA, INC.

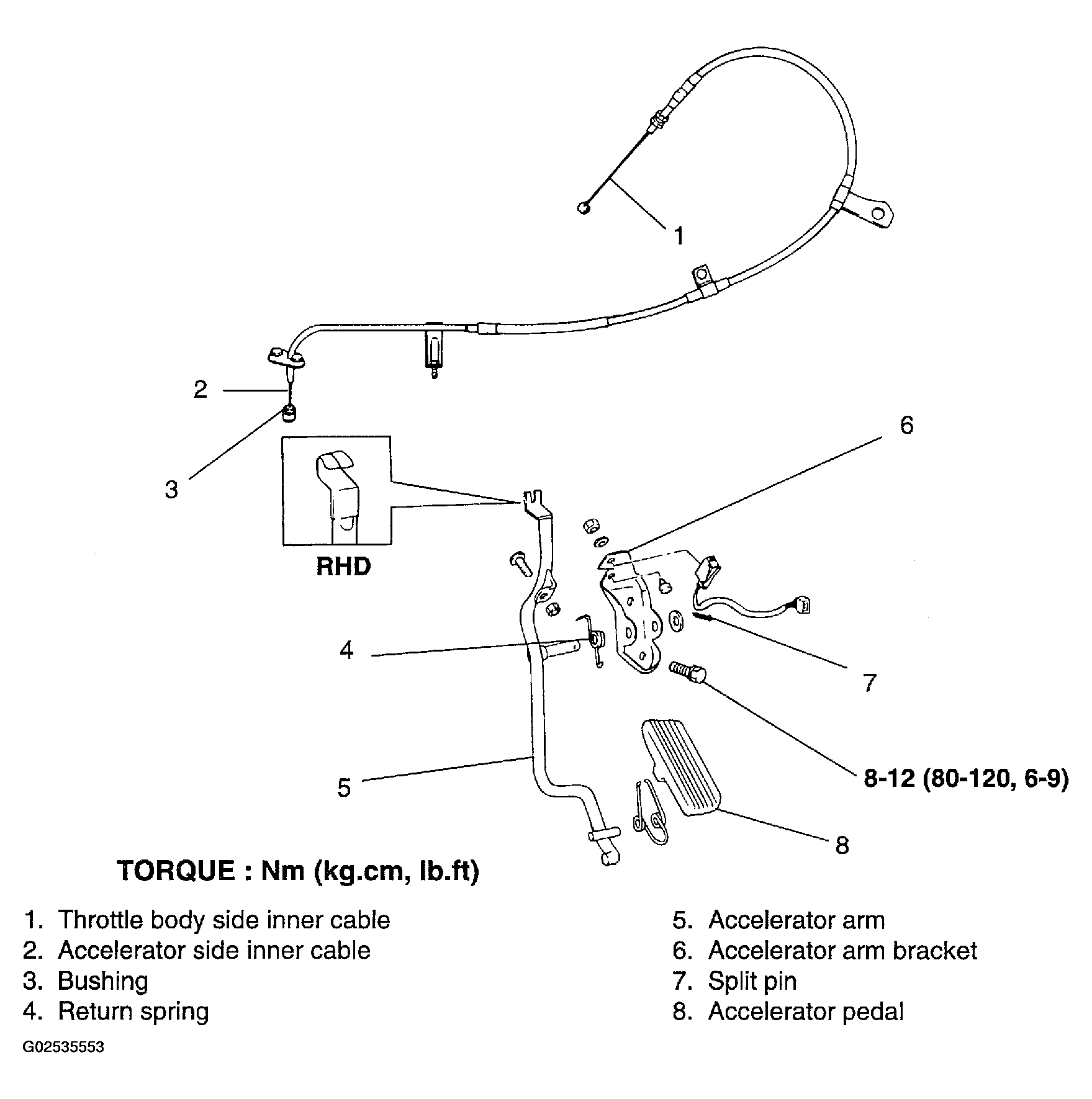

Fig 2: Illustrating Accelerator Pedal Components (2 Of 2)
G02535553Courtesy of KIA MOTORS AMERICA, INC.
