Fuel Injector: Inspection

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    Resistance : 13.8~15.2 Ω [at 20°C (68°F)]

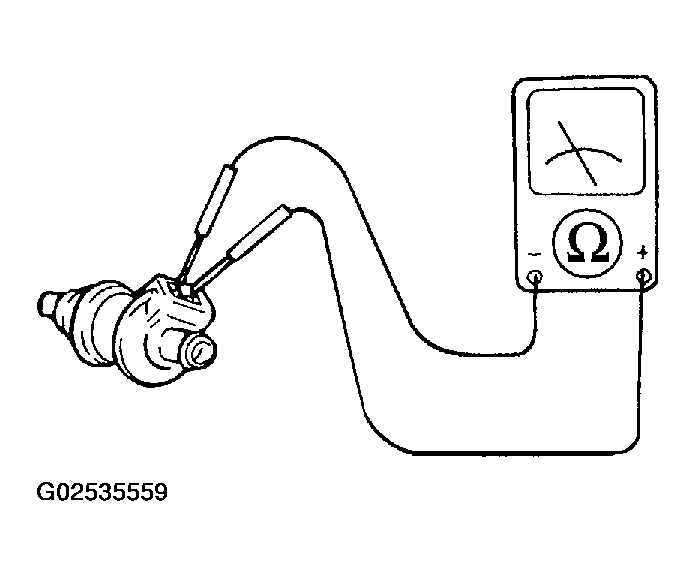

    Fig 1: Measuring Fuel Injector Resistance
    G02535559Courtesy of KIA MOTORS AMERICA, INC.
  2. If the resistance is not within specifications, replace the injector.
