Power Window Sub Switch

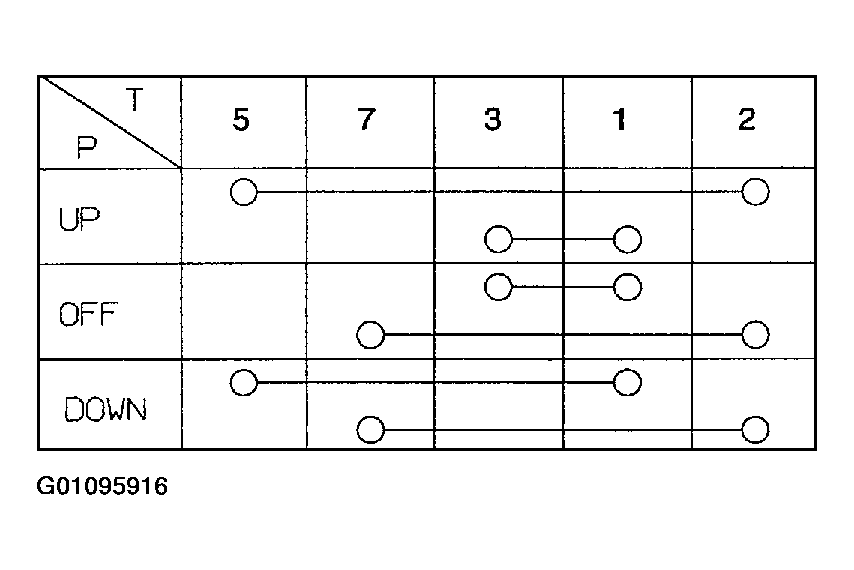

Fig 1: Power Window Sub Switch Function Chart
Courtesy of KIA MOTORS AMERICA, INC.

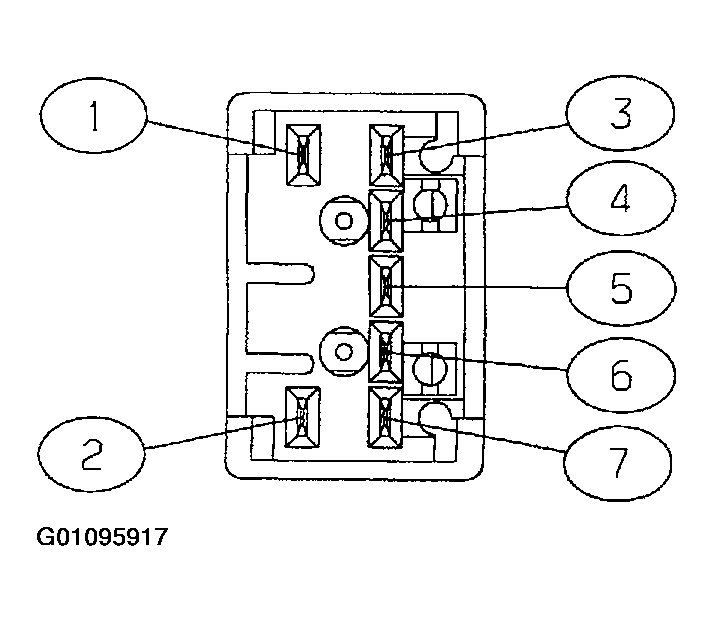

Fig 2: Power Window Sub Switch Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
