Front Wheel Speed Sensor: Inspection

  1. Measure the resistance of the ABS sensor.

    Resistance: 1.3~1.5 Kohm

  2. Replace ABS sensor, if necessary.

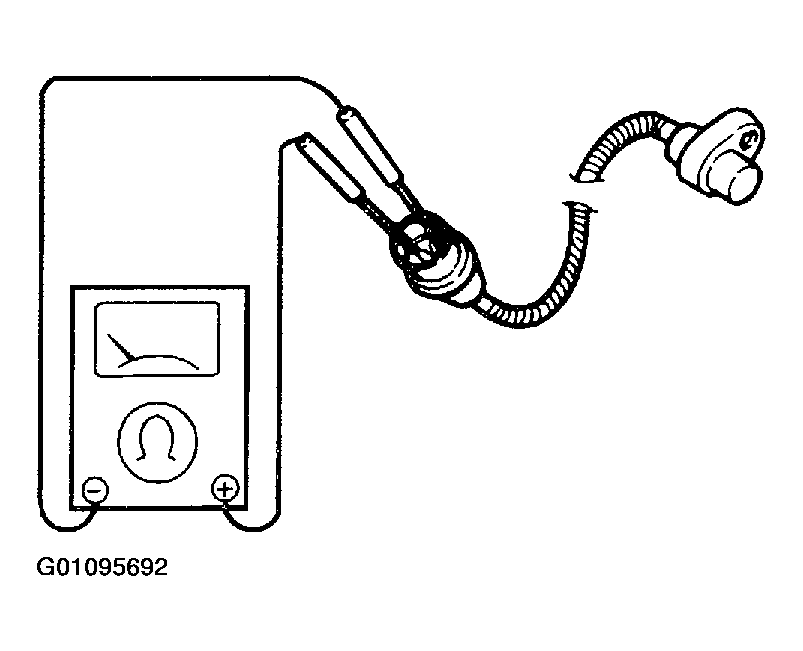

    Fig 1: Measuring ABS Sensor Resistance
    G01095692Courtesy of KIA MOTORS AMERICA, INC.
