Anti Lock: Wiring Diagram

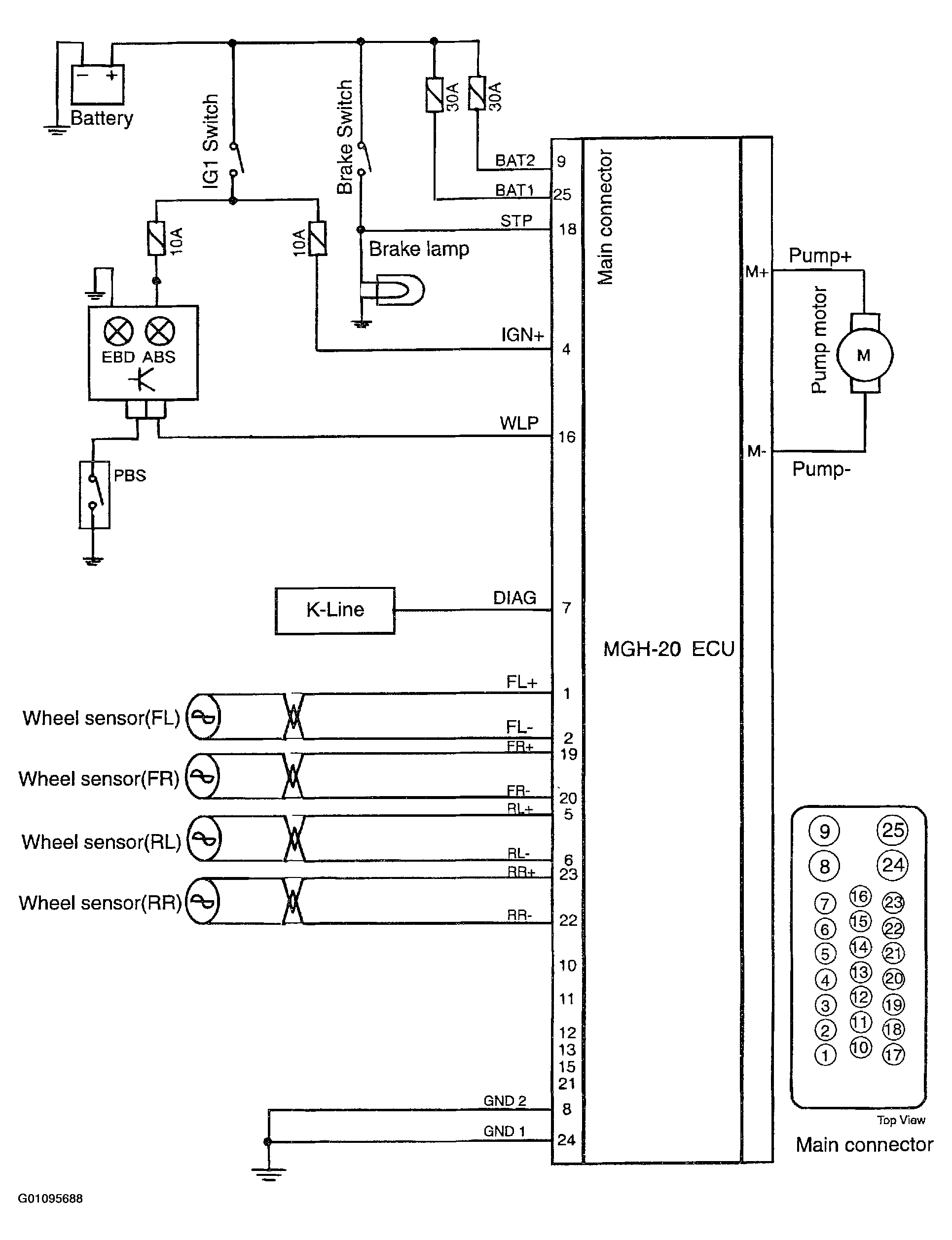

Fig 1: ABS System Wiring Diagram
G01095688Courtesy of KIA MOTORS AMERICA, INC.
