Generator Specifications

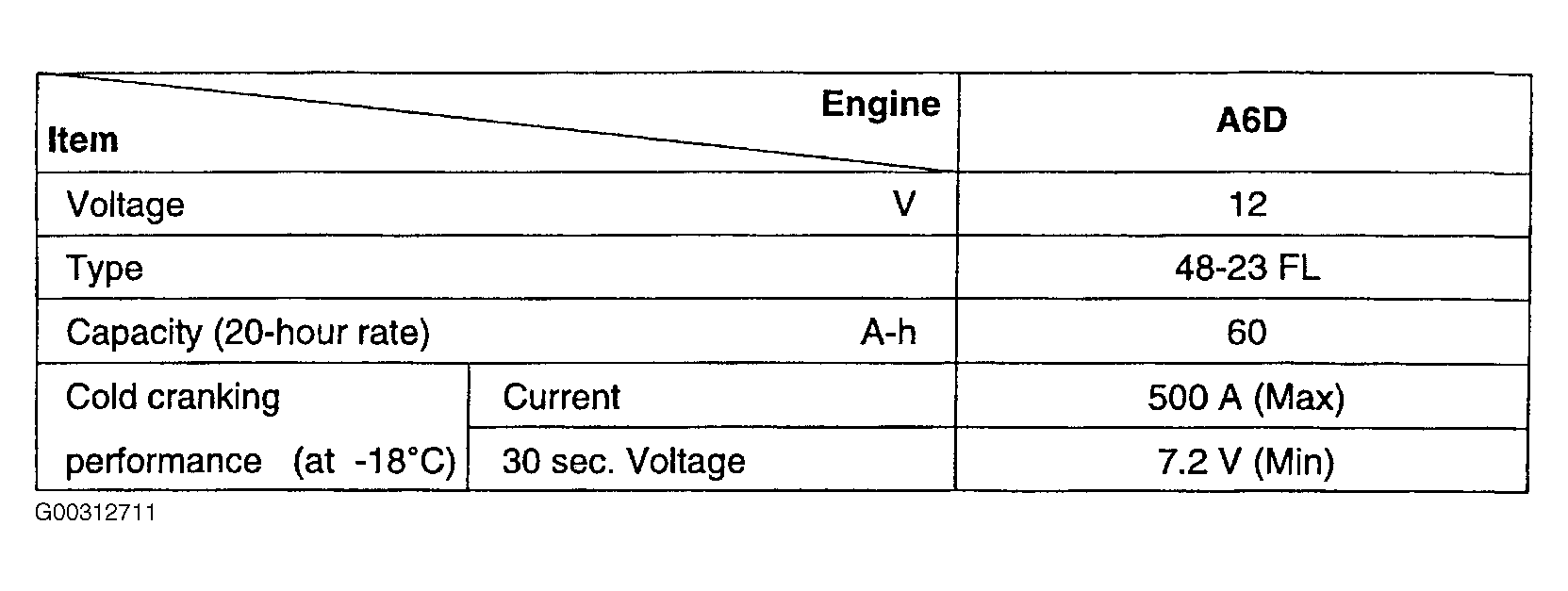

Fig 1: Battery Specifications
G00312711Courtesy of KIA MOTORS AMERICA, INC.

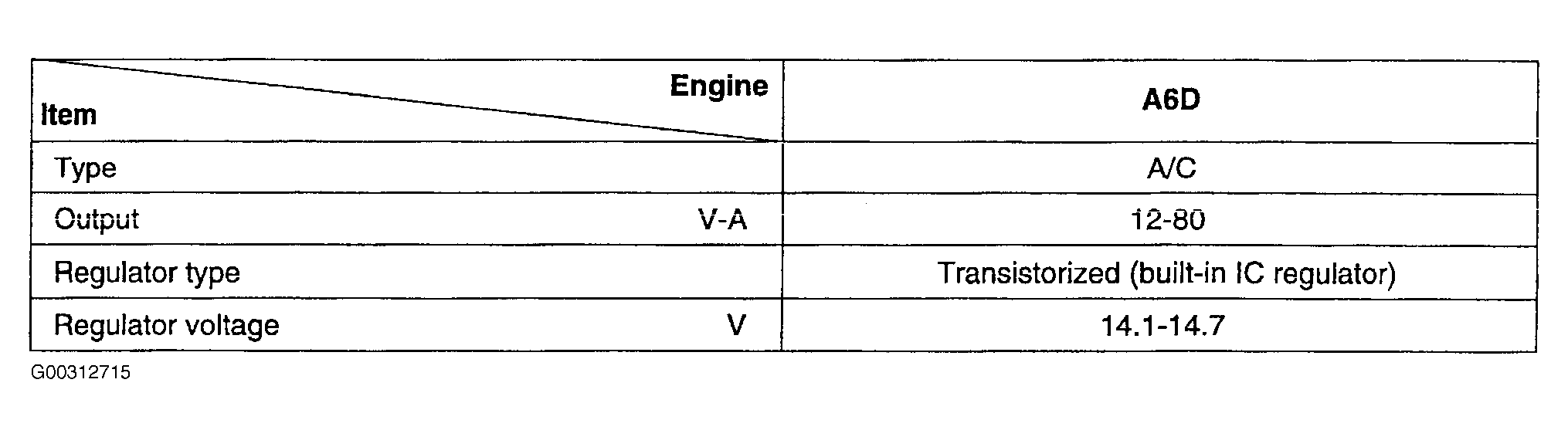

Fig 2: Generator Specifications
G00312715Courtesy of KIA MOTORS AMERICA, INC.
