Generator Disassembly: Rectifier

Check for continuity between each diode with an ohmmeter. See Fig 1 , Fig 2 and Fig 3 .

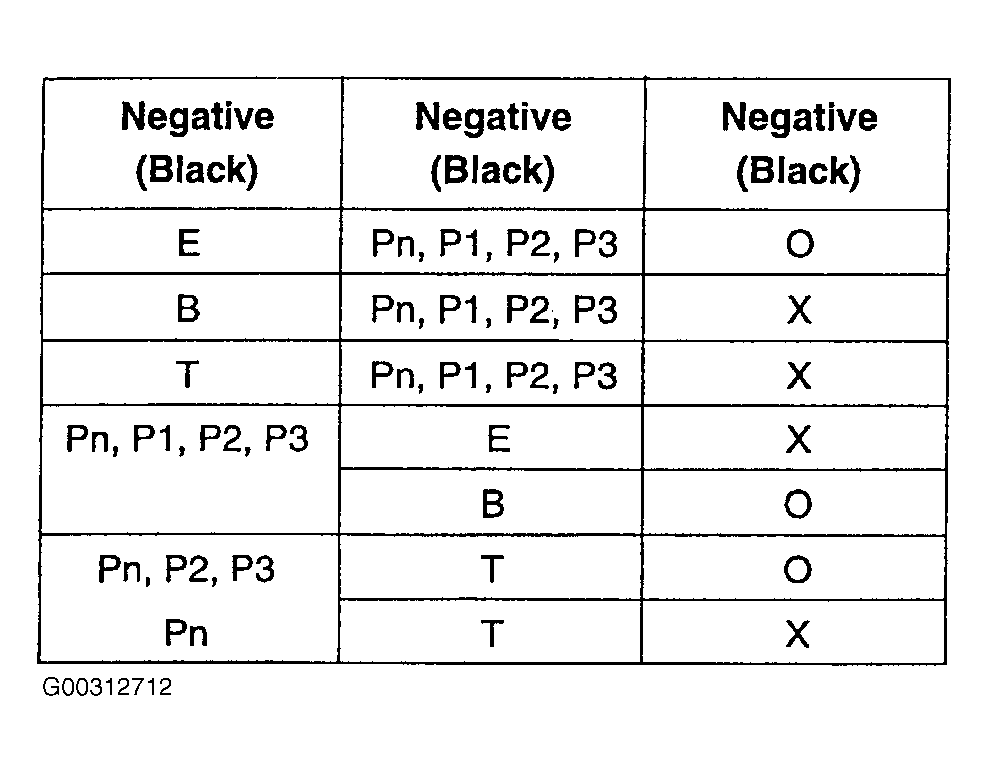

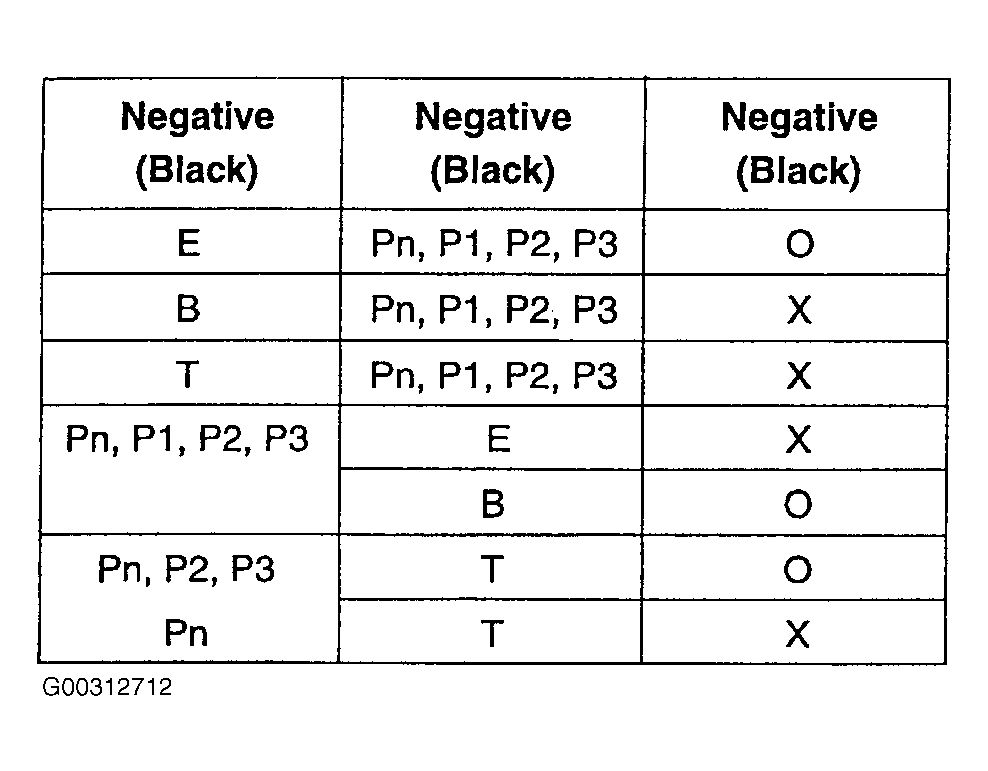

Fig 1: Checking Continuity Between Diode With Ohmeter
Courtesy of KIA MOTORS AMERICA, INC.

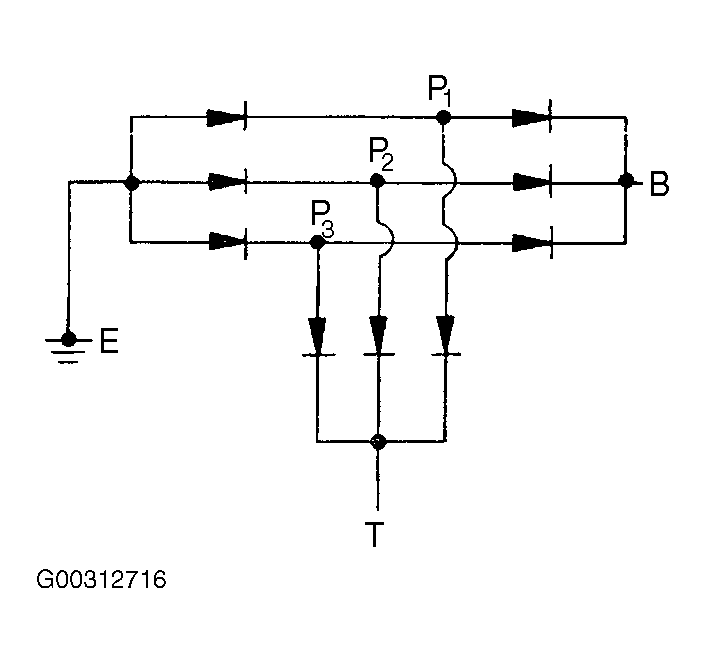

Fig 2: Checking Continuity
Courtesy of KIA MOTORS AMERICA, INC.
Replace if necessary.

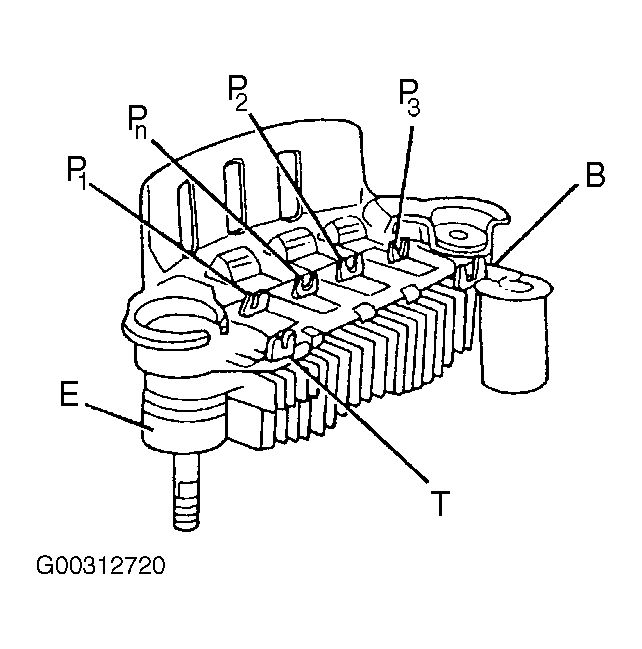

Fig 3: Identifying Diode Test Terminals
Courtesy of KIA MOTORS AMERICA, INC.
