Generator Reassembly

NOTE: Disconnect quickly. If soldering iron is used for more than 5 seconds, rectifier may be damaged by heat.

NOTE: Make sure groove on bearing rim is facing slip ring side.

NOTE: Insert protective material in the jaws of the vise.

Assemble Brush, and solder pigtail so that wear limit line of brush projects. See Fig 1 . 0.079~0.118 in (2~3 mm) out of brush holder.

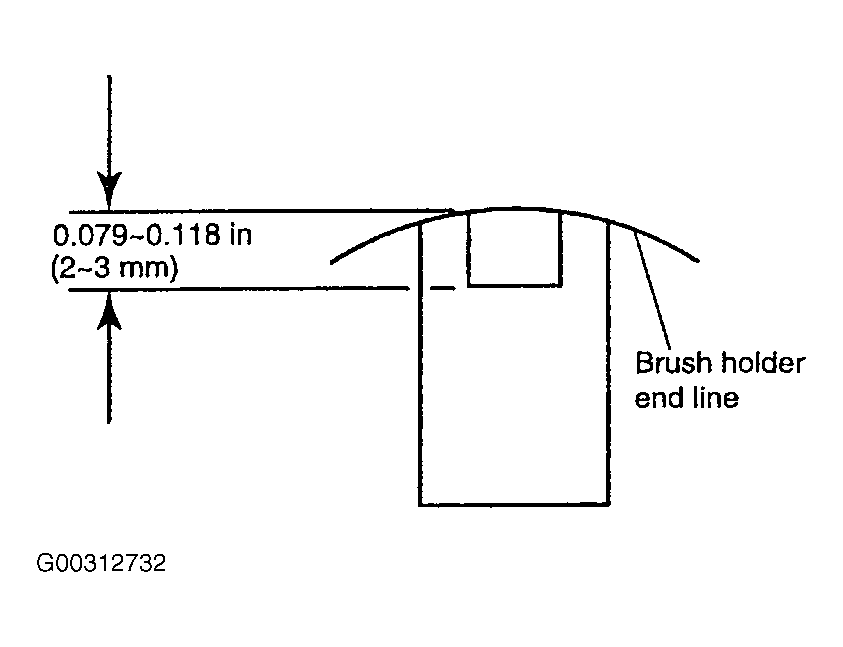

Fig 1: Projection Wear Limit Line
Courtesy of KIA MOTORS AMERICA, INC.
Assemble regulator, and solder with rectifier and stator leads. See Fig 2 .

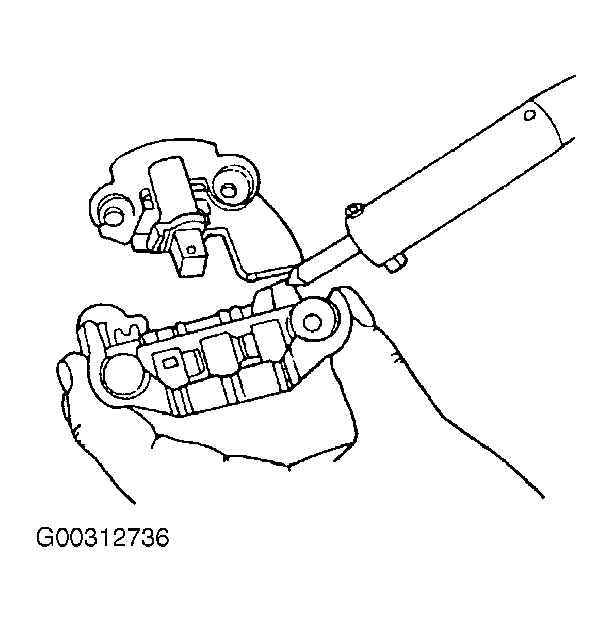

Fig 2: Soldering Rectifier & Stator Leads
Courtesy of KIA MOTORS AMERICA, INC.
Assemble rear bracket and stator.
Tighten screws holding rectifier and brush holder. Tightening torque: 1.5-4.0 lb-ft (2.0-5.4 Nm, 0.2-0.55 kg-m)
Tighten "B" terminal nut and insulating bushing. See Fig 3 .

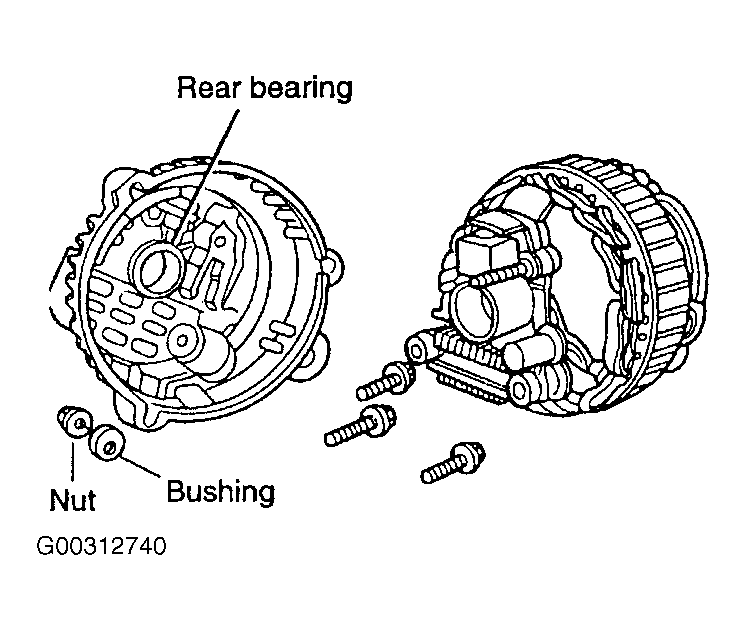

Fig 3: Tighten B Nut
Courtesy of KIA MOTORS AMERICA, INC.
Assemble rear bearing and stopper spring. See Fig 4 .

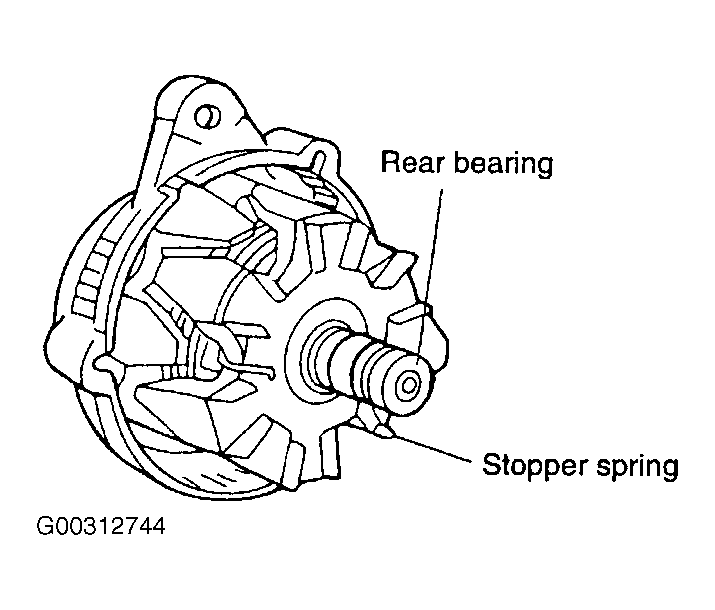

Fig 4: Assembling Rear Bearing & Stopper Ring
Courtesy of KIA MOTORS AMERICA, INC.
Assemble front bearing. See Fig 5 . Using a socket witch exactly fits outer race of bearing, carefully push in front bearing. Use a hand press or a vice.

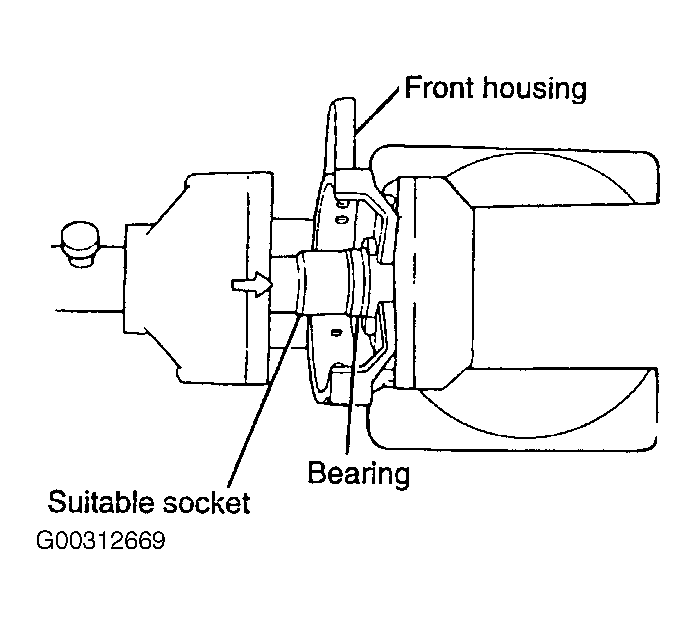

Fig 5: Assembling Front Bearing
Courtesy of KIA MOTORS AMERICA, INC.
