Drive Belt Inspection

Check drive belt and pulley for wear, cracks, and fraying. Replace if necessary.
Measure drive belt tension with a tension gauge. See Fig 1 and Fig 2 .

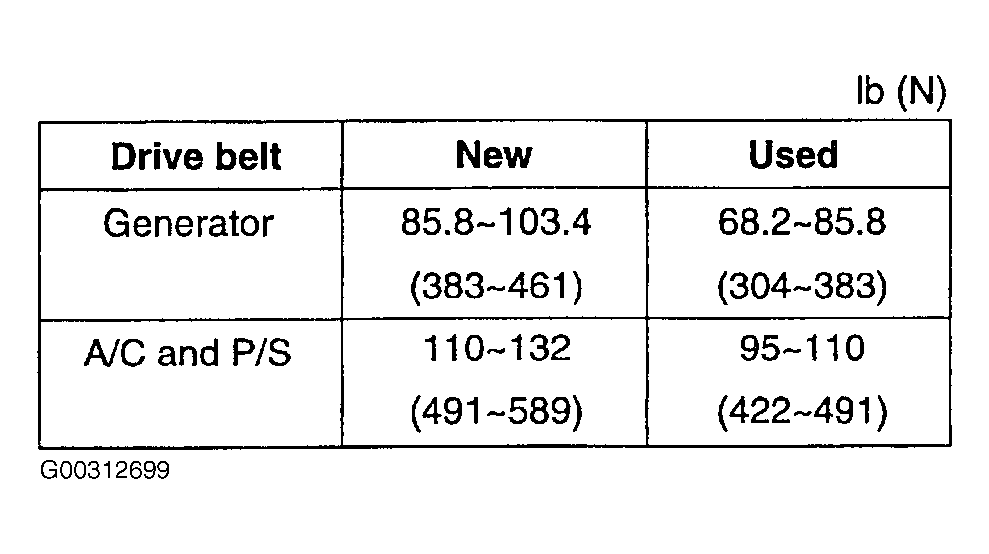

Fig 1: Belt Tension Specifications
Courtesy of KIA MOTORS AMERICA, INC.

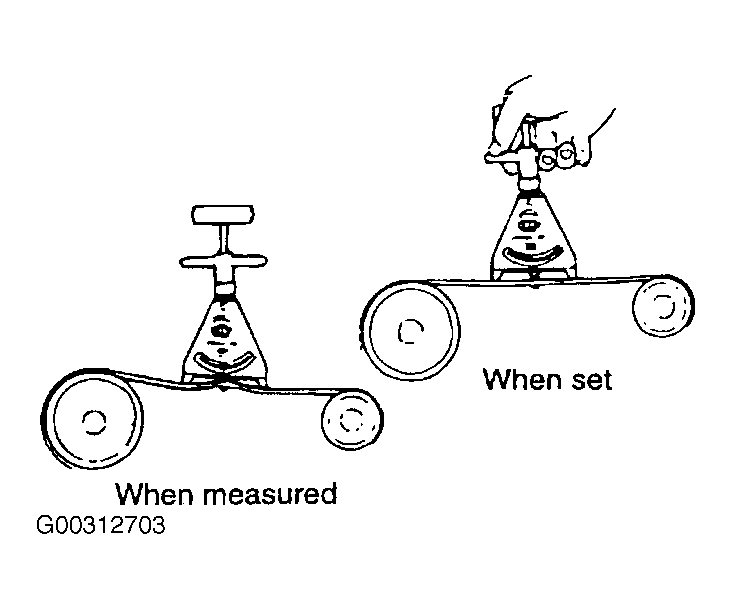

Fig 2: Drive Belt Measured & Set
Courtesy of KIA MOTORS AMERICA INC.
Measure deflection by applying moderate pressure (22 lb [98 N]) midway between pulleys. Adjust if necessary. See Fig 3 .

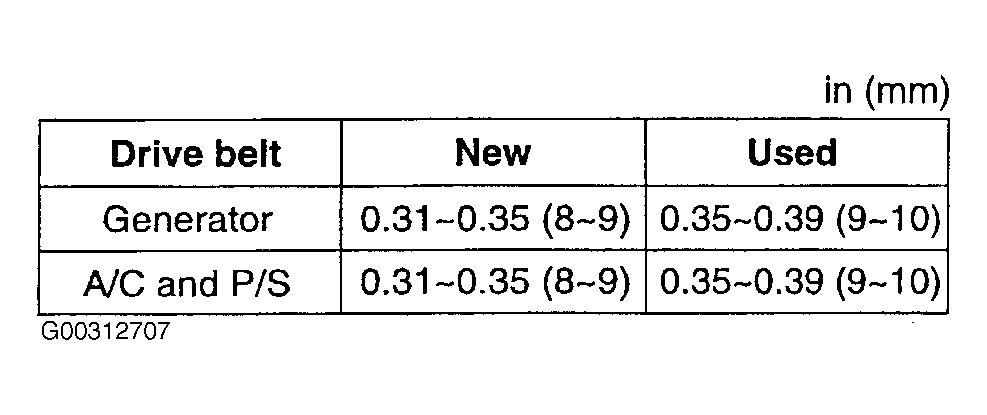

Fig 3: Belt Deflection Specifications
Courtesy of KIA MOTORS AMERICA, INC.
